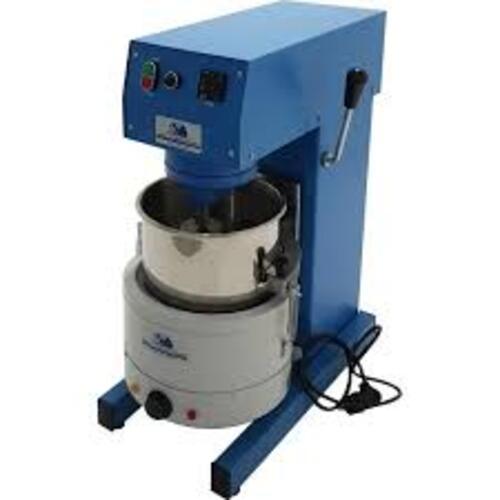

Asphalt Mixers

Name: Asphalt Mixers
Brand: Sami Lab Tek
Price: 40000.0 INR
Availability: InStock

Price 40000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Asphalt Mixers Specification

Measuring Range
5-500 kg

Automation Grade
Semi-Automatic

Operating Voltage
415 V AC

Display Type
Digital

Features
Heavy-duty construction, corrosion resistant

Max Height
1100 mm

Number of Specimens
1 per batch

Equipment Type
Asphalt Mixer

Humidity
10-95% RH

Test Range
Standard and customized

Specimen Size
150 mm diameter, 63 mm height

Application
Preparation and mixing of bitumen, asphalt and aggregates for road construction and laboratory tests

Gas Pressure
6-8 bar

Response Time
< 3 seconds

Port Size
3/4 inch

Frequency
50 Hz

Hardness
Rockwell 60+2

Interface Type
Touch panel

Temperature
5C to 40C

Accuracy
0.1 kg

Mounting Type
Floor standing

Power Supply
415 V, 50 Hz, 3 Phase

Resolution
0.1 kg

Usage
Lab, Industrial

Capacity
20-30 kg/batch

Machine Weight
135 kg

Test Speed
20-60 rpm

Test Width
300 mm

Test Stroke
150 mm

Control Mode
Semi-Automatic

Surface Finish
Powder Coated

Material of Construction
Stainless Steel / Mild Steel

Safety
Overload and overheat protection

Drum Type
Tilting

Mixing Pan Diameter
450 mm

Discharge System
Manual

Heater Type
Electric with thermostat

Noise Level
< 70 dB

Asphalt Mixers Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
100 Pieces Per Month

Delivery Time
7 Days

About Asphalt Mixers

We are offering a high-quality Asphalt Mixer used for preparing uniform asphalt or bitumen mix in road construction and civil engineering laboratories. This equipment is designed to mix aggregates, bitumen, and filler materials efficiently to produce a consistent hot mix sample for testing purposes.

The machine ensures proper blending at controlled temperature and speed, providing accurate and repeatable results. It is widely used in highway construction projects, material testing laboratories, and research institutions. Built with durable materials, it offers long service life, reliable performance, and easy operation.

Product Details

Usage: Asphalt / Bitumen Mixing
Application: Road Construction, Civil Engineering Lab
Material: Mild Steel / Stainless Steel
Feature: Uniform Mixing, Durable, Easy Operation
Operation: Electric / Semi-Automatic
Condition: New

Powerful & Reliable Mixing

Engineered for the demanding requirements of road construction and material testing labs, this Asphalt Mixer features a heavy-duty, corrosion-resistant build. The 450 mm mixing pan, tilting drum, and manual discharge system enable efficient mixing and easy material handling, while low noise operation (<70 dB) ensures a comfortable workspace.

Advanced Heating & Control

Equipped with an electric heater and thermostat, the mixer guarantees uniform temperature control throughout the mixing process. The touch panel digital display offers intuitive monitoring, and semi-automatic controls simplify operation, making it accessible for both experienced professionals and new users.

Precision & Safety Assured

Prioritizing consistent results, this mixer offers high accuracy (0.1 kg) and fast response time (<3 seconds). Built-in overload and overheat protection guard against mishaps, while its powder-coated surface and rugged design ensure long-term use in laboratory or industrial environments.

FAQ's of Asphalt Mixers:

Q: How does the tilting drum design benefit asphalt mixing operations?

A: The tilting drum design allows for easier loading and complete discharge of the mixed material, minimizing residue and simplifying cleanup. Operators can efficiently manage batch processing, which is ideal for labs and small-scale industrial use.

Q: What applications is this asphalt mixer suitable for?

A: This mixer is well-suited for preparing and mixing bitumen, asphalt, and aggregates for road construction projects as well as laboratory material testing. It can handle both standard and customized test ranges, making it versatile for various industry needs.

Q: When should I use the electric heater with thermostat function?

A: The electric heater with thermostat should be used whenever precise and consistent temperature control is required during the mixing process. This is especially important for ensuring quality results when working with temperature-sensitive materials such as bitumen and asphalt.

Q: Where can this asphalt mixer be installed safely?

A: Designed as a floor-standing unit, the mixer can be installed in laboratories or industrial environments, provided there is a compatible 415 V, 3-phase power supply and adherence to standard safety protocols for humidity and temperature (10-95% RH, 5C to 40C).

Q: What is the operational process for using this asphalt mixer?

A: Add the required quantities of materials into the 450 mm pan. Set the digital controls for heating and mixing (20-60 rpm). The drum's tilting and manual discharge system allows smooth unloading. Overload and overheat protection features ensure safe operation throughout the process.

Q: How does the digital display and touch panel improve user experience?

A: The digital display and touch panel provide clear feedback on settings and measurements, allowing for precise control of test speed, temperature, and batch weight. This user-friendly interface ensures quick setup and easy monitoring for both novice and experienced operators.

Q: What are the main benefits of using this asphalt mixer in a laboratory setting?

A: The mixer offers high-precision mixing with repeatable results, robust safety features, and durable construction for extended use. Low noise levels, accurate measurements, and a semi-automatic workflow improve efficiency and safety in lab environments.
