Binder Content -Extractor

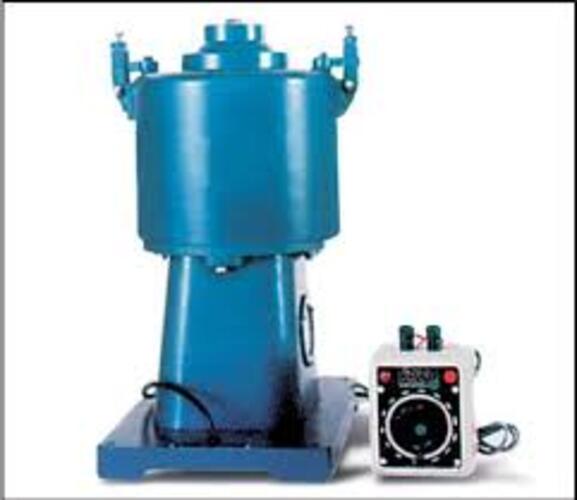

Name: Binder Content -Extractor
Brand: Sami Lab Tek
Price: 10000.0 INR
Availability: InStock

Price 10000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Binder Content -Extractor Specification

Display Type
Analog Dial

Number of Specimens
Single Specimen

Humidity
Ambient

Max Height
50 cm

Automation Grade
Manual

Frequency
50 Hz

Features
Corrosion-resistant, Efficient Drive Mechanism, Easy Cleaning

Mounting Type
Table Top

Interface Type
Mechanical

Accuracy
0.5%

Port Size
Standard

Specimen Size
Up to 1500 gm

Resolution
0.01%

Application
Asphalt and Bitumen Testing

Power Supply
230 V AC, 50 Hz

Equipment Type
Binder Content Extractor

Test Range
Up to 99% Binder Content

Measuring Range
0-100%

Operating Voltage
220-240 V AC

Temperature
Room Temperature

Response Time
Immediate

Usage
Laboratory

Capacity
6 L

Machine Weight
50 kg

Test Speed
Standard

Test Width
100 mm

Control Mode
Manual

Extraction Method
Centrifugal Acceleration Principle

Drum Construction
Perforated Drum, Removable

Supplied With
Filter Papers and Assembly Accessories

Drive Type
Hand Driven (Crank Operated)

Body Material
Stainless Steel

Solvent Type
Suitable for Trichloroethylene / Benzene / Carbon Tetrachloride

Safety Features
Solvent Splash Guard, Secure Lid Lock

Binder Content -Extractor About

We are offering a high-quality Binder Content Extractor used for determining the bitumen or binder content in asphalt and hot mix materials. This equipment is widely used in civil engineering laboratories and road construction quality control to ensure proper mix design and material strength.

The instrument efficiently separates bitumen from aggregates using a centrifugal or extraction process, providing accurate and reliable results. It is easy to operate, durable, and suitable for both laboratory and field applications. Designed with robust construction, it ensures long service life and consistent performance.

Product Details

Usage: Bitumen / Binder Content Testing
Application: Road Construction, Civil Engineering Laboratory
Material: Stainless Steel / Mild Steel
Feature: Accurate, Durable, Easy Operation
Operation: Manual / Semi-Automatic / Motorized
Condition: New

* Binder Content Extractor, Bitumen Extractor, Asphalt Binder Tester, Road Testing Equipment, Civil Lab Equipment, Bitumen Content Testing Machine

Efficient Binder Extraction for Asphalt Testing

Maximize your laboratory's testing precision with our Binder Content Extractor, meticulously designed for determining binder content in asphalt and bitumen samples. Utilizing the centrifugal acceleration principle, this device speeds up the extraction process while ensuring safety and reliable performance. Its compatibility with common solvents and durable stainless steel construction make it an essential instrument for civil and road construction laboratories. The easy-to-clean design and corrosion resistance extend longevity and ensure consistent accuracy.

Robust Construction and Safety First

Built with a stainless steel body and equipped with a secure lid lock and splash guard, this binder extractor is tailored for demanding test environments. The removable perforated drum simplifies cleaning between tests, while its sturdy, table-top design ensures stability during operation. The manual crank operation with analog dial provides immediate readings, giving users clear, accurate results while maintaining total control over the process.

FAQ's of Binder Content -Extractor:

Q: How does the Binder Content Extractor operate?

A: The extractor works on the centrifugal acceleration principle. You hand-crank the mechanism, causing solvent and binder to separate from the asphalt or bitumen specimen inside a removable, perforated drum. Results are displayed immediately on the analog dial.

Q: What types of solvents can be used with this equipment?

A: It is designed for use with trichloroethylene, benzene, and carbon tetrachloride, common solvents in asphalt and bitumen testing. Always ensure proper ventilation and safety protocols when handling these chemicals.

Q: When is this extractor typically used during testing?

A: The Binder Content Extractor is primarily employed during quality control and research phases in laboratories, particularly before and after the preparation of asphalt mixes, to determine the binder percentage.

Q: Where can this equipment be installed and used?

A: It is intended for laboratory use and features a table-top, manual mounting type. Its compact size and standard port make it suitable for most laboratory benches found in civil engineering and road construction facilities.

Q: What is the process for extracting binder content?

A: Simply load a single specimen (up to 1500 gm) into the perforated drum, add the chosen solvent, and operate the crank. The centrifugal force separates the binder, which then passes through the filter papers and assembly accessories for collection and measurement.

Q: What are the benefits of using this extractor in testing laboratories?

A: Key benefits include high extraction efficiency, precise binder quantification up to 99%, robust corrosion-resistant construction, immediate results, and user safety features such as the secure lid lock and solvent splash guard.

Q: How easy is it to maintain and clean the equipment?

A: Maintenance is straightforward due to the removable perforated drum and corrosion-resistant stainless steel body. Cleaning can be done quickly after each use, ensuring ongoing accuracy and equipment longevity.
