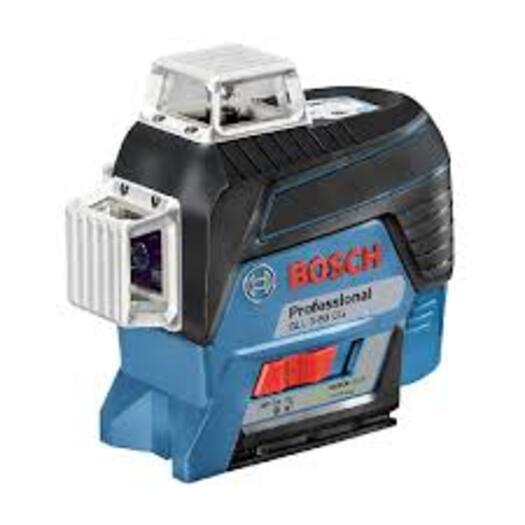

Bosch Line Laser Level GLL 3-80 , Working range: 50 m

Name: Bosch Line Laser Level GLL 3-80 , Working range: 50 m
Brand: Sami Lab Tek
Price: 45000.0 INR
Availability: InStock

Price 45000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Bosch Line Laser Level GLL 3-80 , Working range: 50 m Specification

Tripod Thread
1/4" and 5/8"

Dimensions (LxWxH)
159 x 75 x 141 mm

Working Range
50 m

Power Supply
4 x 1.5 V LR6 (AA)

Leveling Accuracy
0.3 mm/m

Product Name
Bosch Line Laser Level GLL 3-80

Dust and Splash Protection
IP54

Projection
3 x 360 lines

Weight
0.82 kg

Self Leveling Range
4

Mounting Options
Magnetic, tripod mount

Laser Class
2

Laser Diode
630 - 650 nm, < 1mW

Operating Temperature
-10 - 40C

Model
GLL 3-80

Storage Temperature
-20 - 70C

Battery Lifetime
Up to 4 hours in all line mode

About Bosch Line Laser Level GLL 3-80 , Working range: 50 m

Bosch Line Laser Level GLL 3-80 Product Description (50 m Working Range)

The Bosch GLL 3-80 Line Laser Level is a professional-grade multi-line laser measuring instrument designed for precise horizontal and vertical alignment work in construction and interior applications. It projects three 360 laser lines, allowing full-room leveling from a single setup point.

With a working range of up to 50 m (and more with receiver, depending on configuration), it is ideal for medium to large indoor job sites where high accuracy and fast layout marking are required.

Key Features

3 360 Laser Lines
Projects one horizontal and two vertical lines for complete room coverage
High Working Range (up to 50 m typical use)
Suitable for indoor layout and medium-range construction tasks
Self-Levelling Function
Automatically levels within a few seconds for quick setup
High Precision
Ensures accurate alignment for tiles, partitions, ceilings, and frameworks
Compact & Robust Design
Built for job-site durability with dust and splash resistance (IP-rated depending on model)
Easy Operation
Simple controls for fast switching between modes

Technical Specifications

Laser Type: 3 360 line laser
Working Range: Up to 50 m (with receiver higher range possible depending on variant)
Accuracy: Approx. 0.2 to 0.3 mm/m (variant dependent)
Self-Levelling Range: 4
Levelling Time: 4 seconds
Power Supply: AA/AAA batteries (variant dependent)
Projection: Horizontal + 2 vertical 360 lines

Applications

Ceiling and false ceiling installation
Flooring and tiling work
Wall partition alignment (drywall)
Door/window installation
Interior layout marking
General construction leveling work

Advantages

Covers full room layout in one setup
Fast and accurate leveling
Reduces manual measurement errors
Ideal for professional interior contractors

Short TradeIndia-Style Summary

The Bosch GLL 3-80 Line Laser Level is a high-precision 3360 laser tool designed for accurate indoor leveling and alignment tasks up to 50 m working range. It ensures fast self-leveling, excellent visibility, and reliable performance for construction and interior finishing work.

Comprehensive 3 x 360 Projections

The GLL 3-80 enables simultaneous horizontal and vertical laser projections for efficient layout work across entire rooms. With three 360-degree lines, you can easily align floors, walls, and ceilings-streamlining complex installations and reducing setup times.

Engineered for Site Durability

Built with robust IP54-rated housing, the Bosch GLL 3-80 withstands dust and water splashes, making it ideal for demanding environments. Its operational temperature range of -10C to 40C and storage tolerance up to 70C ensure reliability in varied Indian climates.

Flexible Mounting and Operation

Featuring magnetic and tripod mounting options (1/4" and 5/8" threads), this laser level adapts effortlessly to different jobsite requirements. Its lightweight design and easy-to-understand interface make it accessible to both professionals and experienced DIY users.

FAQ's of Bosch Line Laser Level GLL 3-80 , Working range: 50 m:

Q: How does the Bosch GLL 3-80 achieve precise leveling on various surfaces?

A: The GLL 3-80 utilizes an advanced self-leveling mechanism within a 4 range, combined with high-visibility laser diodes that project three 360 lines. This allows for remarkably precise alignment with an accuracy of 0.3 mm per meter, even over a working distance of up to 50 meters.

Q: What mounting options are available for the Bosch GLL 3-80 during installation?

A: You can mount the GLL 3-80 using magnetic fixtures on metal surfaces or utilize the 1/4-inch and 5/8-inch tripod threads provided. These options allow for secure positioning at different heights and orientations to suit a wide range of leveling and alignment tasks.

Q: When should I replace the batteries in the Bosch GLL 3-80 for optimal performance?

A: For the best results, it is recommended to replace the 4 AA batteries once you notice a reduction in laser brightness or after approximately 4 hours of continuous all-line operation. Always use high-quality 1.5V LR6 (AA) batteries for reliable performance.

Q: Where can the Bosch GLL 3-80 be effectively used in India?

A: This line laser level is suitable for indoor and outdoor settings across Indian construction sites, workshops, and home improvement projects. Its IP54 protection and broad temperature ranges ensure dependable operation from urban job sites to rural locations.

Q: What process should I follow to maintain the GLL 3-80 in top condition?

A: Regularly clean the laser windows and body with a soft, dry cloth to prevent dust buildup. Store the unit within the temperature range of -20C to 70C when not in use, and avoid exposure to harsh impacts or continuous water exposure beyond its IP54 rating.

Q: How does using the GLL 3-80 benefit professional contractors and DIY users?

A: The GLL 3-80 offers rapid setup, highly visible 360 laser lines, and adaptable mounting, saving time and effort on alignment tasks. Its accuracy and ease of operation enhance productivity, ensuring consistently reliable results for diverse leveling applications.
