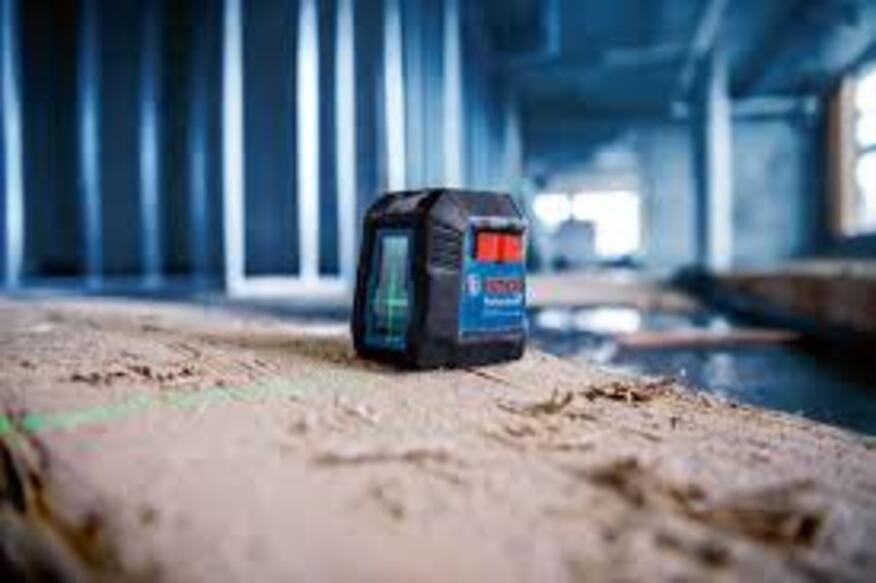

Bosch Line Laser Level GLL 3-80CG

Name: Bosch Line Laser Level GLL 3-80CG
Brand: Sami Lab Tek
Price: 55000.0 INR
Availability: InStock

Price 55000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Bosch Line Laser Level GLL 3-80CG Specification

Leveling Accuracy
0.2 mm/m

Weight
0.9 kg

Tripod Thread
1/4" and 5/8"

Laser Diode(s)
Green laser, 500-540 nm, <10 mW

Bluetooth Connectivity
Yes, via Bosch Leveling Remote App

Number of Laser Lines
3 (1 horizontal, 2 vertical, 360 coverage)

Operating Time
Up to 8 h (all lines, Li-ion battery)

Storage Temperature Range
-20 C to +70 C

Dimensions
129 x 82 x 117 mm

Working Range
Up to 30 m (without receiver)

Self-Leveling Time
Less than 4 seconds

Laser Class
2

Operating Temperature Range
-10 C to +40 C

IP Rating
IP54

Mounting Options
Compatible with RM 3 Professional, BM 1, and Tripod

Working Range with Receiver
Up to 120 m

Power Supply
12V lithium-ion battery or 4 x AA batteries

Self-Leveling Range
4

Model
GLL 3-80 CG

About Bosch Line Laser Level GLL 3-80CG

The Bosch GLL 3-80 CG Line Laser Level is a professional high-precision 3 x 360 green line laser tool designed for advanced horizontal and vertical alignment in construction, interior finishing, and layout applications. It provides full-room coverage with a single setup, making it highly efficient for large-scale interior and site work.

This model features high-visibility green laser technology, offering up to four times better visibility than red lasers, making it suitable for bright indoor environments and demanding job-site conditions.

Key Features

3 360 Green Laser Lines for complete room layout coverage
High Visibility Green Beam up to 4 better visibility than red laser
Working Range up to 30 m (up to 120 m with receiver)
High Accuracy 0.2 mm/m for precise professional alignment
Self-Levelling System (4 range) for quick and automatic setup
Fast Levelling Time (4 seconds) for efficient operation
Bluetooth Connectivity for remote control and adjustment via mobile app
IP54 Protection against dust and water splashes
Dual Power Supply (12V Li-ion / AA batteries) for flexible usage
Rugged Job-Site Build designed for construction durability

Technical Specifications

Laser Type: Green line laser (Class 2)
Projection: 3 360 laser lines
Working Range: 30 m (up to 120 m with receiver)
Accuracy: 0.2 mm/m
Self-Levelling Range: 4
Levelling Time: 4 seconds
Power Supply: 12V Li-ion battery / 4 AA batteries
Protection: IP54
Weight: approx. 0.9 kg

Applications

Full-room interior layout marking
Ceiling and false ceiling installation
Wall partition and drywall alignment
Flooring and tiling work
Window and door frame installation
Professional construction and renovation projects

Precision with Green Laser Technology

Equipped with a green laser diode operating at 500-540 nm, the GLL 3-80CG delivers brighter and more visible laser lines compared to red lasers, especially under well-lit conditions. This increased visibility supports higher accuracy and ease of use over extended working ranges, making layout tasks more efficient on busy worksites.

Flexible Power and Sturdy Design

The device runs on a powerful 12V lithium-ion battery or standard AA batteries, delivering up to 8 hours of operation with all lines active. Its IP54-rated durable casing resists dust and water, ensuring reliability in challenging jobsite environments. The ergonomic design allows easy mounting on tripods or wall brackets for consistent performance.

Smart Connectivity and Mounting Options

Utilize Bluetooth connectivity to pair with the Bosch Leveling Remote app, enabling easy adjustments and line selection from a distance. The GLL 3-80CG is compatible with RM 3 Professional, BM 1 mounts, and both 1/4" and 5/8" tripod threads-delivering adaptability for a range of leveling or alignment applications.

FAQ's of Bosch Line Laser Level GLL 3-80CG:

Q: How do I set up and operate the Bosch GLL 3-80CG laser level?

A: Simply mount the device using a compatible tripod or bracket, switch it on, and the unit will auto-level within four seconds. Select the desired laser lines manually or remotely using the Bosch Leveling Remote app via Bluetooth.

Q: What benefits does the green laser offer compared to red lasers?

A: Green lasers are up to four times more visible than red ones, making them far easier to see in bright indoor or outdoor light, ensuring enhanced accuracy and speed while working at longer distances.

Q: When should I use the receiver with this laser level?

A: A receiver (sold separately) is recommended when working outdoors or in expansive areas, as it extends the working range up to 120 meters. This ensures the laser lines remain visible and accurate even over great distances.

Q: Where can I use the Bosch GLL 3-80CG for optimum results?

A: This line laser level excels in applications such as layout of walls, ceilings, tile work, partitioning, or cabinetry, whether indoors or outdoors, and under a wide temperature range from -10C to +40C.

Q: What process should I follow for battery replacement or recharging?

A: You can power the tool using either the supplied 12V lithium-ion battery for extended use or standard AA batteries. For the rechargeable battery, detach and charge it as per the provided instructions to ensure uninterrupted operation.

Q: Does the GLL 3-80CG support both vertical and horizontal marking?

A: Yes, with its three 360 laser lines-one horizontal and two vertical-it allows you to execute full room layouts, achieve perfect right angles, and handle complex alignment tasks across floors, ceilings, and walls.
