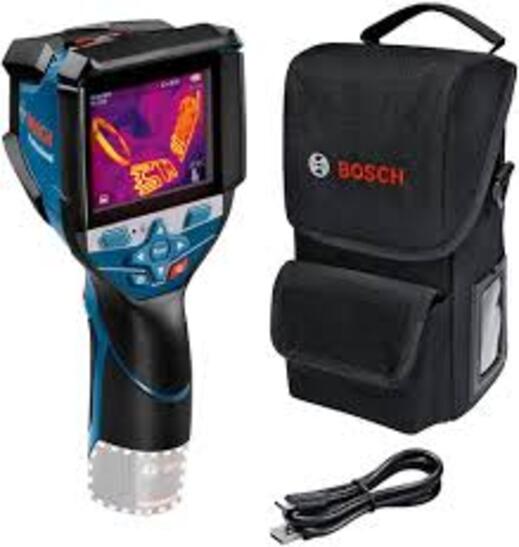

Bosch Thermal Camera GTC 600 C

Name: Bosch Thermal Camera GTC 600 C
Brand: Sami Lab Tek
Price: 80000.0 INR
Availability: InStock

Price 80000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Bosch Thermal Camera GTC 600 C Specification

Measurement Accuracy
2 C or 2% of reading

Thermal Sensitivity (NETD)
<40 mK

Display Size
3.5 inch color display

Storage Capacity
8 GB (up to 650 images)

Data Transfer
USB-C, Wi-Fi

Temperature Range (detailed)
-20 C to +600 C

Image Format
.jpg with associated thermal image data

Operating Time
Up to 6 hours (with 12V battery)

Power Supply
Compatible with 12V Li-ion battery or AA battery adapter

Infrared Sensor Resolution
256 x 192 pixels

Laser Pointer
Class 2

IP Protection Class
IP54

Field Of View
53 x 43

About Bosch Thermal Camera GTC 600 C

The Bosch GTC 600 C Thermal Camera is a professional high-resolution thermal imaging device designed for accurate visualization of temperature differences in buildings, electrical systems, and industrial equipment. It helps users quickly identify heat loss, insulation defects, moisture issues, and overheating components by producing detailed thermal images.

This advanced camera is widely used by electricians, HVAC technicians, building inspectors, and maintenance professionals for precise diagnostics and documentation.

Key Features

High-Resolution Thermal Imaging (256 192 pixels) for detailed temperature analysis
Temperature Measurement Range: -20C to +600C for wide application coverage
High Thermal Sensitivity (NETD 50 mK) for detecting small temperature differences
Large 3.5 Colour Display for clear image viewing
Wi-Fi & USB-C Connectivity for fast data transfer and reporting
Voice Note Function for easy on-site documentation
Built-in Camera + Thermal Overlay for better visualization
IP54 Protection against dust and water splashes
2 m Drop Resistance for rugged job-site use

Technical Specifications

Thermal Resolution: 256 192 pixels
Temperature Range: -20C to +600C
Accuracy: 2.0C
Display Size: 3.5 inch
Image Storage: Up to 600 thermal images
Data Transfer: Wi-Fi / USB-C
Power Supply: 12V Bosch Li-ion system
Protection Class: IP54
Weight: approx. 0.6 kg

Applications

Electrical panel inspection and fault detection
HVAC system analysis and maintenance
Building insulation and energy loss detection
Water leakage and moisture detection
Industrial machine overheating checks
Preventive maintenance and diagnostics

Advantages

High-quality thermal imaging for accurate diagnostics
Easy documentation with app connectivity
Detects hidden problems without dismantling systems
Fast and reliable on-site inspection tool
Rugged design suitable for construction environments

Advanced Thermal Imaging Technology

The Bosch GTC 600 C features a professional-grade 256 x 192 pixel infrared sensor and a precision laser pointer, enabling users to detect temperature differences with exceptional clarity. Its thermal sensitivity of <40 mK allows identification of subtle anomalies, while the wide field of view ensures comprehensive coverage in each inspection.

Durable and Versatile Operation

Rated IP54 for dust and splash protection, the Bosch GTC 600 C is designed for resilience on Indian job sites. It operates efficiently between -20C to +600C and supports up to 6 hours of use on a single Bosch 12V battery or an AA adapter, delivering flexibility whether on the move or working extended shifts.

FAQ's of Bosch Thermal Camera GTC 600 C:

Q: How can I transfer thermal images from the Bosch GTC 600 C to my computer or mobile device?

A: Thermal images captured with the Bosch GTC 600 C can be transferred via USB-C cable or using built-in Wi-Fi connectivity. The .jpg files include thermal data and are easily managed with compatible Bosch software or standard viewing applications.

Q: What is the benefit of the 256 x 192 pixel infrared sensor resolution?

A: The high-resolution infrared sensor ensures sharp, detailed thermal images, helping users pinpoint heat loss, electrical faults, and insulation issues with precision, thus reducing diagnostic time and improving efficiency.

Q: Where can I use the Bosch GTC 600 C thermal camera in India?

A: This thermal camera is suitable for use in industrial, commercial, and construction environments across India. Its IP54 rating and robust build make it ideal for on-site inspections in harsh or dusty conditions.

Q: What is the process for powering the Bosch GTC 600 C?

A: The device is compatible with Bosch's 12V Li-ion battery for extended use or an AA battery adapter for added convenience. Simply install the desired power source, and the camera is ready for operation.

Q: When should I use the thermal camera's laser pointer feature?

A: The Class 2 laser pointer helps precisely indicate the area being measured in real-time, particularly in locations that are difficult to reach or have multiple inspection points, enhancing measurement accuracy and documentation.

Q: How does the Bosch GTC 600 C support long-term data storage?

A: With its 8GB internal memory, the camera can store up to 650 images, allowing users to archive extensive inspection data and access it even without immediate access to external storage devices.
