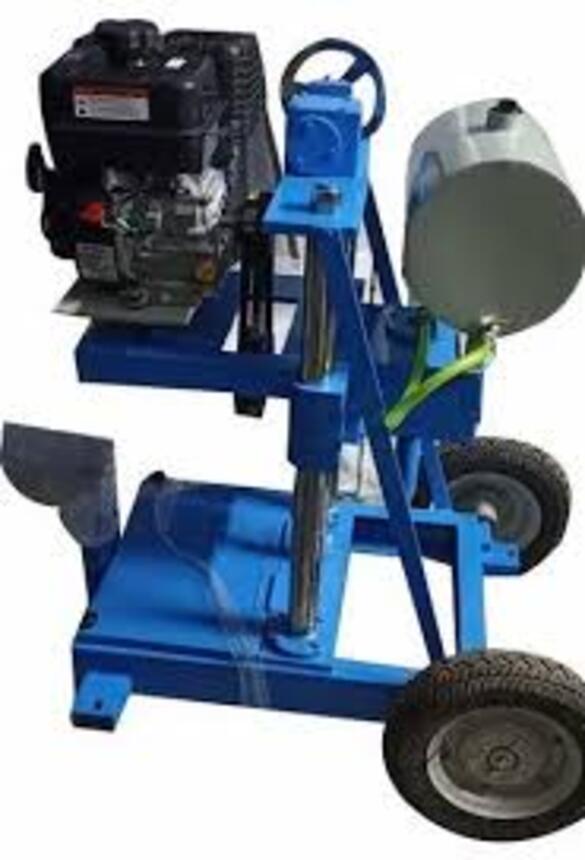

Concrete Core Cutting Machine In Petrol

Name: Concrete Core Cutting Machine In Petrol
Brand: Sami Lab Tek
Price: 125000.0 INR
Availability: InStock

Price 125000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Concrete Core Cutting Machine In Petrol Specification

Lifting Speed
Manual Raising/Lowering

Motor Power
Petrol Engine 6.5 HP

Surface
Powder Coated

Lifting Height
Up to 500 mm

Product Type
Concrete Core Cutting Machine

General Use
Core drilling/cutting in concrete structures

Material
Heavy Duty Mild Steel

Type
Portable, Floor Mounted

Capacity
Core Drill Diameter up to 250 mm

Weight (kg)
Approx. 130 kg

Computerized
No

Automatic
Manual/Hand Lever

Control System
Lever/Hand-wheel Operated

Cooling System
Water-cooled (water feed system)

Method
Rotary Core Cutting

Voltage
Not Applicable (Petrol Engine Driven)

Dimension (L*W*H)
1200 x 600 x 950 mm

Feature
Rigid Frame, Adjustable Base, Robust Construction

Color
Blue/Yellow/Black (Varies by Manufacturer)

Fuel Type
Unleaded Petrol

Max Cutting Depth
Up to 500 mm

Drive
Petrol Engine Driven

Core Bit Fitting
Standard Threaded Adaptors

Starter
Recoil Start

Mounting
Wheel Mounted for Site Mobility

Vibration Level
Low for Operator Comfort

Water Tank Provided
Yes (External attachment possible)

Noise Level
Within Safe Limit

Cutting Precision
High

Application Sites
Construction, Road, Bridge, Building Maintenance

About Concrete Core Cutting Machine In Petrol

Concrete Core Cutting Machine (Petrol Operated) is a robust and portable equipment used for extracting cylindrical core samples from concrete, asphalt, rocks, and pavements. It is widely used in construction sites, highways, bridges, and material testing laboratories for strength and quality evaluation.

The machine is powered by a petrol engine, making it ideal for remote locations where electricity is not available. It consists of a rigid base frame, vertical column, drill head assembly, and water cooling system for efficient and dust-free cutting.

The drilling is performed using diamond core bits, which ensure smooth and accurate cutting of hard materials. The machine is mounted on wheels for easy movement and positioning at site locations.

Key Features

Petrol engine driven suitable for field operations
High drilling efficiency with powerful torque
Portable design with wheel-mounted base
Compatible with diamond core drill bits
Water cooling system for dust suppression and bit life
Easy operation and maintenance

Technical Specifications

Core Diameter Capacity: Up to 150 mm 200 mm
Drilling Depth: Up to 300 mm 450 mm
Engine Power: 5 HP 6.5 HP petrol engine
Speed: Approx. 350 900 RPM
Power Source: Petrol (independent operation)
Mounting: Wheel-mounted portable frame
Cooling: Water feed system

Petrol core drilling machines are preferred for on-site applications because they provide mobility and independence from electrical supply

Applications

Concrete core sampling for compressive strength testing
Road and pavement evaluation
Bridge and structural inspection
Asphalt and rock core drilling
Quality control in construction projects

Working Principle

The machine uses a rotating diamond core bit driven by a petrol engine. The bit cuts into the concrete while water is supplied for cooling. The cylindrical core sample is extracted for further laboratory testing.

Engineered for Mobility and Performance

Optimally built for construction sites, this concrete core cutting machine features a petrol engine for unrestricted use, maximizing flexibility and eliminating dependence on electrical sources. Its wheel-mounted design supports easy relocation across uneven terrain, while the recoil start offers quick, reliable ignition even in remote areas. This machine sets itself apart with a sturdy mild steel construction that withstands harsh working environments.

Precision Drilling and Operator Comfort

Enjoy high-precision cutting thanks to the standard threaded adaptors and adjustable base. A low-vibration system minimizes user fatigue during extended operation, and noise levels stay within a safe threshold. Manual raising and lowering give operators full control over drilling depth up to 500mm, improving results and ensuring each job meets specification. The external water tank attachment maintains cooling, further ensuring long-term durability.

FAQ's of Concrete Core Cutting Machine In Petrol:

Q: How does the petrol engine-driven core cutting machine operate without electrical power?

A: The machine runs on a powerful 6.5 HP petrol engine, eliminating the need for electrical connections. Recoil start ensures it can be operated on sites without electricity, increasing versatility and mobility for construction, road, bridge, and building maintenance applications.

Q: What is the maximum cutting depth and core drill diameter this machine can achieve?

A: This core cutting machine can achieve up to 500 mm in cutting depth and supports core drill diameters up to 250 mm, making it suitable for a wide range of concrete drilling and cutting tasks in various construction projects.

Q: When should I use the external water tank attachment?

A: The external water tank attachment is recommended during longer or deeper cutting operations to ensure adequate cooling. The built-in water feed system helps maintain cutting precision, prolongs the life of the core bit, and reduces dust and debris.

Q: Where can this concrete core cutting machine be effectively utilized?

A: It is ideal for use on construction sites, roadworks, bridge construction, and building maintenance due to its portability, sturdy design, and adaptability to different environments. The wheel-mounted frame allows easy movement between job sites.

Q: What steps are involved in operating the machine for core cutting?

A: Start by securely mounting the machine and attaching the desired core bit. Connect the water supply if necessary, start the engine using the recoil starter, then manually raise or lower the drill using the lever and hand-wheel. Operate the machine steadily to achieve safe and precise cuts.

Q: What are the main benefits of choosing this petrol-driven core cutting machine?

A: Key benefits include site mobility, high cutting precision, low operator fatigue due to minimal vibration, robust construction, and independence from electrical power. Its user-friendly controls and water-cooling system ensure long-lasting performance and safety.
