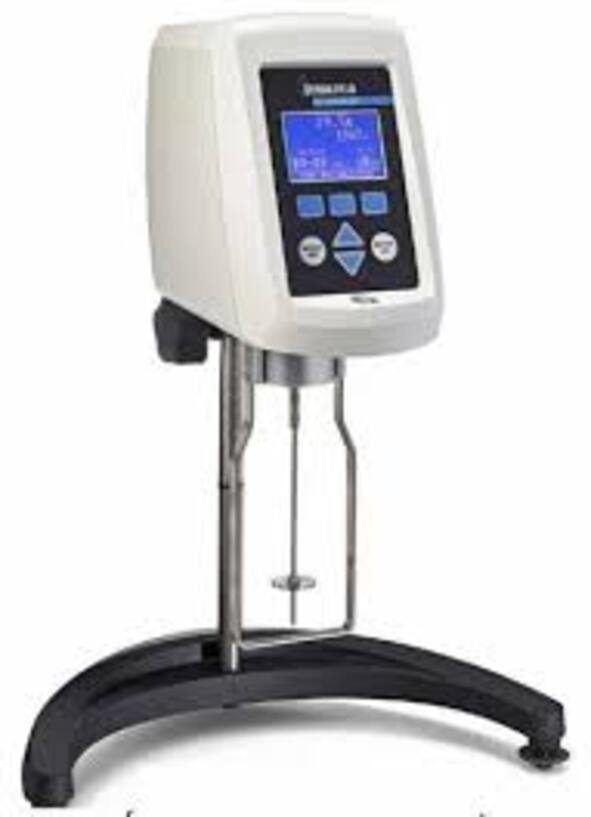

Send InquiryDigital Viscometer
Price 55000.0 INR/ Unit
MOQ : 1 Unit
Digital Viscometer Specification
- Response Time
- Immediate (Real-time measurement)
- Mounting Type
- Bench-top
- Resolution
- 0.01 mPas
- Measuring Range
- Depending on model and rotor: typically 1 to 2,000,000 mPas
- Application
- Viscosity measurement of liquids in laboratories, chemical, pharmaceutical industries, etc.
- Automation Grade
- Semi-automatic
- Test Range
- 1 ~ 2,000,000 mPas (Depending on model/rotor)
- Features
- Auto-range, overload alarm, temperature probe input (Model dependent)
- Number of Specimens
- 1
- Interface Type
- RS232 or USB (Model dependent)
- Accuracy
- 1.0% of full scale
- Power Supply
- 220V AC, 50Hz
- Operating Voltage
- 220V AC
- Frequency
- 50Hz
- Humidity
- 80% RH
- Max Height
- Approx. 400 mm (instrument with stand)
- Specimen Size
- Sample volume 20~30 ml (typical)
- Temperature
- 5C to 35C
- Equipment Type
- Digital Viscometer
- Display Type
- Digital LCD display
- Usage
- Laboratory, R&D, industrial QC testing
- Machine Weight
- 7 kg
- Test Speed
- 6, 12, 30, 60 rpm
- Control Mode
- Digital control with microprocessor
- Calibration
- User-friendly calibration via control panel
- Instrument Dimensions
- 380 x 320 x 470 mm
- Accessories Included
- Stand, rotor set, power cord, operation manual
- Material of Construction
- Stainless steel construction for wetted parts
- Protection Features
- Motor over-torque and overload protection
- Rotor Specifications
- Standard supply with 4 rotors (No.1 to No.4)
- Viscosity Units
- mPas (cP)
- Power Consumption
- 15 W
- Data Output
- Supports direct data print or PC connectivity
Digital Viscometer About
The Digital Viscometer is a precision laboratory instrument used to measure the viscosity of liquids and semi-solid materials with high accuracy. It is widely used in industries such as pharmaceuticals, chemicals, food processing, cosmetics, and petroleum for quality control and research applications.
The instrument operates using a rotating spindle immersed in the sample fluid. The resistance to rotation (torque) is measured and converted into viscosity units, which are displayed digitally for easy reading and analysis.
Key Features
- High accuracy and repeatability in viscosity measurement
- Digital display for real-time readings
- Wide viscosity measurement range
- User-friendly interface with simple controls
- Multiple spindle options for different viscosity ranges
- Compact and robust design for laboratory use
Technical Specifications
- Measuring Range: Typically 1 cP to 1,00,000 cP (varies by model)
- Speed Range: Multiple RPM settings
- Accuracy: 1% (model dependent)
- Power Supply: 220240V AC, 50 Hz
- Display: LCD / LED digital display
Applications
- Pharmaceutical formulations
- Paints, coatings, and inks
- Food and dairy products
- Petrochemical and lubricants testing
- Cosmetics and personal care products
Optional Variants
- Rotational Digital Viscometer
- Brookfield-type Digital Viscometer
- Touchscreen Digital Viscometer with data logging
High-Precision Digital Viscosity Measurement
Our Digital Viscometer is designed for effortless and accurate determination of liquid viscosity, catering to laboratory, pharmaceutical, chemical, and R&D settings. With broad compatibility across specimen volumes and an intuitive control panel, users can switch between four rotors to cover extensive viscosity ranges. Sample integrity is protected by stainless steel wetted parts, while the benchtop design ensures space efficiency.
Effortless Operation and Data Management
Featuring a digital LCD interface and microprocessor control, this viscometer enables instant readings and rapid response times. Data can be outputted directly for printing or sent to a PC through RS232 or USB interfaces, streamlining result documentation and data analysis. The auto-range, user-friendly calibration, and overload alarm features guarantee smooth, safe operation every time.
FAQ's of Digital Viscometer:
Q: How do I calibrate the Digital Viscometer, and is the process user-friendly?
A: Calibration is straightforward and conducted via the instrument's control panel. The interface is designed for ease-of-use, so users can quickly initiate and complete the calibration without the need for specialized tools or complex steps.Q: What types of liquids and viscosity ranges can this viscometer measure?
A: The instrument can analyze the viscosity of a broad spectrum of liquids, from low- to highly-viscous substances, with a typical measuring range of 1 to 2,000,000 mPas (cP), depending on the rotor and model selected.Q: When should I use different rotors, and what is the benefit of having four standard rotors included?
A: Select a rotor based on the expected viscosity of the sample: lower-numbered rotors are ideal for lower viscosities, while higher-numbered rotors handle higher viscosities. Having four rotors enhances versatility, enabling measurements across various sample types without additional purchases.Q: Where can data from the viscometer be output or transferred?
A: Data can be printed directly or connected to a PC via RS232 or USB interface (model dependent). This function facilitates efficient data management and record-keeping.Q: What are the main protective features of this equipment during operation?
A: The viscometer includes motor over-torque and overload protection mechanisms, automatically safeguarding the instrument against possible operational damage and prolonging equipment lifespan.Q: How much sample volume is required for typical tests, and what is the specimen capacity?
A: A sample volume of approximately 20 to 30 ml is usually sufficient for most viscosity tests, with the instrument supporting measurements of a single specimen at a time.Q: What advantages does the stainless steel construction offer for the wetted parts?
A: Stainless steel construction ensures chemical resistance, easy cleaning, and long-term durability, protecting the integrity of your samples and the longevity of the instrument.
Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in Fluid mechanics lab equipment Category
Bulk Density Apparatus
Price 15000.0 INR / Piece
Minimum Order Quantity : 1 Piece
Application : Determination of bulk density of powders and granules
Features : Two cylinder holders, adjustable strokes, digital preset counter, motorized operation
Automation Grade : Semiautomatic
Number of Specimens : 1 or 2 cylinders at a time
Mouthpiece Orifice Meter Apparatus
Price 60000.0 INR / Unit
Minimum Order Quantity : 1 Unit
Application : Determination of coefficient of discharge through mouthpiece/orifice
Features : Corrosion resistant, transparent measuring tank, precise scale
Automation Grade : Manual
Number of Specimens : Single specimen per test
METACENTRIC HEIGHT APPARATUS
Price 40000.0 INR / Unit
Minimum Order Quantity : 1 Unit
Application : To determine metacentric height and stability of floating bodies
Features : Transparent floatation tank, Movable weight mechanism, Durable construction, Easy to use
Automation Grade : Manual
Number of Specimens : 1 (single model at a time)

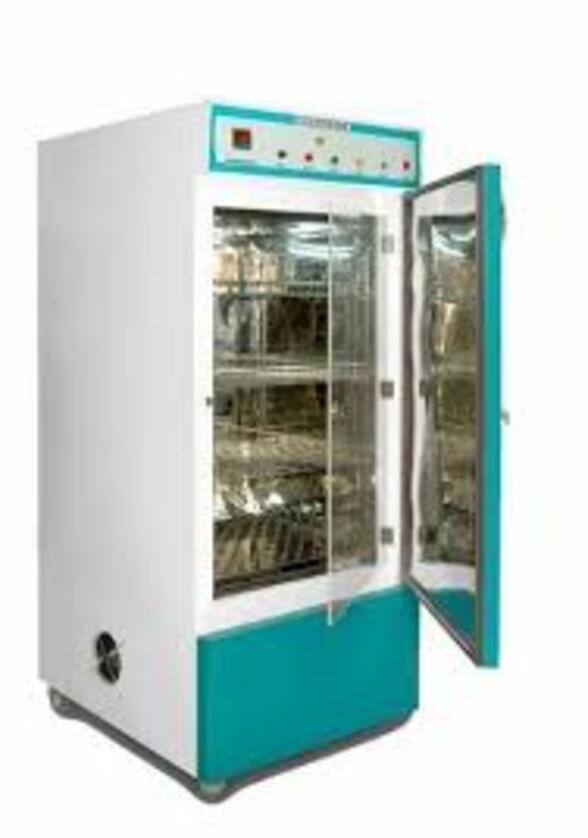

Bacteriological Incubator
