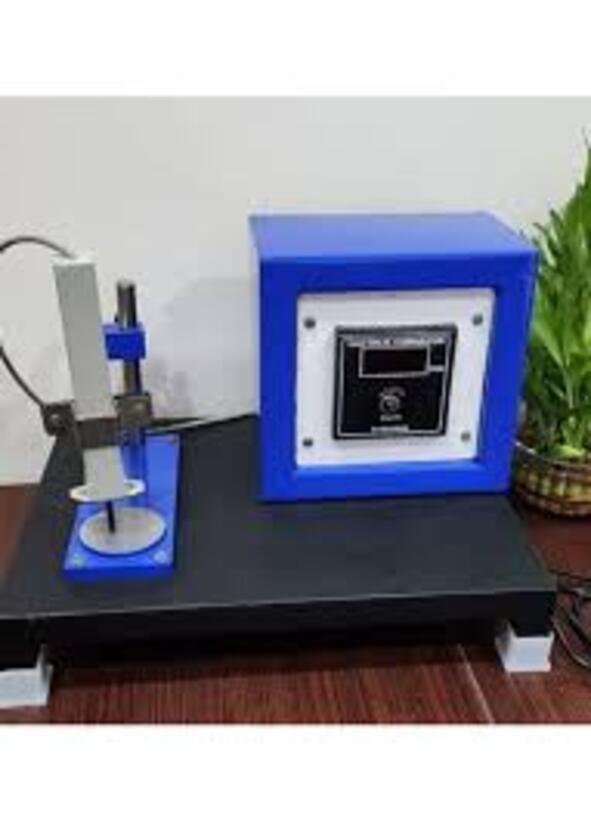

Electronic Comparator Machine

Name: Electronic Comparator Machine
Brand: Sami Lab Tek
Price: 30000.0 INR
Availability: InStock

Price 30000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Electronic Comparator Machine Specification

Application Media
Metals and Non-Metals

Temperature Range
10C to 45C

Resolution
0.001 mm

Diameter
Up to 400 mm

Capacity
1 unit

Humidity %
Up to 85% RH, Non-Condensing

Connectivity Type
RS232, USB (Optional)

Protection
IP54

Measurement Range
0 to 25 mm

Sensor Type
Linear Encoder

Frequency
50 Hz

Pressure Range
Atmospheric

Material
Stainless Steel and Cast Iron

Power Supply
230V AC, 50Hz

Power Consumption
Less than 20W

Accuracy
1 micron

Display Type
Digital LED/LCD Display

Range
0-25 mm

Indication Error
1 micron

Weight
Approx. 15 kg

Reference standard
Conforms to IS/ISO 463

Data Output
Digital/Analog

Equipment Type
Electronic Comparator Machine

Mounting Type
Benchtop / Portable

Repeatability
0.5 micron

Probe Travel
Up to 25 mm

Display Resolution
Selectable

Operating Mode
Continuous / Intermittent

Calibration
Included with certificate

About Electronic Comparator Machine

We are a prominent manufacturer and supplier of high-performance Electronic Comparator Machine, designed for precise dimensional measurement and comparison in industrial and laboratory applications. This machine is widely used for checking small linear dimensions with high accuracy in production and quality control processes.

The offered comparator is equipped with advanced electronic sensing technology and a digital display system, ensuring accurate and repeatable results. Its compact design and user-friendly interface make it ideal for workshops, tool rooms, and inspection departments.

Product Details:

Product Type: Electronic Comparator Machine
Usage: Industrial / Laboratory
Display Type: Digital
Power Supply: Electric
Material: Metal Body
Application: Dimensional Measurement

Key Features:

High precision and accuracy
Digital readout for easy measurement
Stable and reliable performance
Easy calibration and operation
Compact and sturdy design
Low maintenance requirements

Specifications:

Measuring Range: Up to 25 mm (varies by model)
Resolution: Up to 0.001 mm
Accuracy: 0.001 mm
Display: LCD / LED Digital
Power Source: AC Supply

Applications:

Engineering and manufacturing industries
Tool rooms and workshops
Quality control and inspection units
Automotive and aerospace sectors

Trade Information:

Supply Ability: As per order
Delivery Time: 12 weeks
Packaging: Standard industrial packaging

Exceptional Precision and Versatility

Engineered for high-precision applications, the Electronic Comparator Machine boasts a resolution of 0.001 mm and an indication error capped at 1 micron, making it ideal for rigorous quality control tasks in metals and non-metals. Whether utilized in benchtop or portable setups, users can depend on consistent, repeatable results.

Flexible Data Output and Modern Connectivity

The device is designed to integrate easily into your workflow, providing digital and analog data outputs and RS232/USB connectivity (optional). This allows seamless data management, reporting, and compatibility with existing equipment, streamlining measurement processes in manufacturing or inspection environments.

Certified Reliability and User-Friendly Operation

Each unit comes calibrated and accompanied by a certificate, ensuring users receive trustworthy and traceable accuracy from the outset. Operating in continuous or intermittent modes, it uses less than 20W of power, functions reliably between 10C and 45C, and adapts to a range of industrial conditions with IP54 protection.

FAQ's of Electronic Comparator Machine:

Q: How does the Electronic Comparator Machine ensure precise measurements?

A: It achieves outstanding precision with a resolution of 0.001 mm and a repeatability of 0.5 micron. The system utilizes a linear encoder sensor and conforms to IS/ISO 463 standards, providing accurate digital measurements for metals and non-metals.

Q: What is the calibration process for this comparator and is certification included?

A: Calibration is meticulously performed before delivery, and each unit includes a calibration certificate. This certificate verifies measurement accuracy and traceability, ensuring compliance with quality standards and customer requirements.

Q: When should I use the continuous versus intermittent operating modes?

A: Continuous mode is ideal for ongoing, repetitive measurements or batch testing, while intermittent mode suits occasional checks or single-sample assessments. Users can easily switch modes, adapting measurement routines to specific application needs.

Q: Where can this machine be mounted or used?

A: With its benchtop and portable mounting options and robust, IP54-protected construction, this machine is suitable for laboratories, workstations, shop floors, or field locations that demand high-precision dimensional checks.

Q: What benefits does selectable data output provide?

A: Selectable digital or analog outputs allow flexible integration into digital monitoring systems or traditional analog setups. This adaptability supports both data collection for quality tracking and direct machine interface in various production environments.

Q: How do I connect the Electronic Comparator Machine to external systems?

A: Connectivity options include RS232 as standard and optional USB ports, enabling data transfer to computers, printers, or networked systems. This simplifies result logging, reporting, and integration with quality management software.

Q: What maintenance is required to keep the machine in optimal condition?

A: Routine care involves keeping the device clean and dry, monitoring environmental limits (temperature: 10C-45C, humidity: up to 85% RH, non-condensing), and scheduling periodic calibration checks to preserve long-term measurement accuracy.
