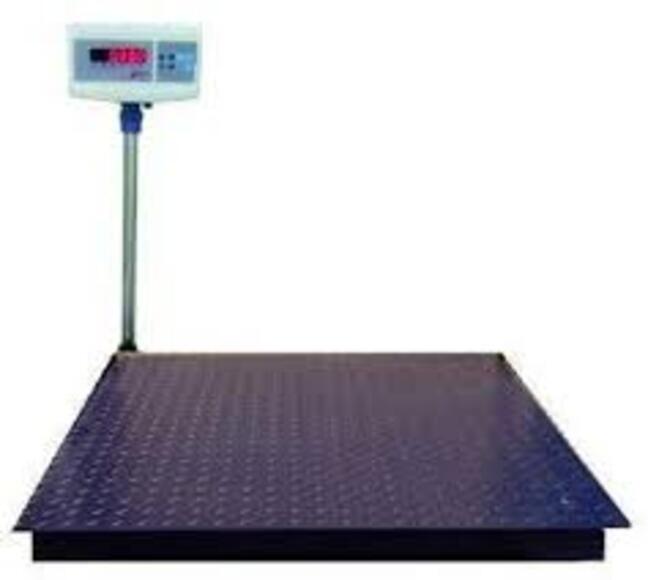

Heavy Duty Platform Scales

Name: Heavy Duty Platform Scales
Brand: Sami Lab Tek
Price: 30000.0 INR
Availability: InStock

Price 30000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Heavy Duty Platform Scales Specification

Capacity
500 kg / 1 Ton / 2 Ton / 3 Ton / 5 Ton (selectable)

Application Media
Industrial Goods, Weighing Applications

Equipment Type
Heavy Duty Platform Scale

Connectivity Type
RS 232 Serial Port

Humidity %
Upto 95% RH, Non-condensing

Sensor Type
High Precision Load Cell

Protection
Overload Protection

Resolution
1 g / 5 g / 10 g (depending on capacity)

Frequency
50-60 Hz

Temperature Range
0C to 50C

Measurement Range
0 - 5000 kg

Material
Mild Steel Platform

Power Supply
230V AC, 50 Hz

Power Consumption
Less than 10W

Accuracy
High precision, up to 0.05% of full scale

Display Type
Red LED Display

Range
Up to 5 Ton

Zero Tracking
Auto zero tracking

Calibration
External

Weighing Units
kg, g, lb selectable

Operation Mode
Manual / Auto Hold

Tare Function
Yes, up to full capacity

Finish
Powder coated anti-corrosive finish

Load Cell Protection
IP67 rated

Mounting
Floor mount

Power Backup
Optional rechargeable battery (upto 8 hours)

Approval
ISI / CE Certified

Platform Size
600 x 600 mm / 1000 x 1000 mm / 1200 x 1200 mm (as per model)

Indicator
Stainless Steel or ABS Enclosure

About Heavy Duty Platform Scales

Heavy Duty Platform Scales are robust and high-capacity weighing solutions designed for industrial and commercial applications such as warehouses, logistics centers, manufacturing units, and construction sites. These scales are engineered with a strong steel structure to withstand heavy loads and ensure long-term durability.

They are available in various platform sizes and capacities, typically ranging from 100 kg to 10,000 kg or more, making them suitable for weighing bulk materials and heavy goods with high precision.

Key Features:

Heavy-duty mild steel or stainless steel platform construction
High accuracy load cell technology for precise measurement
Digital LED/LCD display for clear readings
Anti-skid platform with rugged design
Overload protection and auto-zero tracking
Low power consumption with battery backup
Weatherproof and corrosion-resistant structure
Easy installation and low maintenance

Technical Specifications:

Capacity Range: 100 kg to 10 ton (customizable)
Accuracy: 50 gm to 500 gm (depending on model)
Platform Size: 400400 mm to 15001500 mm and above
Material: Mild Steel / Stainless Steel
Display Type: Digital LED / LCD
Power Supply: AC mains / Rechargeable battery

Applications:

Industrial warehouses
Transport & logistics companies
Agriculture & mandis
Manufacturing plants
Scrap & recycling industries

Additional Benefits:

User-friendly operation with programmable indicators
Fast response time and stable readings
Suitable for continuous heavy-duty usage
Custom-built designs available as per requirement

Heavy Duty Platform Scales provide reliable and accurate weighing performance, ensuring efficiency and productivity in demanding industrial environments.

Precision and Durability for Industrial Weighing

Built with a high-precision load cell and available in various platform sizes, our Heavy Duty Platform Scales ensure reliable and accurate weighing from 500 kg up to 5 tons. The mild steel construction with anti-corrosive, powder-coated finish ensures longevity, even under harsh industrial conditions. With IP67-rated load cell protection and overload safeguards, you can trust these scales for consistent performance in your facility.

Versatile Functionality and Easy Integration

Choose from multiple weighing units (kg, g, lb) and benefit from features such as full-capacity tare, auto zero tracking, and selectable manual/auto hold operation. The scales support easy connectivity via RS 232 serial port, ensuring seamless data transfer for efficient workflow. The optional rechargeable battery backup keeps your weighing processes uninterrupted during power outages.

FAQ's of Heavy Duty Platform Scales:

Q: How do I calibrate the Heavy Duty Platform Scale?

A: Calibration is performed externally for this model. Follow the manufacturer's provided procedure, using standard weights appropriate for the scale's capacity. Always ensure the scale is on a level floor and free from vibration during calibration for optimal accuracy.

Q: What environments are suitable for installing this platform scale?

A: These scales are ideal for industrial environments, supporting temperatures from 0C to 50C and up to 95% relative humidity (non-condensing). The anti-corrosive finish and IP67-rated load cell protection make them suitable for warehouses, factories, and logistics hubs handling heavy goods.

Q: When should I use the tare function?

A: The tare function should be used whenever you need to exclude the weight of containers or packaging from the measurement. This allows you to accurately weigh only the contents, up to the full capacity of the scale.

Q: What are the benefits of the auto zero tracking feature?

A: Auto zero tracking automatically compensates for minor drifts, debris, or gradual changes on the platform. This ensures a consistently accurate zero reading, reducing the need for frequent manual resetting and enhancing operational efficiency.

Q: Where can I use the optional rechargeable battery backup?

A: The optional battery backup is ideal for locations where power supply is unreliable or where the scale needs to be mobile around large facilities. It provides up to 8 hours of continuous operation without mains power.

Q: How does the overload protection work on these scales?

A: The integrated overload protection system helps prevent sensor or mechanical damage if loads exceed the platform's rated capacity, thereby extending the lifespan of your equipment and safeguarding your investment.

Q: What process is involved in switching weighing units?

A: To change weighing units (kg, g, or lb), simply use the provided control buttons on the indicator. Refer to the user manual for specific instructions on toggling between measurement units to suit your application needs.
