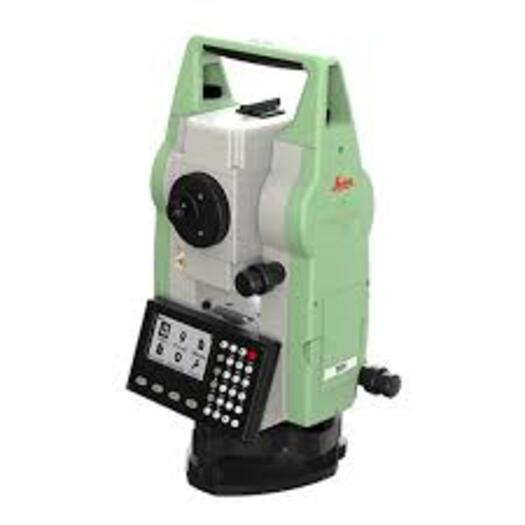

Leica Total Station Ts01

Price 290000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Leica Total Station Ts01 Specification

Angle Measurement Accuracy
2" (2 Second)

Minimum Focus Distance
1.5 m

Protection Class
IP54

Distance Measurement Accuracy
(2 mm + 2 ppm)

Magnification
30x

Display
Dual Side LCD with Backlight

Weight
Approx. 5.1 kg

Battery Type
Lithium-Ion, Rechargeable

Distance to Prism
Up to 3.5 km

Operating Time
Up to 15 hours

Plummet
Laser Plummet

Data Storage
50000 points

Compensator
Dual Axis

Measurement Range
3,500 m (Single Prism)

Communication Interface
USB, RS232

Product Name
Leica Total Station Ts01

Operating Temperature
-20C to +50C

About Leica Total Station Ts01

The Leica TS01 Total Station is a high-quality, entry-level surveying instrument designed for accurate measurement of angles and distances in construction, land surveying, and mapping projects. It is part of Leicas trusted FlexLine series and offers a perfect balance of accuracy, reliability, and ease of use.

This total station integrates Electronic Distance Measurement (EDM) and angle measurement technology to deliver precise coordinate data in real-time, improving efficiency and productivity in field operations.

The TS01 is specially designed for beginners and professionals looking for a cost-effective Leica solution for standard surveying tasks.

Key Features

Angle accuracy options: 5 / 3 (model dependent)
Reflectorless range up to 500 meters
Prism range up to 3000 meters
Fast and accurate EDM measurement
Dual-axis compensator for stable readings
Laser plummet for easy setup
Built-in onboard software for survey functions
Simple keypad with quick-access keys
Long-lasting battery with field-ready accessories

The TS01 is designed for fast setup and quick measurements, helping improve daily survey productivity.

Applications

Land & topographic surveying
Building and construction layout
Road and infrastructure projects
Mapping and GIS data collection

Exceptional Accuracy and Range

The Leica Total Station Ts01 sets a high standard in survey precision, providing angle measurements as fine as 2 seconds and distance accuracy of (2 mm + 2 ppm). Its 3,500-meter single prism range empowers surveyors to tackle large-scale projects with confidence, making it an ideal choice for both construction and topographical surveying.

Rugged Design for Field Durability

Engineered to withstand demanding environments, the Ts01 offers IP54 protection against dust and water. Its operating temperature range from -20C to +50C ensures reliability in both harsh summers and cold winters. The dual-axis compensator increases measurement stability, even on uneven ground.

Effortless Data Management

With storage capacity for 50,000 points and dual LCDs for easy operation from any side, the Leica Ts01 is user-friendly and efficient. Data transfer is seamless via USB and RS232 interfaces, streamlining workflow between field and office environments.

FAQ's of Leica Total Station Ts01:

Q: How does the Leica Total Station Ts01 ensure measurement accuracy in diverse conditions?

A: The Ts01 uses advanced angle measurement technology with 2" accuracy and a dual-axis compensator to maintain precise readings, even on uneven ground or in challenging site conditions.

Q: What is the process for transferring data from the Leica Total Station Ts01 to a computer?

A: Data can be quickly transferred using the built-in USB or RS232 interfaces. Simply connect the instrument to your computer, and download up to 50,000 recorded points for further analysis or record-keeping.

Q: When should I recharge the Leica Ts01's battery, and what is its expected operating time?

A: The rechargeable lithium-ion battery provides up to 15 hours of continuous use. For uninterrupted operation during long field sessions, it's best to recharge after a full day's work.

Q: Where can the Leica Total Station Ts01 be used effectively?

A: Designed for versatility, the Ts01 performs reliably in a wide range of environments including construction sites, roadworks, and land surveying projects, even under extreme temperatures from -20C to +50C.

Q: What are the benefits of the dual side LCD display on the Ts01?

A: Dual side LCD displays allow users to operate the station efficiently from either side, improving workflow efficiency and reducing setup times during surveys.
