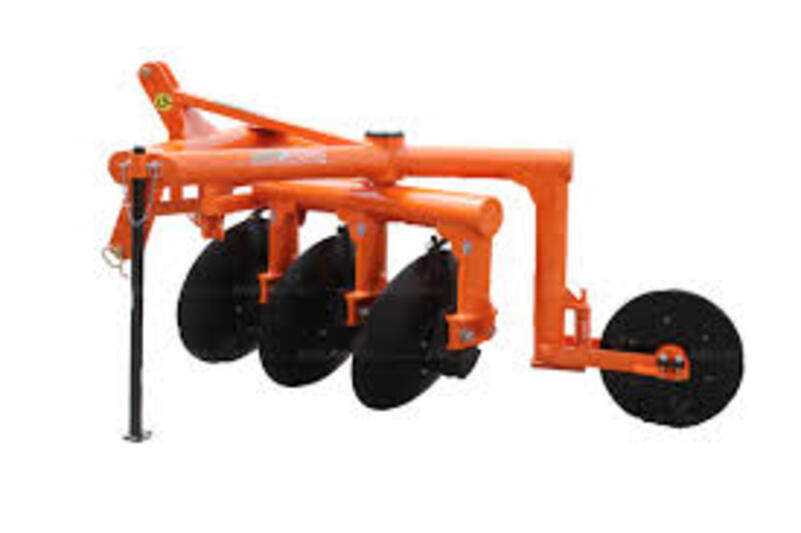

Reversible Disc Plough

Name: Reversible Disc Plough
Brand: Sami Lab Tek
Price: 60000.0 INR
Availability: InStock

Price 60000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Reversible Disc Plough Specification

Power Supply
Tractor driven (35 HP & above recommended)

Max Height
Up to 1.2 m (varies per model)

Mounting Type
Tractor 3-point linkage

Test Range
Ploughing depth up to 250-300 mm

Interface Type
3-point hitch attachment

Response Time
Immediate (mechanical operation)

Equipment Type
Reversible Disc Plough

Automation Grade
Manual/Hydraulic control

Humidity
Operational in standard ambient field conditions

Temperature
Operational in standard ambient field conditions (-10C to 50C)

Features
Heavy-duty frame, anti-corrosive paint, reversible disc action, easy adjustability, wear-resistant discs

Application
Primary soil tillage, field ploughing, breaking hard soil and soil inversion

Resolution
Dependent on hydraulic/mechanical adjustment

Hardness
Disc hardness: 38-48 HRC

Operating Voltage
Not applicable (tractor powered)

Port Size
Standard tractor 3-point linkage

Measuring Range
Ploughing depth: up to 300 mm

Accuracy
Field operational precision

Usage
Agricultural field operations

Capacity
2, 3, or 4 reversible discs (varies with model)

Machine Weight
Approx. 350-400 kg (varies with model and number of discs)

Test Speed
Suitable for standard tractor speeds (2-5 km/h)

Test Width
60-105 cm (depending on disc size & number)

Test Stroke
Not applicable (ground engaging implement)

Control Mode
Hydraulic or Mechanical (tractor mounted)

Paint Type
Powder coated/anti-rust finish

Frame Material
High tensile steel

Disc Diameter
660 mm (26 inches) or 710 mm (28 inches)

Adjustment
Cutting depth and angle adjustable

Transport Width
Varies as per disc configuration (approx. 1.1-1.9 m)

Disc Spacing
254-305 mm (10-12 inches)

Number of Furrows
2, 3, or 4 (model dependent)

About Reversible Disc Plough

A Reversible Disc Plough is a heavy-duty agricultural implement used for primary tillage operations, designed to cut, lift, and turn the soil efficiently in both directions. It is widely used for land preparation in agriculture, especially in hard, dry, and root-filled soil conditions.

The plough is equipped with concave steel discs mounted on a strong reversible frame, allowing it to work in forward and reverse directions without wasting time on return trips. This improves field efficiency, reduces fuel consumption, and enhances productivity.

Manufactured using high-grade hardened steel and robust frame structure, the reversible disc plough ensures durability, strength, and long service life even under tough farming conditions. It is compatible with various tractor models and is easy to operate and maintain.

Key Features:

Reversible design for both-direction ploughing
Heavy-duty concave discs for efficient soil cutting
Suitable for hard, dry, and rocky soils
Strong steel frame for long durability
Reduces turning time and increases efficiency
Easy tractor mounting and operation
Low maintenance and high performance

Applications:

Primary tillage in agricultural fields
Land preparation for sowing crops
Breaking hard and compact soil
Soil inversion and weed control
Large-scale farming operations

Heavy-Duty Construction for Demanding Fields

Built from high tensile steel, this reversible disc plough ensures durability and resilience even when tackling compact or rocky soils. Its powder-coated, anti-corrosive finish safeguards the machine against rust and harsh outdoor environments, making it suitable for varied farming regions across India. The robust frame and wear-resistant discs deliver consistent results season after season.

Versatile Models and Adjustable Features

Available in 2, 3, or 4 furrow configurations, this plough caters to different land sizes and soil conditions. Operators can easily adjust both cutting depth and disc angle, optimizing soil inversion and field preparation. Its standard 3-point hitch ensures compatibility with most tractors, and both mechanical and hydraulic control modes provide flexibility for farmers' preferences.

Efficient Field Performance and User Benefits

Designed for optimal soil penetration, the plough achieves working depths of up to 300 mm with precision. The reversible disc action minimizes downtime by enabling quick direction changes, reducing tire marks and improving operational efficiency. This implement enhances work output, reduces fatigue, and supports sustainable agriculture through effective soil management.

FAQ's of Reversible Disc Plough:

Q: How do I adjust the cutting depth and disc angle on the reversible disc plough?

A: Both cutting depth and disc angle adjustments can be made manually or via hydraulic controls, depending on the chosen model. Levers and adjustment bolts allow precise field customization to match specific soil conditions and depths up to 300 mm.

Q: What are the key benefits of using a reversible disc plough compared to a fixed disc plough?

A: The reversible disc plough allows both forward and reverse operation without lifting out of the soil, reducing field time and compaction. It also provides superior soil inversion, greater efficiency in breaking hard ground, and minimizes unploughed strips for better crop results.

Q: When is the ideal time to use this equipment in the field?

A: Best utilized before the sowing season during initial soil preparation, the reversible disc plough is effective for breaking hard soil, incorporating crop residues, and creating a fine tilth for seeding. It's suitable for use in diverse seasons, provided soil moisture is optimal for ploughing.

Q: Where can this plough be attached and operated?

A: This implement mounts onto the standard 3-point hitch of tractors (35 HP and above). It is suitable for use in open agricultural fields, particularly where efficient primary tillage and deep soil penetration are required.

Q: What is the process for routine maintenance and care?

A: Routine maintenance involves checking and tightening bolts, lubricating moving parts, inspecting hydraulic connections, and regularly cleaning the discs and frame after use. The anti-rust powder coating helps extend the implement's lifespan.

Q: How does the reversible mechanism benefit field operations?

A: The reversible action enables the plough to operate in both directions, which saves time on headlands, enhances field coverage, and reduces manual turning, making operations more efficient and reducing tractor fuel consumption.

Q: What is the recommended tractor specification for operating this plough?

A: A tractor with at least 35 HP and a standard 3-point linkage is recommended to ensure optimal performance and safe operation for all available furrow configurations.
