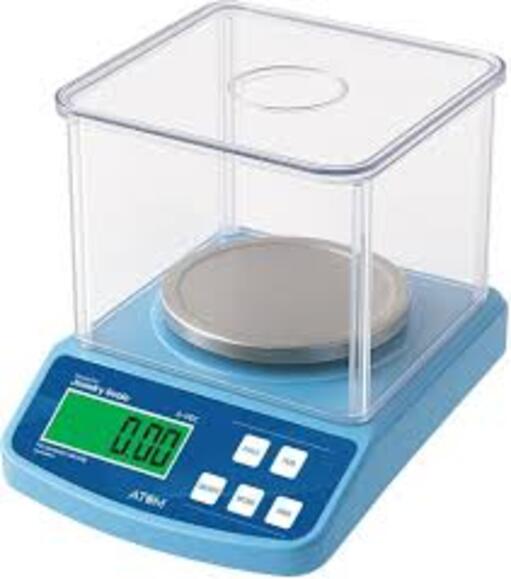

Analytical Weight Balance

Name: Analytical Weight Balance
Brand: Sami Lab Tek
Price: 13000.0 INR
Availability: InStock

Price 13000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Analytical Weight Balance Specification

Frequency
50/60 Hz

Sensor Type
Electromagnetic Force Restoration

Capacity
200 g

Humidity %
<80% RH

Protection
Overload and Shock Protection

Connectivity Type
RS232 Interface

Equipment Type
Analytical Weight Balance

Measurement Range
0.1 mg - 200 g

Temperature Range
10C to 40C

Application Media
Laboratory, Industrial

Diameter
80 mm Pan Diameter

Resolution
0.1 mg

Material
Stainless Steel Pan, ABS Body

Power Supply
220V AC, 50/60 Hz

Power Consumption
Low (<10 W)

Accuracy
0.0001 g (0.1 mg)

Display Type
Backlit LCD Display

Range
0.0001 g to 200 g

Linearity
0.2 mg

Gross Weight
Approx. 6 kg

Display Resolution
7 digit LCD

Operating Voltage
220V AC

Calibration
Internal/External

Stabilization Time
2-3 seconds

Interface
RS-232, USB (optional)

Weighing Units
g, mg, ct, oz

Dimensions
340 x 215 x 350 mm

Repeatability
0.1 mg

Tare Range
Full Capacity

Pan Size
80 mm

Draft Shield
Included, Glass

About Analytical Weight Balance

Analytical Weight Balance is a highly sensitive laboratory instrument designed for precise measurement of small masses with exceptional accuracy. It is widely used in pharmaceutical laboratories, research centers, chemical industries, and educational institutions.

The balance is equipped with an advanced weighing system and a clear digital display to provide fast, stable, and accurate results. It features a draft shield enclosure to prevent air disturbances, ensuring reliable measurements even at very low weights.

Its compact design, easy operation, and durable construction make it ideal for routine laboratory applications and quality control processes where precision is critical.

Features:

High precision and sensitivity
Digital display with accurate readings
Draft shield for error-free measurement
Fast response and stable performance
User-friendly and durable design

Unmatched Precision and Reliability

Engineered for ultimate accuracy, the Analytical Weight Balance delivers consistent results with a repeatability of 0.1 mg and linearity of 0.2 mg. The fast 2-3 second stabilization time increases laboratory throughput, while intelligent protection mechanisms safeguard against overloading and shocks.

Advanced Usability and Connectivity

Equipped with a backlit 7-digit LCD screen, this balance ensures optimal visibility in various lighting conditions. Users benefit from convenient RS-232 and optional USB interfaces, enabling easy data transfer and remote operation. The spacious 80 mm draft shielded pan accommodates a range of samples for diverse weighing needs.

FAQ's of Analytical Weight Balance:

Q: How do I calibrate the Analytical Weight Balance?

A: This balance supports both internal and external calibration. For internal calibration, simply follow the on-screen prompts and use the built-in calibration weights. For external calibration, place an appropriate certified weight (within the range) on the pan and follow the indicated steps as per the manual.

Q: What are the main benefits of the included glass draft shield?

A: The glass draft shield surrounds the weighing pan, minimizing disturbances from air currents. This helps to achieve highly consistent measurements, especially critical at the 0.1 mg sensitivity level, and is essential for laboratory precision.

Q: When should I use the tare function on this equipment?

A: Use the tare function whenever you need to subtract the weight of a container or packaging. With a full capacity tare range, you can reset the display to zero even with a container placed on the pan, ensuring only the sample mass is measured.

Q: Where is this analytical weight balance typically used?

A: This equipment is well-suited for laboratory and industrial environments where high-precision measurements are needed, such as chemical analysis, pharmaceutical quality control, or research applications.

Q: What process does the balance use to achieve its accuracy?

A: The balance utilizes electromagnetic force restoration sensor technology, which precisely measures the force needed to counterbalance the sample's weight on the pan, resulting in high accuracy and remarkable stability.

Q: How can I connect the balance to other devices for data transfer?

A: The primary connectivity is via the RS-232 interface, making it compatible with many laboratory computers and printers. An optional USB interface allows for greater flexibility and easy data transfer to modern PCs or data systems.
