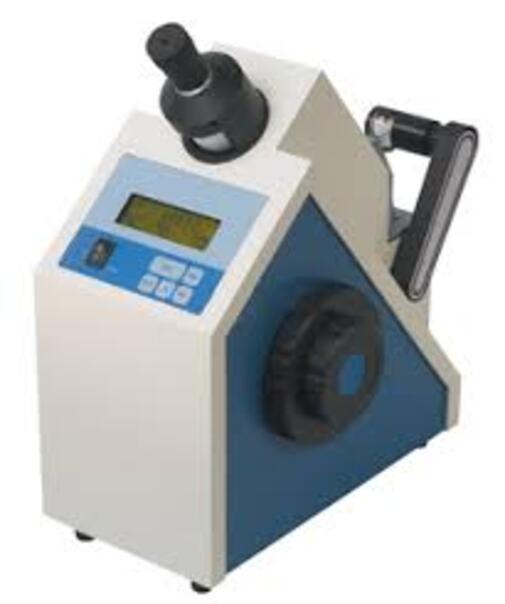

ATC Digital Abbe Refractometer

Name: ATC Digital Abbe Refractometer
Brand: Sami Lab Tek
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

ATC Digital Abbe Refractometer Specification

Frequency
50/60Hz

Sensor Type
Digital optical sensor

Measurement Range
Refractive Index 1.3000 - 1.7000; Brix 0-95%

Application Media
Liquids, solids (films, plastics), gels

Temperature Range
10oC - 75oC (with Peltier control)

Pressure Range
Atmospheric

Equipment Type
Digital Abbe Refractometer

Capacity
Sample size: 0.20 - 0.30 ml

Resolution
0.0001 nD / 0.01% Brix

Humidity %
Less than 85% relative humidity (non-condensing)

Diameter
Viewing prism: 37 mm

Connectivity Type
USB Data Output

Protection
IP40

Material
High-grade optical glass and corrosion-resistant metal alloy

Power Supply
100-240V AC, 50/60Hz

Power Consumption
15W

Accuracy
0.0002 nD

Display Type
Digital LCD Display

Range
Refractive Index (nD) 1.3000 - 1.7000

Compliance
CE Certified

Display Resolution
High-definition 4.3-Inch touch LCD

Prism Material
Hard Glass Prism

Brix Range
0-95%

Software Features
Built-in data storage and export

Calibration
Automatic with distilled water or standard fluids

Operating Environment
10C-40C, humidity <85%

Output Format
Digital data, compatible with PC software

Temperature Control
Built-in Peltier Thermostat

Interface
USB/Bluetooth (optional)

Dimensions
315 x 220 x 330 mm

Weight
8.5 kg

Refractometer Type
ATC (Automatic Temperature Compensation)

ATC Digital Abbe Refractometer Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
100 Units Per Month

Delivery Time
7 Days

About ATC Digital Abbe Refractometer

We are engaged in offering a high-quality range of ATC Digital Abbe Refractometer, which is widely used for precise measurement of refractive index and Brix values in various industrial and laboratory applications. This instrument is manufactured using advanced technology and premium-grade components to ensure accurate performance and long service life.

The provided refractometer is equipped with Automatic Temperature Compensation (ATC), which allows accurate readings by eliminating temperature variations. It is highly demanded in industries such as food processing, pharmaceuticals, chemicals, and research laboratories.

Product Details:

Product Type: Digital Abbe Refractometer
Usage: Laboratory & Industrial
Display Type: Digital
Temperature Compensation: Automatic (ATC)
Material: Mild Steel / ABS Body
Power Supply: Electric

Key Features:

High accuracy and reliable performance
Easy to operate and maintain
Clear digital display for quick readings
Rugged construction for long-lasting use
Fast and precise measurement results

Specifications:

Refractive Index Range: 1.3000 1.7000 nD
Brix Range: 0 100%
Accuracy: 0.0002 nD
Temperature Range: 0C to 100C

Applications:

Food & beverage industry
Pharmaceutical labs
Chemical analysis
Sugar and oil industries
Research and development laboratories

Precision Measurement with Advanced Technology

Engineered for reliability, the ATC Digital Abbe Refractometer leverages a high-grade hard glass prism and a digital optical sensor to deliver accurate readings with a resolution of 0.0001 nD or 0.01% Brix. Its built-in Peltier thermostat ensures precise temperature control, enhancing result consistency across varied samples and operating environments.

Effortless Calibration and User Experience

Calibration is simplified through automatic procedures using distilled water or standard fluids. The intuitive 4.3-inch touch LCD display provides clear, real-time digital readouts, while built-in data storage and export functions enhance record keeping. Optional USB and Bluetooth connectivity ensure seamless integration with PC software for advanced data management.

Versatile Applications and Robust Design

Designed to accommodate liquids, solids, gels, and thin-film samples, the refractometer is built with corrosion-resistant metal alloys and high-grade optical glass for longevity. Its IP40 protection and compact dimensions provide ease of use in various laboratory settings, making it a versatile tool for research, quality control, and industrial applications.

FAQ's of ATC Digital Abbe Refractometer:

Q: How does the ATC Digital Abbe Refractometer achieve precise temperature control during measurements?

A: The refractometer features a built-in Peltier thermostat, enabling precise temperature regulation of the sample stage between 10C and 75C. This ensures reliable readings by minimizing thermal variations, supporting accurate refractive index and Brix measurements in laboratory settings.

Q: What are the benefits of automatic temperature compensation (ATC) in this refractometer?

A: Automatic Temperature Compensation (ATC) automatically corrects readings for temperature differences, ensuring the data remains accurate and consistent even if sample or environmental temperatures fluctuate. This is especially important for precise measurements and long-term data reliability.

Q: When should calibration be performed, and what is the calibration process?

A: Calibration should be performed before initial use, after cleaning, or when measurement accuracy is critical. The process is straightforward-apply distilled water or a standard fluid to the prism, activate the automatic calibration mode, and the device adjusts its readings accordingly.

Q: Where can the measurement results be exported or stored?

A: Measurement results can be stored in the instrument's built-in data storage system. For further analysis or record-keeping, data can be exported via USB connection or optional Bluetooth to compatible PC software, facilitating seamless integration with laboratory information systems.

Q: What samples can be measured using the ATC Digital Abbe Refractometer?

A: The device is suitable for liquids, gels, and solid samples such as plastics and films, with a minimum sample size of 0.20 - 0.30 ml. Its robust prism and sensitive digital sensor ensure accurate analysis across a wide range of materials.

Q: How does this refractometer enhance laboratory workflow compared to traditional models?

A: With its automatic temperature control, rapid digital display, simple calibration, and digital connectivity, the refractometer significantly reduces manual intervention and error. This streamlines laboratory workflow, increases measurement throughput, and improves data management efficiency.

Q: What compliance and safety standards does the ATC Digital Abbe Refractometer meet?

A: The refractometer is CE certified, ensuring adherence to European safety and performance standards. Its construction materials-corrosion-resistant metal alloys and high-grade optical glass-further guarantee durability and safety in laboratory environments.
