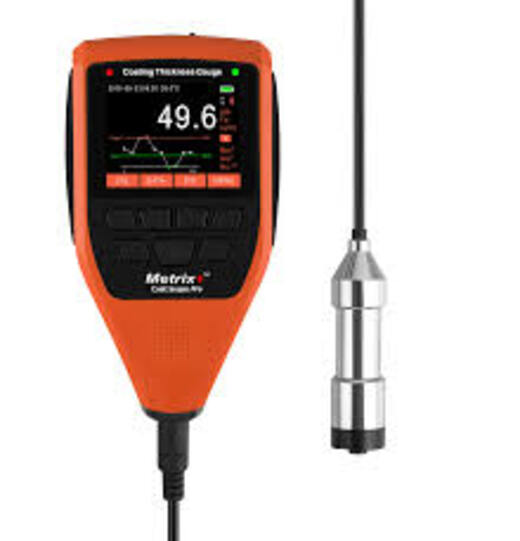

Digital Coating Thickness Gauge

Name: Digital Coating Thickness Gauge
Brand: Sami Lab Tek
Price: 5500.0 INR
Availability: InStock

Price 5500.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Digital Coating Thickness Gauge Specification

Equipment Type
Digital Coating Thickness Gauge

Capacity
Up to 80 measurements memory

Sensor Type
Magnetic Induction/ Eddy Current

Connectivity Type
No direct connectivity (Standalone)

Measurement Range
0 to 1250m (0 to 50 mil)

Protection
Protective Carrying Case

Resolution
0.1m (0-99.9m), 1m (over 100m)

Diameter
Measurement Probe: 13mm

Pressure Range
Atmospheric

Temperature Range
0C to 50C (Operating)

Humidity %
Up to 85% RH (non-condensing)

Application Media
Ferrous and Non-Ferrous Metal Substrates

Material
ABS Plastic Housing

Power Supply
9V Battery (Included)

Power Consumption
Low Power Consumption

Accuracy
1-3% or 2.5m (whichever is greater)

Display Type
Large Digital LCD Display

Range
0-1250m

Operating Principle
Magnetic Induction for Fe, Eddy Current for NFe

Battery Life
Up to 50 hours (continuous use)

Dimensions
Approx. 125mm x 67mm x 32mm

Weight
Approx. 100g (including battery)

Language Support
English

Minimum Curvature Radius
Convex: 5mm, Concave: 30mm

Data Hold
Yes

Probe Type
Detachable/Integrated

Calibration
Provided with Zero and Full-Scale Calibration Foils

Backlight Display
Yes

Minimum Measuring Area
6mm

Standard Accessories
Calibration Foils, Carrying Case, User Manual, Battery

Minimum Substrate Thickness
Ferrous: 0.5mm, Non-Ferrous: 0.3mm

Display Units
m/ mils (Selectable)

Auto Power Off
Yes (extends battery life)

Digital Coating Thickness Gauge About

We are a leading supplier and exporter of high-quality Digital Coating Thickness Gauge, designed for precise and non-destructive measurement of coating thickness on ferrous and non-ferrous metal substrates. This instrument is widely used in quality control, inspection, and surface treatment industries.

The offered gauge is manufactured using advanced technology and high-precision sensors, ensuring accurate, fast, and reliable readings. Its compact design and digital display make it easy to use in both laboratory and field environments.

Product Details:

Product Type: Digital Coating Thickness Gauge
Usage: Industrial / Inspection
Display Type: Digital LCD
Power Supply: Battery Operated
Material: ABS / Metal Body
Application: Coating Thickness Measurement

Key Features:

High accuracy and repeatability
Suitable for ferrous and non-ferrous materials
Non-destructive testing method
Easy calibration and operation
Portable and lightweight design
Fast response time

Specifications:

Measuring Range: 0 2000 m (model dependent)
Accuracy: 1% to 3%
Resolution: 0.1 m / 1 m
Probe Type: Integrated or External (model dependent)
Measurement Principle: Magnetic Induction & Eddy Current
Display: LCD Digital

Applications:

Automotive industry
Paint and coating inspection
Electroplating and galvanizing
Manufacturing and fabrication units
Quality control laboratories

Trade Information:

Supply Ability: As per requirement
Delivery Time: 12 weeks
Packaging Details: Standard safe packaging

Accurate Measurement on Metal Substrates

Engineered for both ferrous and non-ferrous metals, the gauge delivers precise coating thickness readings using advanced magnetic induction and eddy current technologies. It accommodates a wide range of substrate thicknesses and offers selectable measurement units, making it ideal for quality control, corrosion prevention, and research tasks.

User-Centric Features for Reliable Operation

Equipped with a large backlit LCD display, memory for up to 80 readings, and a convenient data hold function, this device simplifies inspections in various environments. The auto power-off feature, robust protective case, and lightweight design provide ease and durability for both field and lab operations.

FAQ's of Digital Coating Thickness Gauge:

Q: How does the Digital Coating Thickness Gauge work on different substrates?

A: The gauge uses magnetic induction for ferrous metals and eddy current for non-ferrous metals, automatically detecting the substrate type to provide accurate thickness measurements across a wide range of surfaces.

Q: What is the process for calibrating the thickness gauge?

A: Calibration is made simple with the included zero and full-scale foils. The user follows the manual's step-by-step directions to ensure the instrument delivers precise and repeatable results.

Q: When should I use the auto power off feature?

A: The auto power off function activates automatically after a period of inactivity, extending the 9V battery life up to 50 hours with continuous use, making it ideal for long inspections without worrying about battery drain.

Q: Where can I use this thickness gauge?

A: This instrument is suitable for industrial, automotive, marine, and laboratory environments across India, especially where accurate evaluation of coating thickness on metal surfaces is critical to QA or compliance.

Q: What are the benefits of using this particular coating thickness gauge?

A: Benefits include rapid, precise measurement, easy calibration, a large illuminated display, compact and durable construction, and memory for up to 80 measurements, all designed to enhance productivity and reliability in coating quality assessments.

Q: How can I view and record measurement data?

A: The gauge displays results on a large digital LCD, lets you hold data on the screen, and can store up to 80 readings, which you can note manually in reports as there is no direct digital connectivity.
