About Bitumen Extractor Electrically Operated

A Ductility Testing Machine is a precision laboratory instrument used to determine the ductility (elongation property) of bituminous materials. It measures the distance in centimeters to which a standard bitumen briquette specimen can be stretched before breaking under controlled conditions of temperature and speed.

This test is essential in evaluating the flexibility and adhesive properties of bitumen, ensuring durability and performance in road construction projects.

Key Features

Motorized carriage for uniform pulling speed
Thermostatically controlled water bath for accurate temperature maintenance
Stainless steel inner tank for corrosion resistance
Digital/analog temperature controller
Capable of testing 3 specimens simultaneously
Smooth sliding mechanism for precise elongation measurement
Low maintenance and long service life

Technical Specifications (Typical)

Test Speed: 50 mm/min (2.5 mm/min)
Temperature Range: Typically maintained at 25C or 27C
Power Supply: 220240V, Single Phase
Capacity: 3 specimens (standard models)
Elongation Range: Up to 1500 mm (varies by model)
Material: Mild Steel body with stainless steel tank

Working Principle

The test involves preparing a standard briquette sample of bitumen, which is placed in a temperature-controlled water bath. The machine pulls the specimen at a constant speed until it breaks, and the elongation distance is recorded as ductility value.

Applications

Bitumen and asphalt testing laboratories
Highway and road construction projects
Civil engineering colleges and R&D labs
Quality control in pavement construction

Advantages

Ensures accurate assessment of bitumen flexibility
Helps in selecting suitable bitumen grade
Improves road durability and performance
Provides reliable and repeatable results

Available Variants

Standard (Thermostatic) Model
Digital Display Model
Refrigerated Ductility Testing Machine
Force Ductility Testing Machine (with load measurement)

If you want, I can also:

Convert this into SEO-optimized TradeIndia title + keywords
Add price range + HS code + GST details
Or create short 23 line description for quick upload

Bitumen Extractor Electrically Operated

Heres a Trade Indiastyle product description for a Bitumen Extractor Electrically Operated along with real product options for reference

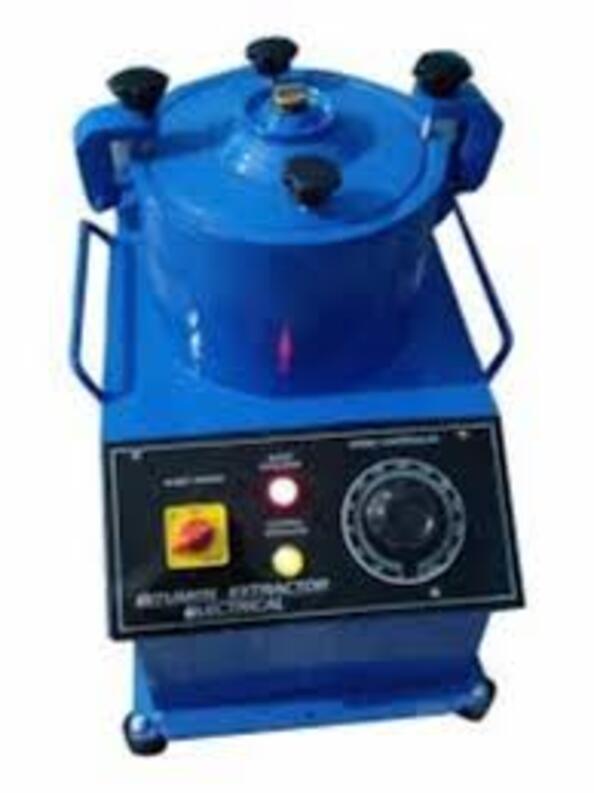

Bitumen Extractor Electrically Operated Description

A Bitumen Extractor Electrically Operated is a laboratory testing instrument used for determining the bitumen content in asphalt and bituminous mixtures. It works on the principle of centrifugal extraction, where the bitumen is separated from aggregates using a solvent and high-speed rotation.

This equipment is widely used in civil engineering laboratories, road construction projects, and quality control testing to ensure proper mix design and pavement performance.

Key Features

Electrically driven motorized centrifuge system
Variable speed control for accurate testing (approx. 24003600 RPM)
Removable aluminum rotor bowl with cover
Durable mild steel / stainless steel body
Equipped with hand brake system for safety
Smooth and vibration-free operation
Low maintenance and long service life

Technical Specifications (Typical)

Capacity: 1500 g (approx.)
Speed Range: 2400 3600 RPM
Motor: 0.25 HP electric motor
Power Supply: 230V, Single Phase, 50 Hz
Automation Grade: Semi-automatic
Material: Mild Steel / Aluminum

Working Principle

The bituminous sample is placed in the rotor bowl along with a solvent (like benzene or toluene). The machine spins at high speed, causing the bitumen to dissolve and separate from aggregates by centrifugal force. The extracted solution is collected, and the remaining aggregate is analyzed to determine bitumen percentage.

Applications

Asphalt and pavement testing laboratories
Highway and road construction projects
Civil engineering colleges & R&D labs
Quality control of bituminous mixes

Advantages

Provides accurate and quick bitumen content results
Reduces manual effort compared to hand-operated models
Ensures consistent and repeatable testing
Suitable for both field and laboratory use

Precise Bitumen Content Analysis

The Bitumen Extractor Electrically Operated Model is engineered for accurate and quick determination of bitumen in asphalt and bituminous mixtures. Its robust centrifugal mechanism and stainless steel bowl provide reliable separation, crucial for road construction quality control. Ideal for laboratories focused on material analysis, the extractor underscores precision and reproducibility in every test.

User-Friendly and Safe Operation

Designed for operator convenience, the machine features a comprehensive control panel with an ON/OFF switch and speed regulator, making operation straightforward. Safety is prioritized with an enclosed cabinet equipped with a locking arrangement, protecting users during extraction. The compact, sturdy build supports frequent laboratory use.

FAQ's of Bitumen Extractor Electrically Operated:

Q: How does the electrically operated bitumen extractor function?

A: The machine operates using a centrifugal extraction process powered by an electric motor. After placing a sample and filter paper in the 1500 ml stainless steel bowl, the motor spins the mixture; the speed is adjusted via the regulator, facilitating bitumen separation.

Q: What are the key benefits of using this model in a laboratory?

A: This extractor offers precise and rapid determination of bitumen content, essential for road construction quality control. The electric motor provides consistent operation, and the enclosed cabinet with locking ensures user safety during testing.

Q: Where can the electrically operated bitumen extractor be used?

A: It is primarily utilized in road construction laboratories and facilities involved in quality control of asphalt and other bituminous pavements, ensuring adherence to material specifications.

Q: What process should be followed for bitumen extraction using this equipment?

A: Begin by preparing the sample with filter paper in the stainless steel bowl, close and lock the cabinet, and set the desired speed using the regulator. Operate the device until extraction is complete, then collect the separated components for further analysis.

Q: When is it necessary to use a bitumen extractor in construction projects?

A: It is used during the quality assessment phase of asphalt production or road construction, when precise measurement of bitumen content is crucial for ensuring material standards and performance reliability.

Q: What accessories are provided with the bitumen extractor?

A: The equipment comes with essential accessories, including filter paper and a measuring cylinder, facilitating immediate operation and accurate measurement for bitumen extraction processes.

Bitumen Extractor Electrically Operated

Price 17500.0 INR/ Piece
