Wind Vane Wind Direction

Name: Wind Vane Wind Direction
Brand: Sami Lab Tek
Price: 4500.0 INR
Availability: InStock

Price 4500.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Wind Vane Wind Direction Specification

Sensor Type
Precision potentiometer or hall effect

Resolution
1

Measurement Range
Full 360 rotation

Capacity
Suited for all standard meteorological applications

Connectivity Type
4-20 mA output or RS485

Temperature Range
-40C to +70C

Application Media
Outdoor wind direction measurement

Current Range
4-20 mA output signal

Humidity %
0~100% RH

Equipment Type
Wind Vane

Diameter
300 mm

Wind Speed
N/A (direction sensor only)

Protection
IP65 (Weatherproof)

Material
UV-resistant ABS or aluminum alloy

Power Supply
12V DC or 24V DC

Power Consumption
Low (less than 2W)

Accuracy
3

Display Type
Analog and digital available

Range
0 to 360

Output Signal
Proportional to wind direction

Weight
Approx 0.8 kg

Operating Principle
Balanced wind vane with low friction bearings

Maintenance
Minimal, periodically clean moving parts

Response Time
Less than 1 second

Cable Length
Standard 5 meters (customizable)

Color
Black/Gray

Mounting Method
Pole and bracket included

Usage Environment
Weather stations, marine, industrial sites, research

About Wind Vane Wind Direction

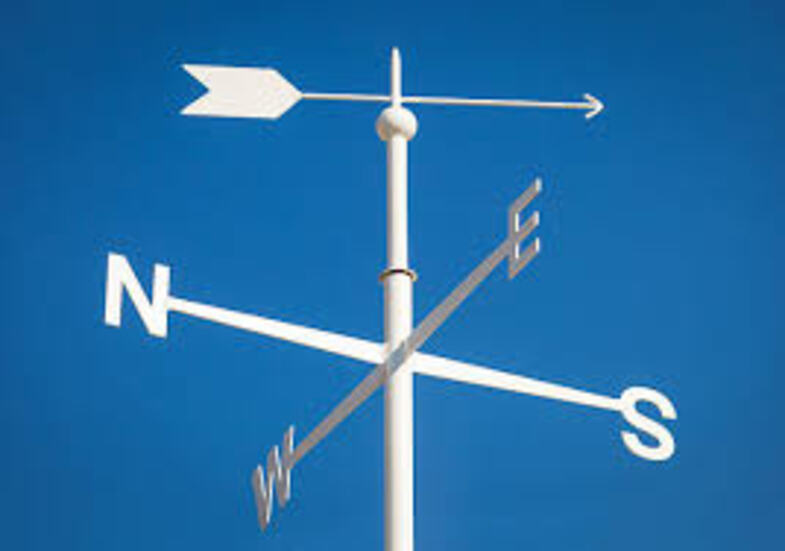

Wind Vane (Wind Direction Indicator)

We offer high-quality Wind Vane / Wind Direction Indicators designed to accurately show the direction of wind flow. These instruments are widely used in weather stations, meteorological departments, agriculture fields, schools, and industrial applications.

Our wind vanes are manufactured using durable, weather-resistant materials to ensure long-lasting performance even in harsh outdoor conditions. The easy-to-read directional markings (N, S, E, W) provide precise wind direction at a glance.

Key Features:

Accurate wind direction measurement
Strong and weatherproof construction
Smooth and sensitive rotation
Easy installation on rooftops or poles
Suitable for educational and professional use

Applications:

Weather monitoring stations
Agricultural forecasting
Schools and science labs
Industrial and environmental monitoring

This wind vane is an essential instrument for understanding weather patterns and improving decision-making in farming, aviation, and environmental studies.

Reliable and Fast Wind Direction Tracking

With a response time of less than one second and a full 360 measurement range, this wind vane delivers real-time, highly accurate wind direction data. Its advanced precision potentiometer or hall effect sensor ensures consistent readings in all conditions, making it essential for applications where rapid changes in wind direction must be recorded and acted upon.

Durable All-Weather Construction

Designed for demanding environments, the wind vane features an IP65 weatherproof rating and a rugged, UV-resistant ABS or aluminum alloy body. This construction protects the internal components from dust, rain, and extreme temperatures ranging from -40C to +70C, ideal for both industrial and research use outdoors.

Easy Installation and Integration

This wind vane is supplied with a mounting pole, bracket, and a standard 5-meter cable for quick setup in various outdoor settings. It supports 12V or 24V DC power supply options and offers 4-20 mA or RS485 connectivity, ensuring seamless integration with most data acquisition systems used by meteorological networks and research institutes.

FAQ's of Wind Vane Wind Direction:

Q: How is the wind vane installed and what accessories are included for mounting?

A: The wind vane is designed for straightforward installation and comes with a pole and bracket, making it suitable for mounting on standard meteorological towers or poles. The included hardware ensures stable and secure placement for accurate wind direction measurement.

Q: What environments and applications is this wind vane suitable for?

A: This wind direction sensor is built for a wide range of environments, including weather stations, industrial sites, marine locations, and research facilities. With its IP65 rating and material choices like UV-resistant ABS or aluminum alloy, it performs reliably in outdoor applications exposed to harsh weather conditions.

Q: What maintenance is required and how often should it be performed?

A: Routine maintenance for the wind vane is minimal-periodically clean the moving parts of the vane using a soft cloth to remove debris and ensure low-friction operation. This helps maintain measurement accuracy and prolongs the life of the wind vane. No complex calibration or servicing is required.

Q: What kind of output signals are available, and how does the wind vane interface with monitoring equipment?

A: The wind vane provides both analog (4-20 mA) and digital (RS485) output options, allowing it to be easily integrated into a wide array of monitoring and data acquisition systems. The output signal is proportional to the wind's direction, facilitating precise data transmission to external displays or recorders.

Q: What is the accuracy and resolution offered by this wind vane?

A: The sensor provides a direction accuracy of 3 with a 1 resolution across the full 0-360 range. This high precision ensures that users receive reliable and actionable data for meteorological analysis and decision-making.

Q: Where can the wind vane be used and what are its operational limits?

A: It can be deployed in outdoor locations exposed to all weather conditions, with an operating temperature range of -40C to +70C and humidity tolerance from 0 to 100% RH. Its robust construction and weatherproofing allow for long-term use in diverse settings.
