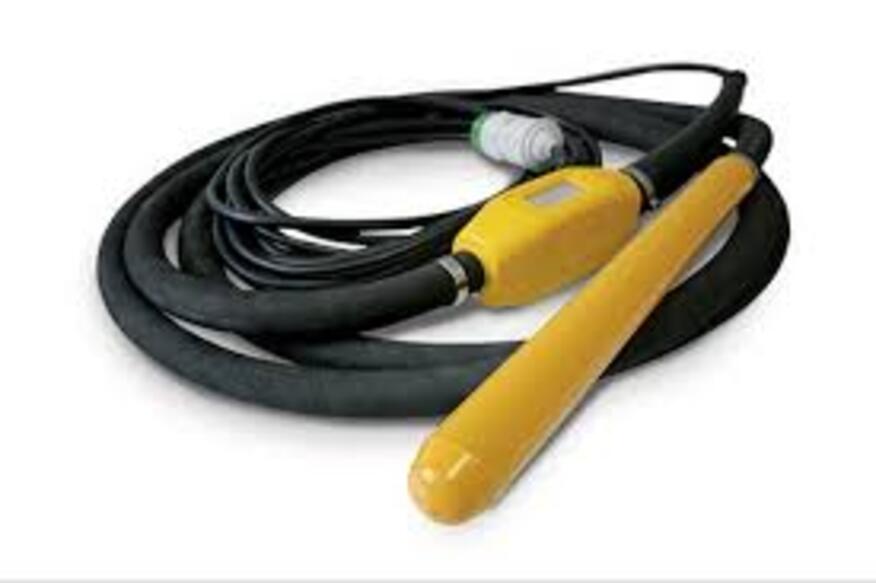

Send InquiryHigh Frequency Concrete Vibrators
Price 70000.0 INR/ Unit
MOQ : 1 Unit
High Frequency Concrete Vibrators Specification
- Feature
- High frequency operation, efficient performance, heavy-duty motor, ergonomic design, minimal maintenance.
- Diameter
- Needle Diameter: 25 mm, 38 mm, 45 mm, 60 mm (various options depending on model)
- Load Capacity
- Suitable for various concrete grades, up to 50 mm aggregate size.
- Weight
- Needle: 5-12 kg, Total Set: 15-30 kg (depending on model and length)
- Material
- Heavy-duty Steel Body with durable Rubber Hose and Steel Needle Head.
- Length
- Rubber Hose: 2 m to 10 m, Needle Length: standard 350-400 mm
- Usage
- For vibration and consolidation of freshly poured concrete to ensure strength and eliminate air pockets.
- Power
- 1-3 HP depending on model and needle size
- Application
- High Frequency Concrete Vibrators are used for compacting concrete in construction works such as foundations, columns, beams, slabs, walls, and precast elements.
- Height
- Dependent on model; typical machine unit approx. 400 mm.
- Color
- Yellow and Black
- Operating System
- Electric Motor Driven (High Frequency Induction Motor, 200 Hz-400 Hz)
- Voltage
- 230V / 415V, 50 Hz, AC
- Surface Treatment
- Powder Coated for Corrosion Resistance
- Vibration Frequency
- 12000-18000 vibrations/min (200-300 Hz)
- Start Mechanism
- Direct On/Off Switch with overload protection
- Noise Level
- Less than 75 dB(A) at 1 meter distance
- Protection
- IP55 or higher motor protection
- Cable Length
- Standard 5 m (Can be customized as per need)
- Compatible Concrete Grades
- M5 to M40 and special concrete mixes
- Motor Type
- High Frequency Electric Induction Motor with Air Cooling
About High Frequency Concrete Vibrators
High Frequency Concrete Vibrators are advanced compaction tools used to remove air bubbles and ensure proper settling of concrete in construction applications. These vibrators operate at high frequencies, delivering superior compaction efficiency and producing dense, strong, and uniform concrete structures.
Designed with a high-speed motor and precision-engineered vibrating needle, these machines provide consistent vibration output for improved concrete flow and bonding. They are lightweight, easy to handle, and ideal for use in columns, beams, slabs, and precast structures.
Manufactured using high-quality components, high frequency vibrators offer low noise operation, energy efficiency, and long service life, making them suitable for continuous use in demanding construction environments.
Key Features:
- High frequency output for superior compaction
- Ensures void-free and high-strength concrete
- Lightweight and easy to operate
- Durable and robust construction
- Low noise and energy-efficient performance
- Available in multiple needle sizes
- Minimal maintenance required
Applications:
- RCC columns, beams, and slabs
- Precast concrete elements
- Bridges, dams, and infrastructure projects
- Construction sites and civil engineering works
Specifications (Typical):
- Frequency: 10,00012,000 vibrations/min (approx.)
- Voltage: 220V / 380V (model dependent)
- Needle Diameter: 25 mm to 60 mm
- Motor Power: 1 HP to 3 HP (approx.)
- Shaft Length: 1 m to 6 m (customizable)
Efficient Concrete Compaction
High Frequency Concrete Vibrators use advanced electric induction motors to deliver up to 18,000 vibrations per minute. This high-intensity vibration quickly eliminates air voids and ensures dense, uniform concrete structures, crucial for long-term durability in foundations, beams, and walls.
Robust and User-Friendly Design
Constructed from heavy-duty steel with a powder-coated finish, these vibrators offer superior resistance to corrosion and wear. Ergonomically built, they feature a reliable On/Off switch with overload protection, making them safe and convenient to operate on various construction sites.
Versatility and Customization
Suited for concrete grades M5 to M40 as well as special mixes, the system accommodates needle diameters from 25 mm to 60 mm and hose lengths from 2 m to 10 m. The standard 5-meter cable can be tailored to site requirements, making these vibrators adaptable for different project scales and needs.
FAQ's of High Frequency Concrete Vibrators:
Q: How does a High Frequency Concrete Vibrator improve concrete compaction?
A: By generating intense, rapid vibrations (up to 18,000 per minute), the vibrator eliminates trapped air and excess water, leading to solid, uniform, and highly durable concrete structures. This enhances strength and longevity across various construction elements.Q: What process should be followed when using the vibrator on freshly poured concrete?
A: Insert the steel needle head vertically into the concrete at regular intervals, allowing each area to vibrate briefly until air bubbles dissipate. Avoid over-vibrating to prevent segregation. Move systematically across the slab or formwork for thorough consolidation.Q: When and where should these vibrators be employed on a construction site?
A: Use the vibrators immediately after concrete pouring for best results. They are suitable for compacting concrete in foundations, columns, beams, slabs, walls, and also precast elements wherever dense, void-free concrete is required.Q: What benefits do the air-cooled high frequency motors provide?
A: The electric induction motors feature air cooling for prolonged, efficient operation and minimal maintenance. Their design ensures the vibrators remain reliable even in continuous-duty cycles or challenging site conditions.Q: What safety features and protections are built into these machines?
A: All models are equipped with IP55 or higher-rated motor protection, overload protection switches, heavy-duty steel bodies, and insulated cables to ensure operator safety and equipment durability during use in demanding construction environments.Q: Can the cable and hose lengths be customized based on site needs?
A: Yes, while the standard cable length is 5 meters and hose options range from 2 to 10 meters, both can be tailored to accommodate different site layouts and reach requirements for maximum flexibility.
