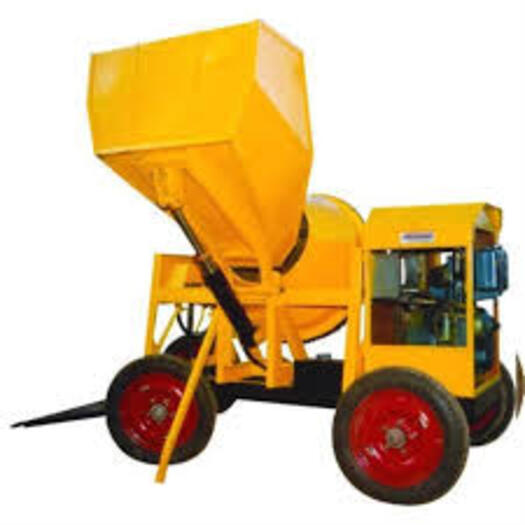

Hydraulic Hopper Concrete Mixer

Name: Hydraulic Hopper Concrete Mixer
Brand: Sami Lab Tek
Price: 210000.0 INR
Availability: InStock

Price 210000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Hydraulic Hopper Concrete Mixer Specification

Motor Power
7.5 HP Electric Motor or 10 HP Diesel Engine

Lifting Height
Up to 30 meters (customizable)

Lifting Speed
20 m/min (approx.)

Surface
Painted

Product Type
Hydraulic Hopper Concrete Mixer

General Use
Construction and concrete mixing

Material
Mild Steel

Type
Mixer with Hydraulic Hopper

Capacity
10/7 Cft per batch

Weight (kg)
1500 kg (approx)

Computerized
No

Automatic
Semi-automatic

Control System
Manual/Lever Operated

Cooling System
Air Cooled

Method
Hydraulic Hopper Lifting

Voltage
220V/440V

Dimension (L*W*H)
2600 x 1600 x 2750 mm (approx.)

Feature
Robust Construction, Portable, Easy Operation

Color
Blue & Yellow

Power Source
Electric Motor/Diesel Engine

Mobility
Towable with site wheels

Chassis
Heavy-duty, reinforced frame with four wheels

Drum Material
Heavy gauge steel

Productivity
8-10 m3/hr

Number of Wheels
4

Discharge System
Tilting Drum

Water Tank Capacity
180 Liters

Drive Type
V-Belt with reduction gear box

Mixing Blades
Two/Three, wear-resistant

Hydraulic Hopper Concrete Mixer Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
5 Pieces Per Month

Delivery Time
10 Days

About Hydraulic Hopper Concrete Mixer

A Hydraulic Hopper Concrete Mixer is a highly efficient construction machine designed for uniform mixing of cement, sand, aggregates, and water. Equipped with a hydraulic hopper lifting system, it ensures smooth and effortless loading of raw materials into the mixing drum, reducing manual labor and increasing productivity.

This machine is widely used at construction sites for residential, commercial, and infrastructure projects due to its robust construction, reliable performance, and ease of operation.

Key Features

Hydraulic hopper system for easy material loading
Heavy-duty mixing drum for uniform concrete mix
Sturdy steel structure ensuring durability
High-performance motor for efficient operation
Easy control panel with user-friendly operation
Low maintenance and long service life
Suitable for continuous operation

Technical Specifications (Typical)

Mixing Capacity: 10/7 CFT or 14/10 CFT
Hopper Type: Hydraulic operated
Motor Power: 5 HP to 10 HP
Drum Speed: 2025 RPM
Voltage: 220V / 415V
Material: Mild Steel
Output Capacity: Approx. 610 batches per hour
Operation: Electric / Diesel Engine

Applications

Building and road construction projects
Infrastructure development works
Small to medium construction sites
Ready-mix and on-site concrete preparation

Advantages

Reduces manual effort and labor cost
Ensures consistent and homogeneous mixing
Faster loading and discharge process
Improves overall work efficiency
Ideal for continuous and heavy-duty use

Additional Information

Hydraulic hopper concrete mixers are designed to deliver high productivity with minimal operator fatigue. The hydraulic system allows smooth lifting and dumping of materials, making it a preferred choice for modern construction projects.

Robust Steel Construction for Longevity

Engineered with heavy gauge mild steel and a reinforced, heavy-duty chassis, the Hydraulic Hopper Concrete Mixer ensures durability and stability on rough terrains. Its surface is painted in blue and yellow for added protection and visibility on job sites. With a weight of approximately 1500 kg, it offers both durability and ease of transport, supported by four sturdy wheels.

Efficient Mixing and User-Friendly Operation

This mixer features a tilting drum mechanism powered by a hydraulic hopper, with wear-resistant blades ensuring thorough and consistent mixing every cycle. The semi-automatic, manual/lever-operated control system allows operators to manage mixing, loading, and discharge with ease, providing productivity rates of 8-10 m3/hr for demanding construction needs.

Adaptable Power Options and Enhanced Mobility

Choose between a 7.5 HP electric motor or a 10 HP diesel engine, making this mixer suitable for varied power supply conditions. Its air-cooled system maintains performance during extended use. The towable design with site wheels and customizable lifting heights (up to 30 meters) guarantees hassle-free mobility and operation on diverse construction sites.

FAQ's of Hydraulic Hopper Concrete Mixer:

Q: How does the hydraulic hopper function in this concrete mixer?

A: The hydraulic hopper uses a lifting system powered by hydraulics, allowing operators to load raw materials efficiently into the drum. This mechanism reduces manual effort, speeds up the batching process, and ensures consistent loading for optimal mixing results.

Q: What type of projects is this concrete mixer suitable for?

A: This concrete mixer is ideal for construction projects of various sizes, including building foundations, roadways, and bridges. Its robust construction, high productivity (8-10 m3/hr), and portability make it suitable for both urban and remote job sites.

Q: When is regular maintenance required for efficient operation?

A: Routine maintenance, such as checking the V-belt, reduction gear box, and mixing blades for wear, should be performed after every significant use or weekly during intensive operations. Ensuring the air-cooled engine and hydraulic system are clean and lubricated will maximize the equipment's lifespan.

Q: Where can this concrete mixer be operated effectively?

A: Due to its heavy-duty reinforced frame and four-wheel design, this mixer can be used effectively on construction sites, including uneven or rough terrain. Its strong chassis and portable features allow for easy movement across various job site locations.

Q: What is the process for operating the concrete mixer?

A: To operate, load materials into the hopper, use the lever/manual control to lift and feed them into the tilting drum, and start the mixing process. After mixing, the drum tilts to discharge the ready concrete. The entire process is semi-automatic, combining manual operation with hydraulic assistance.

Q: How does the portable design benefit construction teams?

A: The mixer's portability, enabled by its towable chassis and four site wheels, allows teams to easily relocate it as project needs shift. This flexibility minimizes downtime and increases productivity, particularly on larger or multi-zone sites.

Q: What are the primary usage and efficiency benefits of this mixer?

A: This mixer ensures fast and thorough concrete mixing with a capacity of 10/7 Cft per batch, producing up to 8-10 m3/hr. Its hydraulic hopper streamlines material handling, while wear-resistant blades and options for electric or diesel power ensure reliable performance under varying conditions.
