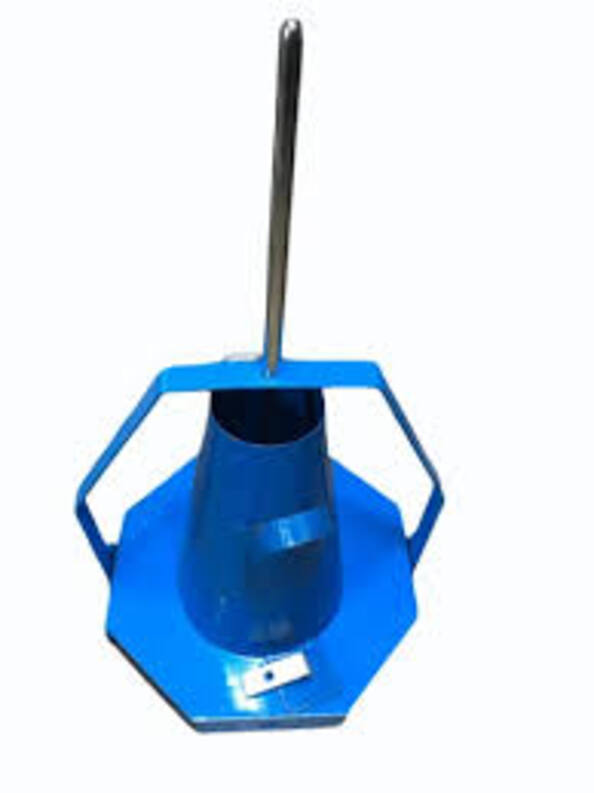

Mild Steel 300 mm Slump Test Apparatus

About Mild Steel 300 mm Slump Test Apparatus

The offered slump test apparatus is manufactured using high-quality mild steel to ensure durability, corrosion resistance, and long service life. The apparatus consists of a slump cone (Abrams cone), tamping rod, and a rigid base plate, making it a complete set for on-site and laboratory testing.

The cone is fabricated in the form of a frustum with smooth internal surfaces for accurate results. It is equipped with handles and foot pieces to provide stability during testing and ease of lifting. The tamping rod is made of steel with a rounded end to ensure proper compaction of concrete layers.

This apparatus is widely used in civil engineering laboratories, construction projects, ready-mix plants, and quality control departments to measure the consistency and workability of fresh concrete mixes.

Technical Specifications

• Material: Mild Steel
• Height: 300 mm
• Top Diameter: 100 mm
• Bottom Diameter: 200 mm
• Tamping Rod: 16 mm dia 600 mm length (rounded end)
• Base Plate: Rigid mild steel / cast iron with handles
• Finish: Powder coated / painted for corrosion resistance
• Standard Compliance: IS 1199 & IS 7320

Key Features

• Rugged mild steel construction for long durability
• Accurate dimensions ensure reliable test results
• Smooth inner surface for easy cleaning and testing
• Equipped with handles and foot pieces for stability
• Portable and easy to operate
• Suitable for field and laboratory use

Applications

• Concrete workability testing
• Construction sites & infrastructure projects
• Civil engineering laboratories
• Quality control in batching plants
