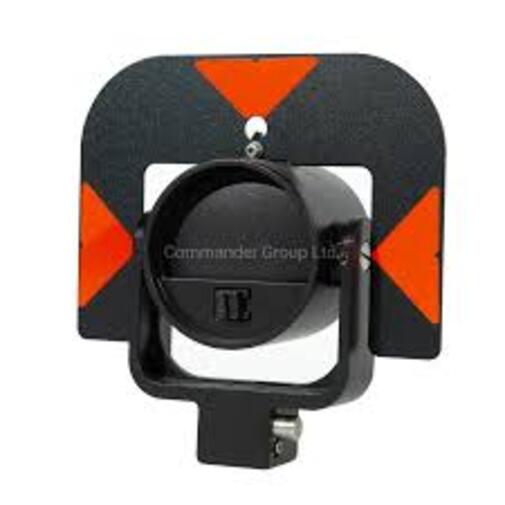

Prism With Target Platee

Name: Prism With Target Platee
Brand: Sami Lab Tek
Price: 8000.0 INR
Availability: InStock

Price 8000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Prism With Target Platee Specification

Application
Surveying, Construction Alignment

Centering Accuracy
<2.0 mm

Prism Holder Type
Copper Coated holder with Plastic Target Plate

Offset
0 mm / +30 mm

Operating Temperature
-25C to +65C

Weight
Approx. 450g

Target Plate Dimensions
140 mm x 100 mm

Effective Reflective Area
62mm

Compatible Instruments
Total Stations, Theodolites

About Prism With Target Platee

The Prism With Target Plate is a high-precision surveying accessory designed for accurate measurement and alignment applications in construction, engineering, and land surveying projects. Manufactured using superior-quality optical glass and durable materials, this prism ensures excellent reflectivity and precise targeting for total stations and surveying instruments.

The attached target plate enhances visibility and accuracy during field operations, making it ideal for long-distance measurements and alignment tasks. Its rugged construction provides resistance against harsh weather conditions and ensures reliable performance in outdoor environments.

Key Features:

High-accuracy optical prism
Durable and weather-resistant construction
Clear and visible target plate
Compatible with most total stations
Easy mounting and alignment
Ideal for surveying and construction applications

Applications:

Land surveying
Construction layout work
Railway and road projects
Mining and engineering surveys
Industrial alignment applications

Precision and Versatility for Survey Professionals

Designed for accurate fieldwork, this prism and target plate set excels in both urban and remote settings. The copper-coated holder delivers robust stability, while the large reflective area assures clear signal returns from compatible instruments. Accurate centering and easy setup streamline any surveying or alignment task.

Compatible with Leading Survey Instruments

Engineered to fit seamlessly with Total Stations and Theodolites, this system accommodates standard industry practices. Its precisely calibrated offset choices of 0 mm or +30 mm adapt to a wide range of measurement requirements, offering surveyors and construction teams flexibility and consistency in all projects.

FAQ's of Prism With Target Platee:

Q: How is the Prism With Target Plate installed and aligned during surveying operations?

A: The prism is securely fixed using its copper-coated holder. To align, place the plastic target plate at the required location and ensure it faces the instrument. Use the centering feature to achieve accuracy of under 2.0 mm, making it suitable for detailed surveying and construction alignment.

Q: What are the primary benefits of using this prism and plate system in construction and surveying?

A: This system delivers precise measurements thanks to its large reflective area and high centering accuracy. It is durable, adaptable for various weather conditions, and compatible with leading instruments, enhancing workflow efficiency and reliability on site.

Q: When should the 0 mm or +30 mm offset be used?

A: Choose the 0 mm offset for standard measurements directly from the prism location. The +30 mm offset is ideal when adjustments or extended reference points are necessary, enabling flexibility to meet specific surveying requirements.

Q: Where can this prism and target plate be employed?

A: It is suitable for both outdoor and indoor environments, including construction sites, open land surveys, and alignment projects. Its wide operational temperature range allows reliable performance in both cold and hot climates.

Q: What instruments are compatible with this prism and target plate system?

A: The prism is designed to work with Total Stations and Theodolites, making it a versatile choice for professionals using industry-standard surveying instruments.

Q: What is the process for ensuring centering accuracy with this prism system?

A: Once installed, use the integrated centering mechanism and alignment marks on the target plate to adjust until the alignment is within the specified <2.0 mm tolerance. This ensures optimal accuracy during measurement tasks.

Q: How does the construction of the holder and target plate improve usage in field conditions?

A: The copper-coated holder is robust and corrosion-resistant, while the plastic target plate is lightweight and highly visible. This construction makes the system durable, easily transportable, and quick to deploy in demanding fieldwork environments.
