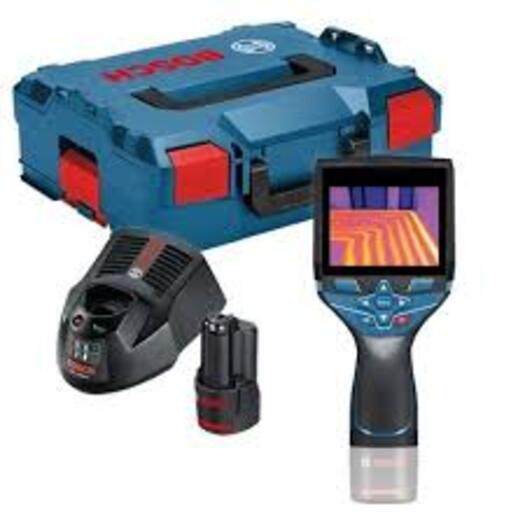

Thermal Image Camera Bosch Gtc 400

About Thermal Image Camera Bosch Gtc 400

The Bosch GTC 400 Thermal Imaging Camera is a professional-grade infrared thermal camera used for detecting temperature differences in buildings, electrical systems, and mechanical installations. It quickly converts heat patterns into clear visual images, helping users identify problems such as heat loss, insulation defects, water leakage, and overheating components.

This tool is widely used by engineers, electricians, HVAC technicians, and building inspectors for fast and accurate non-contact temperature analysis.

Key Features

• Thermal Imaging Display with clear heat map visualization
• Picture-in-Picture (PiP) Mode combines thermal and real images for easy identification
• Wide Temperature Range from -10C to +400C
• High Sensitivity (NETD < 50 mK) for detecting small temperature changes
• 160 120 IR Sensor (19,200 measuring points) for detailed thermal images
• Internal memory storage (up to 500 images) for documentation
• Wi-Fi & Micro USB connectivity for fast data transfer and reporting
• Rugged design with IP53 protection for job-site use

Technical Specifications

• Temperature Range: -10C to +400C
• Accuracy: 3C (approx.)
• IR Resolution: 160 120 pixels
• Thermal Sensitivity: <50 mK
• Field of View: 53 43
• Display Size: 3.5 inch
• Weight: approx. 0.5 kg
• Image Format: .jpg
• Battery: 12V Li-ion or AA battery support

Applications

• Electrical panel inspection (overheating detection)
• Building insulation and energy loss analysis
• Water leakage and moisture detection
• HVAC system troubleshooting
• Industrial maintenance and equipment monitoring

Advantages

• Quick identification of hidden problems without damage
• Easy-to-use interface with instant thermal imaging
• Improves safety in electrical and mechanical inspections
• Portable and suitable for field use
