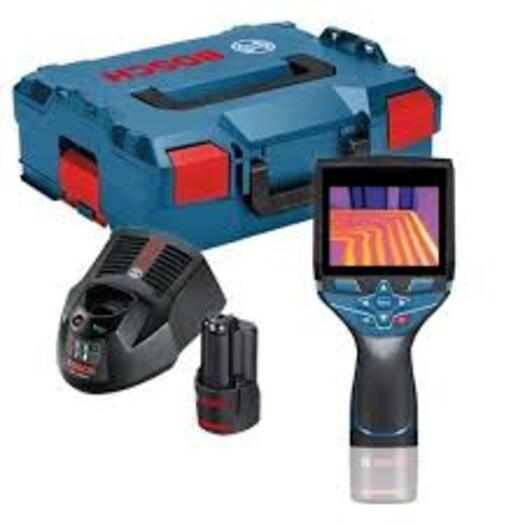

Thermal Image Camera Bosch Gtc 400

Name: Thermal Image Camera Bosch Gtc 400
Brand: Sami Lab Tek
Price: 60000.0 INR
Availability: InStock

Price 60000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Thermal Image Camera Bosch Gtc 400 Specification

Frame Rate
9 Hz

Thermal Sensitivity
< 50 mK

Temperature Range
-10C to +400C

Display
3.5 inch color display

Emissivity Setting
Adjustable: 0.01 to 1.00

Storage Temperature
-20C to +70C

Protection Class
IP53

Focus
Fixed focus

Operating Temperature
-10C to +45C

Data Transfer
Micro USB, WiFi

Software Compatibility
GTC Transfer software, Bosch Measuring Master app

IR Sensor
Uncooled microbolometer

Field of View
53 x 43

Resolution
160 x 120 pixels

Image Storage
Internal memory and MicroSD card

Measurement Accuracy
3C or 3% of reading

Power Supply
12V Li-ion battery or 4 x AA (optional adapter)

Visual Camera Resolution
0.3 MP

Color Palettes
Iron, Rainbow, Cold-Hot, Gray

Model
Gtc 400

Laser Pointer
Integrated

Tripod Mount
1/4" thread

Battery Type
12V Li-ion

About Thermal Image Camera Bosch Gtc 400

The Bosch GTC 400 Thermal Imaging Camera is a professional-grade infrared thermal camera used for detecting temperature differences in buildings, electrical systems, and mechanical installations. It quickly converts heat patterns into clear visual images, helping users identify problems such as heat loss, insulation defects, water leakage, and overheating components.

This tool is widely used by engineers, electricians, HVAC technicians, and building inspectors for fast and accurate non-contact temperature analysis.

Key Features

Thermal Imaging Display with clear heat map visualization
Picture-in-Picture (PiP) Mode combines thermal and real images for easy identification
Wide Temperature Range from -10C to +400C
High Sensitivity (NETD < 50 mK) for detecting small temperature changes
160 120 IR Sensor (19,200 measuring points) for detailed thermal images
Internal memory storage (up to 500 images) for documentation
Wi-Fi & Micro USB connectivity for fast data transfer and reporting
Rugged design with IP53 protection for job-site use

Technical Specifications

Temperature Range: -10C to +400C
Accuracy: 3C (approx.)
IR Resolution: 160 120 pixels
Thermal Sensitivity: <50 mK
Field of View: 53 43
Display Size: 3.5 inch
Weight: approx. 0.5 kg
Image Format: .jpg
Battery: 12V Li-ion or AA battery support

Applications

Electrical panel inspection (overheating detection)
Building insulation and energy loss analysis
Water leakage and moisture detection
HVAC system troubleshooting
Industrial maintenance and equipment monitoring

Advantages

Quick identification of hidden problems without damage
Easy-to-use interface with instant thermal imaging
Improves safety in electrical and mechanical inspections
Portable and suitable for field use

Efficient Thermal Diagnostics Anywhere

The Bosch GTC 400 empowers technicians to swiftly identify temperature differences, even in challenging locations, thanks to its portable design, adjustable power supplies, and flexible data exporting options. Its robust operating temperature range and IP53 protection ensure reliability in various climates and working conditions across India.

User-Friendly Interface and Versatile Software

With a 3.5-inch color display, selecting between color palettes (Iron, Rainbow, Cold-Hot, Gray) is straightforward. The camera is compatible with Bosch GTC Transfer software and the Measuring Master app, streamlining image management and reporting. Its fixed focus and adjustable emissivity enhance precise readings, while the one-click export simplifies sharing results.

FAQ's of Thermal Image Camera Bosch Gtc 400:

Q: How do I transfer thermal images from the Bosch GTC 400 to my computer or mobile device?

A: You can transfer images using the Micro USB connection for direct transfer to a computer, or wirelessly via the built-in WiFi. Both Bosch GTC Transfer software and the Measuring Master app are supported, enabling seamless exporting, sharing, and documentation of your thermal images.

Q: What is the benefit of the adjustable emissivity setting on the GTC 400 camera?

A: The adjustable emissivity (0.01 to 1.00) lets you fine-tune the device for different materials' surfaces, enabling more accurate temperature readings. This feature is crucial for professionals inspecting a wide range of construction, electrical, or mechanical components.

Q: When should I use the different color palettes provided by the camera?

A: The camera offers Iron, Rainbow, Cold-Hot, and Gray palettes, each enhancing visibility in various situations. Use 'Iron' for clear differentiation of temperature ranges, 'Rainbow' for visual emphasis, 'Cold-Hot' for quick anomaly identification, and 'Gray' for subtle contrasts in temperature mapping.

Q: What is the process for switching between power supply options on the GTC 400?

A: The thermal camera operates on a 12V Li-ion battery for extended use, but can also run on four AA batteries using an optional adapter. To switch, simply remove the current battery or attach the adapter as needed, allowing flexibility in locations where charging is not readily available.

Q: Where can the Bosch GTC 400 be mounted for stable operation?

A: For hands-free or stable use, the camera features a standard 1/4-inch tripod mount. Simply attach it to a compatible tripod, which is especially helpful when capturing multiple images or conducting long-duration inspections.

Q: How does the integrated laser pointer assist in the usage of the camera?

A: The laser pointer provides a visual reference on the subject, helping users accurately target and identify the exact spot being measured, making thermal inspection more precise in field or industrial environments.

Q: What types of environments and temperatures is the GTC 400 designed for?

A: With a durable IP53 protection rating, the GTC 400 is resistant to dust and light water spray. It operates reliably in temperatures from -10C to +45C, and can be safely stored in temperatures from -20C to +70C, making it ideal for diverse Indian conditions.
