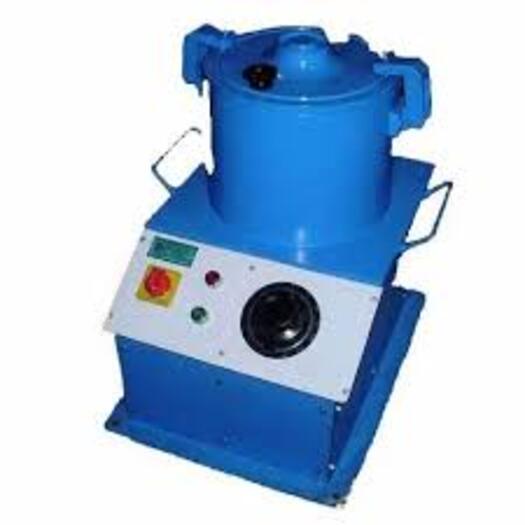

Bitumen Extractor Electrically Operated

Name: Bitumen Extractor Electrically Operated
Brand: Sami Lab Tek
Price: 17500.0 INR
Availability: InStock

Price 17500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Bitumen Extractor Electrically Operated Specification

Product Type
Bitumen Extractor Electrically Operated

Capacity
1500 g (approximate, 1.5 Kg per batch)

Dimension (L*W*H)
410 mm x 410 mm x 600 mm

Frequency
50 Hz

Accuracy
High Extraction Accuracy

Frame Type
Heavy Metal Stand Frame

Weight
Approx. 35-40 kg

Gauge
Standard Pressure Gauge

Phase
Single Phase

Color
Blue & Silver

Stroke
Standard Extraction Stroke

Power
Electric Motor Driven

Load Power
0.25 HP Motor

Power Supply
Electric

Control Mode
Electrical Switch

Speed Range
Standard Speed

Voltage
220 V AC

Usage & Applications
For determination and separation of bitumen from asphaltic paving mixtures

Features
Rugged Construction, Efficient Extraction, Removable Bowl, Solvent Resistant Finish

Display Type
Analog Meter

Automation Grade
Semi-Automatic

Safety Features
Locking Arrangement and Safety Cover

Accessories Included
Centrifuge Bowl, Filter Paper Pack, Instruction Manual

Mounting Type
Table Top

Noise Level
Low

Sample Processing Time
5-10 minutes per batch

Number of Bowls
1 Removable

Finish Type
Powder Coated

Bowl Capacity
1.5 Liter

Operating Temperature Range
Ambient to 50C

Extraction Bowl Material
Stainless Steel

Solvent Compatibility
Compatible with Trichloroethylene and similar solvents

Drive Type
Belt Driven

Bitumen Extractor Electrically Operated Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
100 Pieces Per Month

Delivery Time
7 Days

About Bitumen Extractor Electrically Operated

Bitumen Extractor Electrically Operated is a precision laboratory instrument used for determining the percentage of bitumen in bituminous paving mixtures and road samples. The test is carried out by dissolving bitumen in a solvent and separating it from aggregates through centrifugal action.

The apparatus consists of a removable aluminum rotor bowl, cylindrical housing, vertical shaft, and electric motor drive system. The electrically operated model is equipped with a variable speed control mechanism, enabling smooth operation within a standard speed range of 24003600 RPM for accurate extraction.

This equipment is widely used in civil engineering laboratories, highway construction projects, and quality control labs for asphalt mix analysis.

Key Features

Electrically operated motor with variable speed control
High-speed centrifuge action for efficient extraction
Removable rotor bowl for easy cleaning and weighing
Durable mild steel / aluminum construction
Oil-bath gear system for smooth operation
Compact and portable design

Technical Specifications

Capacity: 1000 g 1500 g sample
Speed Range: 2400 3600 RPM
Motor: 0.25 HP geared motor
Power Supply: 230V AC, Single Phase, 50 Hz
Material: Mild Steel body with aluminum rotor bowl
Standards: ASTM D2172, AASHTO T58, T164

Applications

Determination of bitumen content in asphalt mixtures
Road construction and pavement quality control
Bitumen mix design laboratories
Research and testing institutes

Working Principle

The bituminous sample is mixed with a solvent and placed in the rotor bowl. When the machine rotates at high speed, the bitumen dissolves and is separated from aggregates by centrifugal force, and the extracted solution is collected for analysis.

Efficient Bitumen Extraction

This extractor harnesses a belt-driven, 0.25 HP electric motor to provide quick and accurate bitumen separation from asphalt mixtures. Its stainless steel removable bowl and powder-coated finish ensure durability even in demanding environments. Operating at ambient to 50C, it produces minimal noise and is easy to install anywhere with standard 220V AC power supply.

Enhanced Safety and Convenience Features

Safety is addressed through a secure locking arrangement and safety cover, while its tabletop design and inclusion of key accessories like an instruction manual make setup and day-to-day operation straightforward. Removable bowls support fast sample turnaround, and the rugged frame protects against frequent use in busy labs.

FAQ's of Bitumen Extractor Electrically Operated:

Q: How is the bitumen extraction process carried out using this electrically operated extractor?

A: Bitumen extraction is performed by placing the sample into the stainless steel removable bowl, adding a compatible solvent (such as trichloroethylene), and securing the safety cover. The centrifuge then operates via electric motor, spinning at standard speed to separate bitumen from aggregates effectively within 5-10 minutes.

Q: What safety features are incorporated in this extractor?

A: The extractor is equipped with a robust locking arrangement and a safety cover, ensuring secure operation by preventing access during use. The heavy metal stand frame and powder-coated finish add durability and user protection.

Q: When should the stainless steel bowl and filter paper be replaced?

A: The removable stainless steel bowl and filter paper should be inspected regularly. Replace the bowl if you notice significant wear or damage, and change the filter paper after each extraction cycle or when it becomes clogged to maintain high extraction accuracy.

Q: Where is this Bitumen Extractor suitable for use?

A: This extractor is ideal for road construction laboratories, quality control departments, research centers, and any facility involved in the analysis of asphaltic paving mixtures. Its compact tabletop design (410 mm x 410 mm x 600 mm) makes it convenient for various workspaces.

Q: What are the main benefits of using this bitumen extractor?

A: Key advantages include high extraction accuracy, rapid processing time per batch, compatibility with common solvents, rugged construction for long life, and safety-focused features. The removable bowl and efficient extraction process maximize productivity and ease of maintenance.

Q: How do I operate and control the machine during extraction?

A: Operation is simple: place your prepared sample in the bowl, add solvent, secure the safety cover, and use the electrical switch control to start and stop the centrifuge. The analog meter and standard pressure gauge assist in monitoring the process for optimal results.
