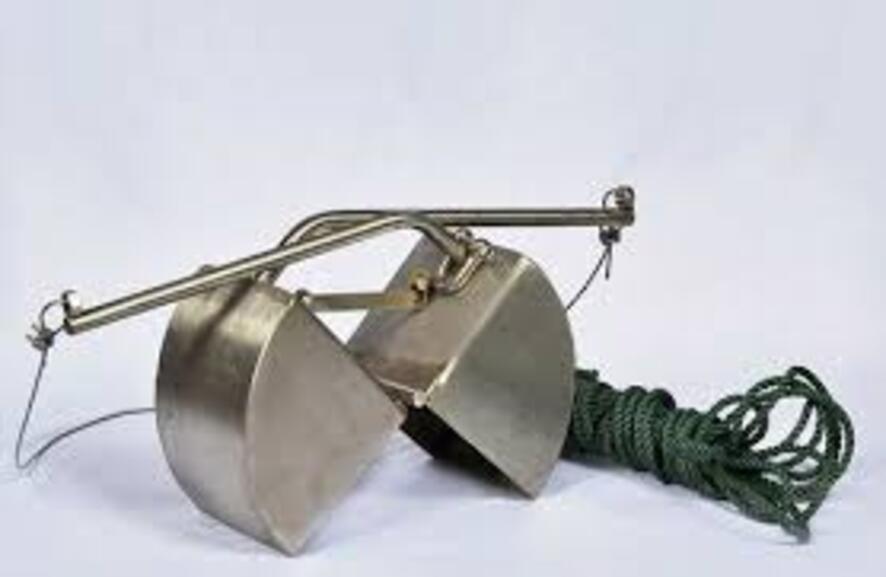

Van Veen Grab Bed Load Sampler

About Van Veen Grab Bed Load Sampler

The Van Veen Grab Bed Load Sampler is a robust and efficient designed for collecting bottom sediment (bed load) samples from rivers, lakes, reservoirs, and marine environments. It operates on a clamshell (grab) mechanism, enabling precise sampling of surface sediments with minimal operational effort.

This sampler is widely used in hydrological studies, environmental monitoring, dredging surveys, and sediment analysis.

Key Features:

• High-Quality Construction: Made from corrosion-resistant stainless steel for long service life
• Clamshell Design: Dual jaws open during lowering and automatically close upon contact with the bed
• Accurate Sampling: Ensures effective collection of surface sediments (typically up to ~20 cm depth)
• Easy Operation: Rope or cable operated; suitable for manual or winch deployment
• Multiple Capacities: Available in different sizes to suit varied sampling requirements
• Minimal Sample Loss: Mesh screens and flaps allow water flow while retaining sediment

Working Principle:

The sampler is lowered into the water with its jaws locked in an open position. When it touches the bed, the locking mechanism releases, and upon lifting, the jaws close tightly to capture sediment samples from the bottom surface .

Applications:

• River and canal bed load sampling
• Marine and coastal sediment studies
• Environmental impact assessments
• Wastewater and sludge analysis
• Geological and hydrological surveys

Technical Highlights:

• Sampling Area: Approx. 0.1 m (varies by model)
• Sampling Depth: Up to ~20 cm
• Material: Stainless Steel (SS 304 / SS 316)
• Operation: Manual / Winch-based
• Suitable Sediment: Soft to medium bed material

Advantages:

• Simple and reliable design
• Quick sample collection
• Portable and easy to maintain
• Suitable for field and laboratory studies

Limitations:

• Disturbs sediment structure compared to core samplers
• Not ideal for very hard or rocky beds
