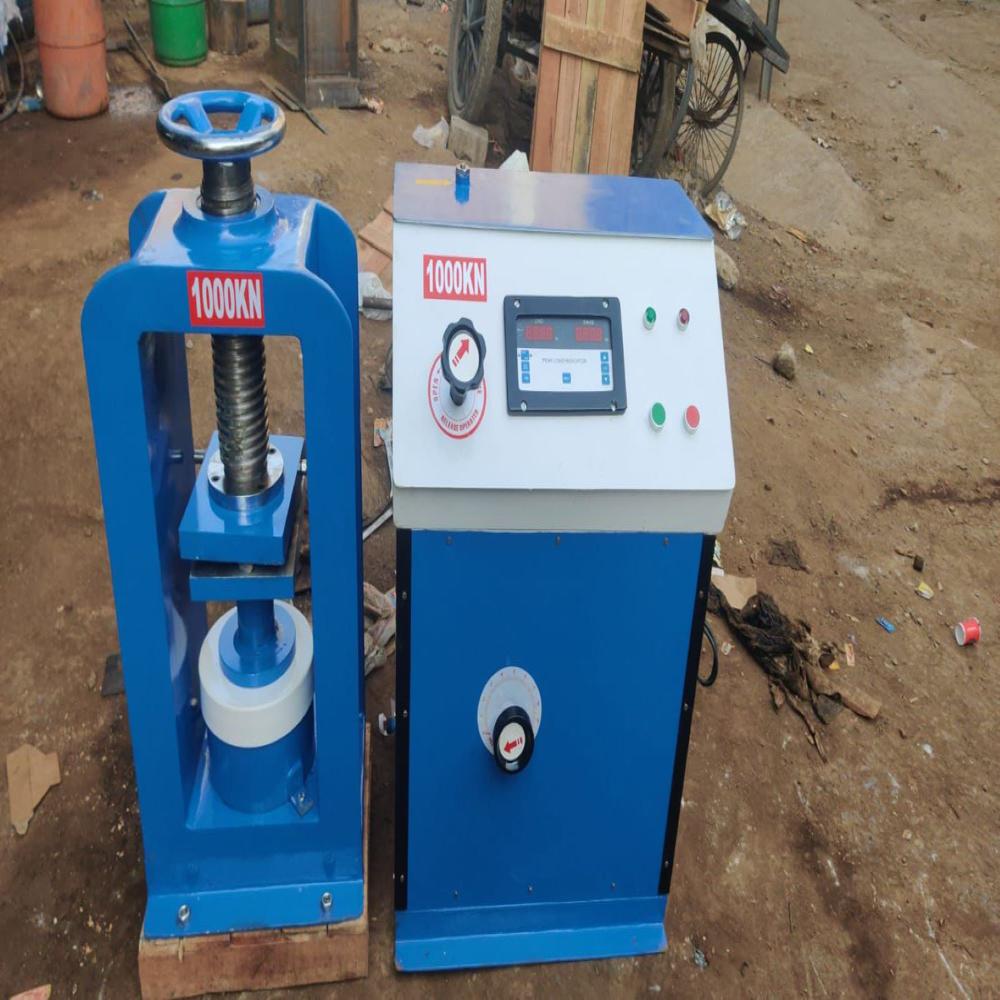

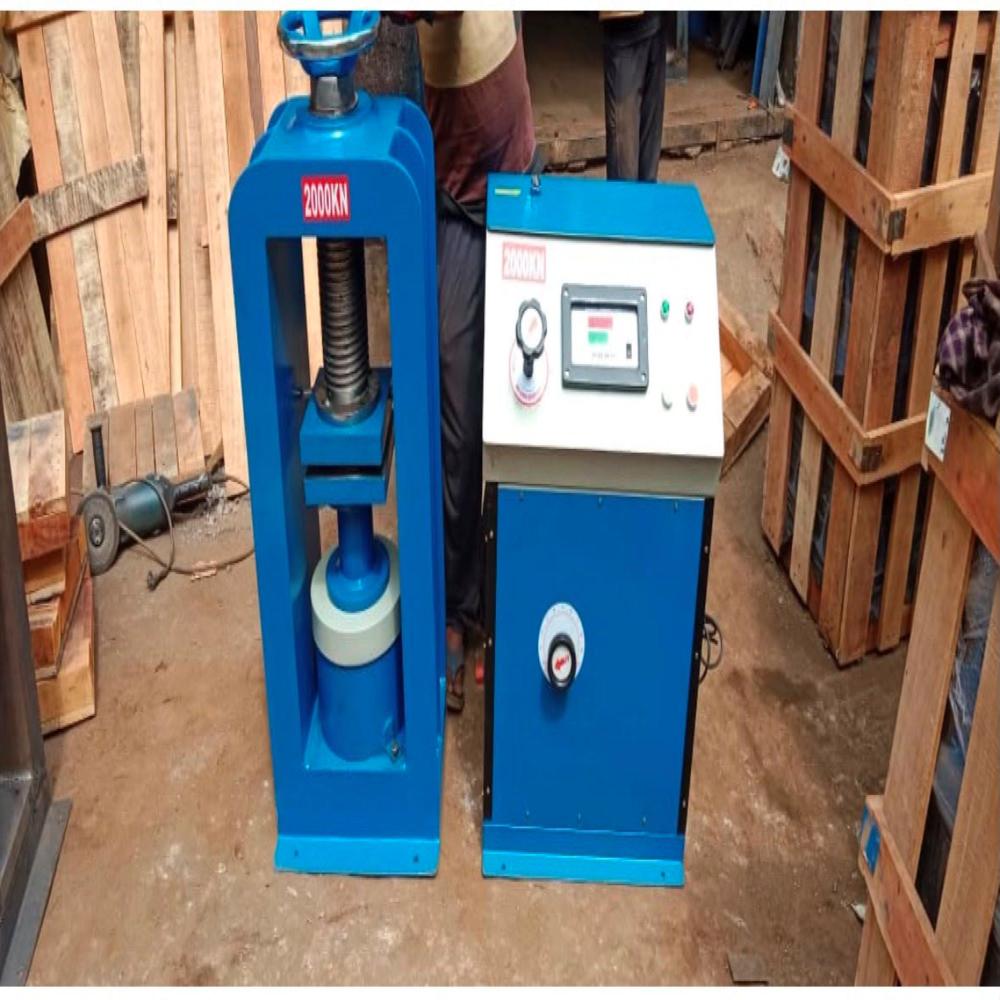

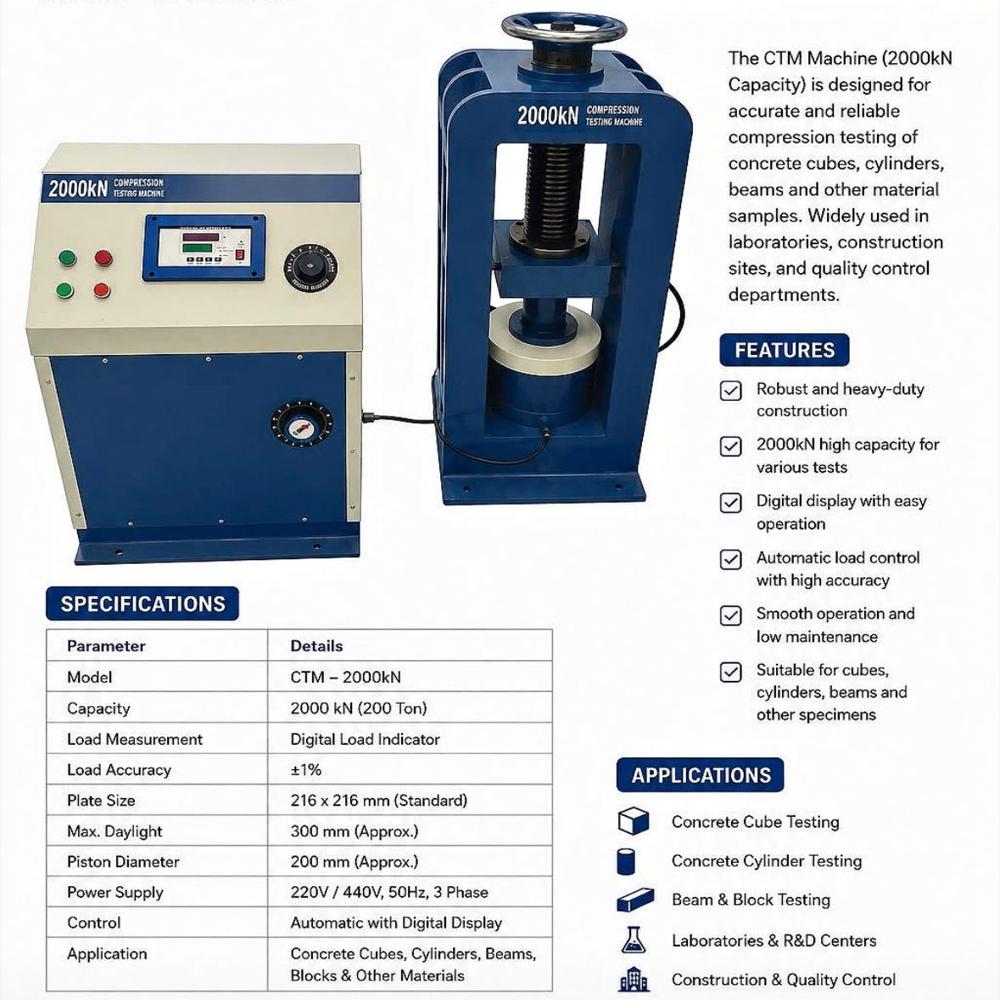

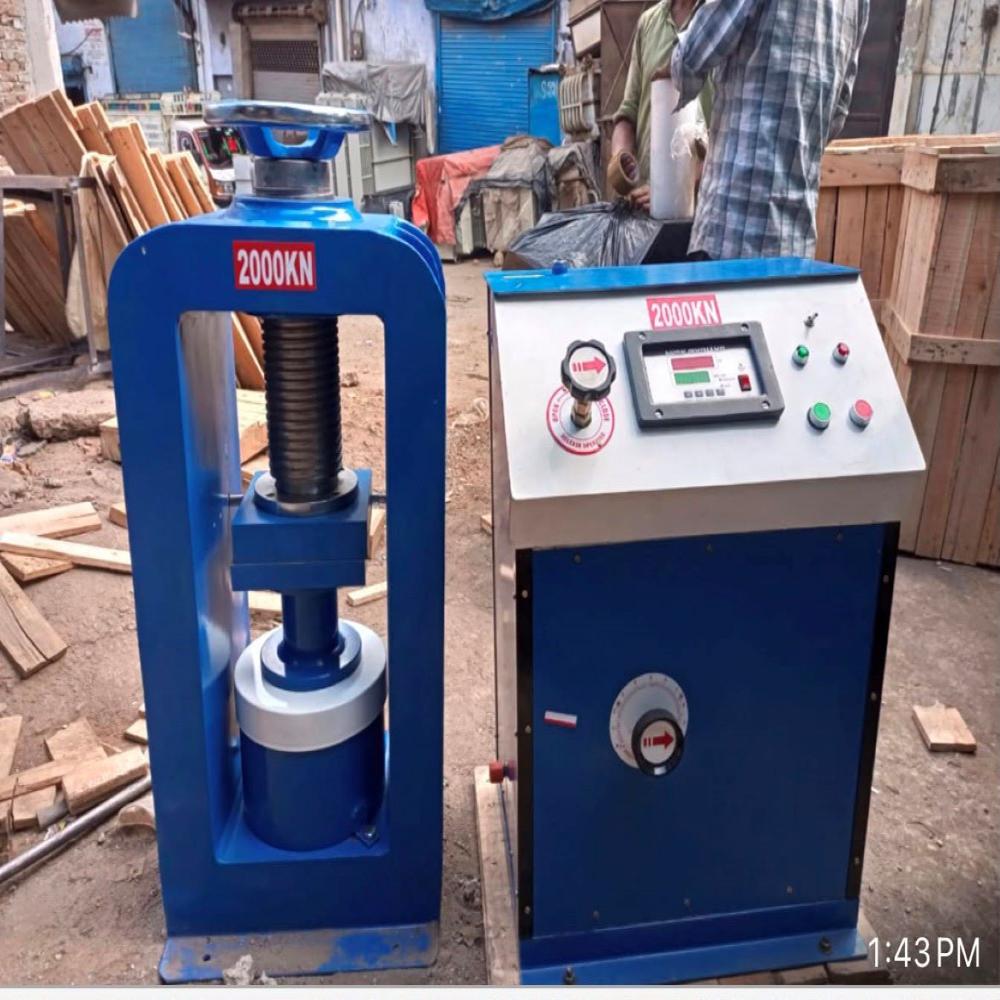

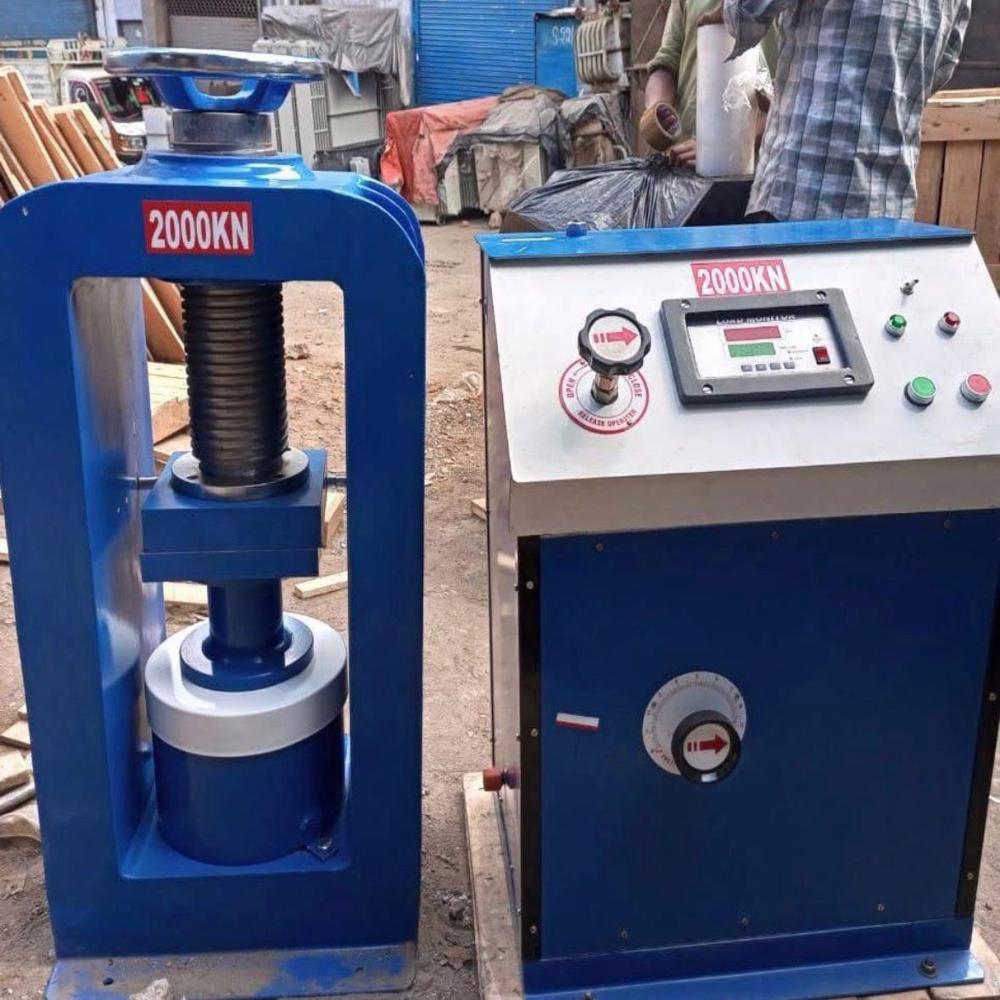

Send InquiryCompression Testing Machine Electrical Cum Hand Operated
Price 120000.0 INR/ Piece
MOQ : 1 Piece
Compression Testing Machine Electrical Cum Hand Operated Specification
- Product Type
- Compression Testing Machine Electrical Cum Hand Operated
- Gauge
- Pressure gauge provided Meter
- Dimension (L*W*H)
- 85 x 55 x 112 cm Meter (m)
- Color
- Blue & White
- Frame Type
- Welded frame
- Stroke
- 50 mm
- Capacity
- 100 Ton
- Accuracy
- Class 1 gm
- Speed Range
- 0-50 mm/min
- Load Power
- 1000 kN
- Power Supply
- AC Mains
- Frequency
- 50 Hz Hertz (HZ)
- Voltage
- 230 V Volt (v)
- Control Mode
- Semi automatic
- Features
- Electrical cum hand operated
- Power
- Motorized & Hand Operated kilovolt (kV)
- Weight
- Approx. 250 kg Kilograms (kg)
- Phase
- Single phase
- Usage & Applications
- Compression test on cubes & cylinders
- Display Type
- Digital
- Automation Grade
- Manual
- Oil Tank Capacity
- Approx. 15 Litres
- Hand Pump Included
- Yes
- Piston Dia
- 120 mm
- Max Cube Size
- 150 mm
- Housing
- Heavy duty steel
- Motor Type
- Single phase induction
- Platen Size
- 165 mm dia
- Max Cylinder Dia
- 150 mm
- Finish
- Powder coated
Compression Testing Machine Electrical Cum Hand Operated Trade Information
- Minimum Order Quantity
- 1 Piece
- Payment Terms
- Cash in Advance (CID)
- Supply Ability
- 10 Pieces Per Month
- Delivery Time
- 1 Days
- Main Domestic Market
- All India
Compression Testing Machine Electrical Cum Hand Operated About
Hand operated is ideal for the mobile van or for the place where power is not easily available. Here, you have to pump the machine with the help of your hand and observe the reading on the gauge. Following are the salient featuresof the hand operated CTM is as follows.- Specially designed dual speed hand pump for easy pumping.
- Pressure gauge with red needle to record the reading at the failure point.
- Robust and rugged product.
- Least count will be 0.5% of the full load.
- Accuracy will be 2% of the applied load.
- 20% over load safe.
- Following capacity available in this category.
- Digital dial gauge in hand operated variant also available.
