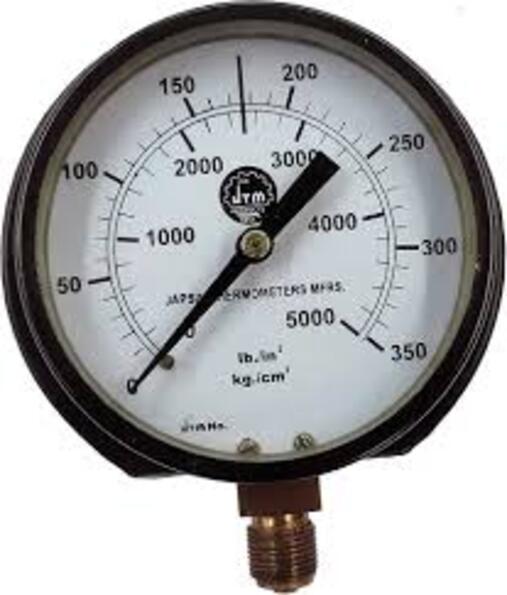

Ctm Pressure Gauge

About Ctm Pressure Gauge

A CTM Pressure Gauge is a precision instrument used in a Compression Testing Machine (CTM) to measure the load applied on concrete, cement cubes, cylinders, and other construction materials during compression testing. It ensures accurate reading of pressure or load, helping determine the strength and quality of materials.

This gauge is designed for durability, accuracy, and reliable performance in laboratory and field testing environments. It is widely used in construction material testing laboratories, quality control departments, and civil engineering institutions.

---

Key Features

• High accuracy and reliable load measurement
• Compatible with standard Compression Testing Machines (CTM)
• Easy-to-read dial for quick interpretation
• Rugged and durable construction
• Shock-resistant and long service life
• Low maintenance design
• Suitable for continuous laboratory use

---

Technical Specifications (Typical)

• Type: Analog / Digital (as per model)
• Range: 100 kN to 3000 kN (varies by CTM capacity)
• Dial Size: Standard large readable dial
• Accuracy: As per testing standards
• Mounting: CTM compatible fitting
• Material: Heavy-duty steel casing

---

Applications

• Concrete compressive strength testing
• Cement cube and cylinder testing
• Construction material testing laboratories
• Quality control in construction projects
• Civil engineering research and education

---

Advantages

• Ensures precise load measurement
• Improves reliability of test results
• Easy installation and operation
• Long-lasting and robust performance
• Essential for accurate compression testing

---

Additional Information

The CTM Pressure Gauge plays a critical role in determining the compressive strength of concrete and other building materials. It ensures accurate load readings, which are essential for maintaining construction quality and safety standards.

Versatile Pressure Measurement for Industrial Needs

The CTM Pressure Gauge is engineered to adapt to diverse industrial environments, with a choice of connection sizes, mounting styles, and robust case materials. Its construction ensures durability, whether installed in factories, process plants, or hydraulic systems. The clear dial face, available in multiple sizes, provides precise and legible readings, making it ideal for efficient process monitoring and safety.


Engineered for Accuracy and Durability

Featuring a bourdon tube mechanism and precise scaling up to 0-300 PSI, the CTM Pressure Gauge is reliable for continuous operation in demanding conditions. Its corrosion-resistant body and toughened glass or acrylic window enhance longevity, while the white face with black markings ensures clear visibility. Built to conform to ASME and EN standards, it guarantees trustworthy performance in professional settings.
