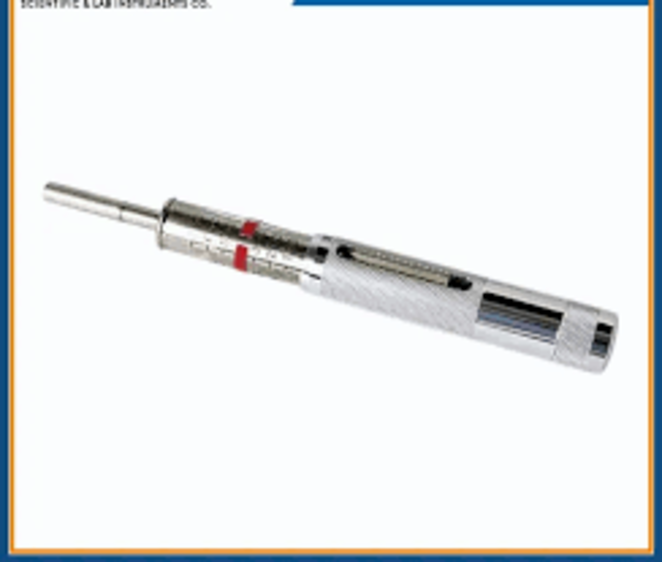

Concrete Pocket Penetrometer

Name: Concrete Pocket Penetrometer
Brand: Sami Lab Tek
Price: 3000.0 INR
Availability: InStock

Price 3000.0 INR/ Set

Get a Price/Quote

MOQ : 1 Set

Concrete Pocket Penetrometer Specification

Automation Grade
Manual

Interface Type
Direct/Manual

Mounting Type
Handheld

Equipment Type
Concrete Pocket Penetrometer

Resolution
0.1 kg/cm2

Accuracy
0.25 kg/cm2

Features
Lightweight, Portable, Easy to Operate, Corrosion Resistant

Max Height
Approx 15 cm

Response Time
Instant

Application
Determining the initial set of concrete; evaluating the field strength of fresh concrete

Display Type
Analog Scale

Test Range
0 to 4.5 tons/sq.ft

Measuring Range
0 to 4.5 tons/sq.ft (0-4.5 kg/cm2)

Number of Specimens
Single Use

Usage
Test Fresh Concrete

Capacity
4.5 tons/sq.ft

Machine Weight
290 g approx

Control Mode
Manual

Spring Type
Pre-calibrated compression spring

Scale Graduation
0.1 kg/cm2

Penetration Depth
25 mm

Length
Approx 155 mm

Plunger Size
1/4 inch diameter (6.35 mm)

Storage Case
Supplied with carrying case for protection

Diameter
Approx 25 mm

Body Material
Chrome plated steel

Operating Principle
Measures resistance of fresh concrete to penetration

Compliances
ASTM C403, IS:8142

About Concrete Pocket Penetrometer

A Concrete Pocket Penetrometer is a compact, handheld testing instrument used to quickly determine the approximate compressive strength of fresh concrete or soil. It provides instant field readings by measuring penetration resistance, making it highly useful for on-site quality control during construction work.

This lightweight and portable device is designed for easy operation without the need for external power, making it ideal for rapid testing in field conditions.

Key Features

Compact and lightweight pocket-type design
Quick and easy field testing instrument
Direct reading of penetration resistance
Durable stainless steel construction
Spring-loaded mechanism for accuracy
No power supply required

Technical Specifications (Typical)

Type: Pocket / handheld penetrometer
Measurement Range: As per model (typically 05 kg/cm or similar)
Scale: Calibrated dial or push indicator
Material: Stainless Steel / Aluminium body
Operation: Manual spring-loaded system
Portability: Handheld design for field use

Applications

Quick assessment of fresh concrete strength
Field testing in construction sites
Soil compaction and consistency checks
Civil engineering inspection work
Quality control during concrete pouring

Advantages

Instant and easy field measurements
No electricity or batteries required
Highly portable and convenient
Cost-effective testing solution
Useful for preliminary strength estimation

Additional Information

The Concrete Pocket Penetrometer is an essential field testing tool for engineers and site supervisors. It provides a quick indication of concrete or soil strength, helping in decision-making during construction activities.

Accurate Measurement of Fresh Concrete Resistance

This handheld instrument directly determines the resistance of fresh concrete to penetration, enabling quick assessment of its initial set time and field strength. With an operating range of 0 to 4.5 tons/sq.ft and a high-resolution analog scale, it provides precise, reliable results vital for quality control in construction projects.

Durable Construction for Demanding Environments

Built with a chrome-plated steel body and pre-calibrated compression spring, the penetrometer withstands harsh site conditions while remaining lightweight and portable. Its corrosion-resistant design ensures longevity and dependable performance throughout repeated use.

User-Friendly Design and Portability

The compact build-approximately 155 mm in length and weighing just 290 g-makes this penetrometer convenient to carry and simple to operate entirely by hand. It is supplied with a protective case for safe storage and transport between job sites.

FAQ's of Concrete Pocket Penetrometer:

Q: How does the Concrete Pocket Penetrometer measure concrete setting?

A: The penetrometer operates by manually pressing the 1/4 inch plunger into fresh concrete to a depth of 25 mm, measuring the resistance encountered. The analog scale displays the concrete's resistance in kg/cm2 or tons/sq.ft, allowing assessment of setting and strength.

Q: What is the typical usage process for this penetrometer?

A: To use, press the chrome-plated plunger into fresh concrete to the marked depth. The device's instant analog response displays the resistance on the scale. Record the value to determine the concrete's initial set or estimate its field strength.

Q: When should I use this pocket penetrometer during construction?

A: It is best used immediately after mixing and placing concrete, during the initial setting phase. This helps ensure proper timing for subsequent finishing operations or formwork removal based on real-time strength data.

Q: Where can this penetrometer be used?

A: The lightweight and portable design makes it suitable for field testing at construction sites, quality control labs, or anywhere fresh concrete's setting characteristics need prompt assessment.

Q: What are the benefits of using this pocket penetrometer in concrete testing?

A: Key benefits include rapid, accurate determination of initial concrete set and field strength, compliance with industry standards (ASTM C403, IS:8142), and enhanced job site efficiency by supporting timely construction decisions.
