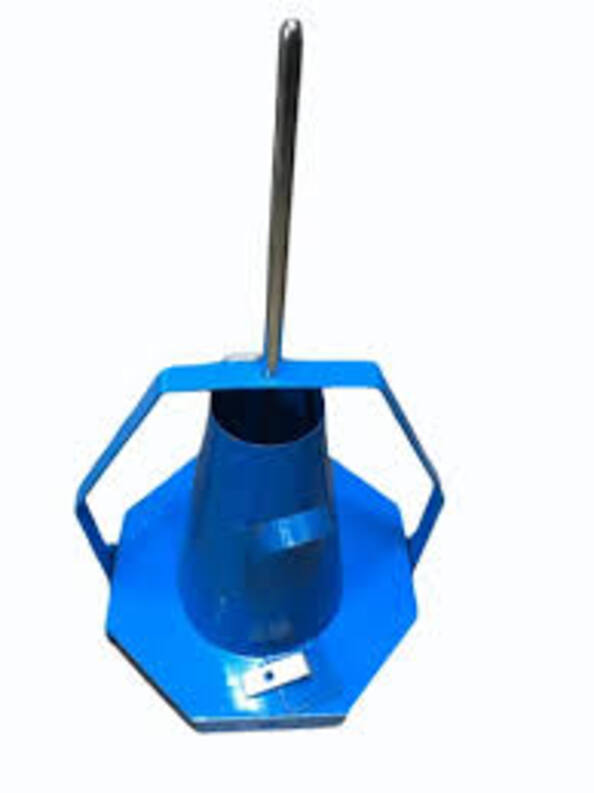

Concrete Slump Test Apparatus

Name: Concrete Slump Test Apparatus
Brand: Sami Lab Tek
Price: 2100.0 INR
Availability: InStock

Price 2100.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Concrete Slump Test Apparatus Specification

Specimen Size
300 mm height, 200 mm base diameter, 100 mm top diameter Millimeter (mm)

Equipment Type
Slump Test Apparatus

Color
Blue

Resolution
1 mm

Number of Specimens
One per test

Automation Grade
Manual

Test Range
0 - 300 mm slump

Temperature
Ambient Fahrenheit (oF)

Measuring Range
0 - 300 mm Rankine

Display Type
Not Applicable (visual measurement)

Interface Type
Manual

Accuracy
1 mm gm

Humidity
Ambient

Application
Fresh concrete workability testing

Max Height
300 mm (cone)

Response Time
Instantaneous Hours

Features
Heavy mild steel construction, rust resistant, easy to clean, portable

Mounting Type
Portable / Free-standing

Hardness
Mild Steel Body

Power Supply
No

Usage
Construction material testing laboratory, site testing

Capacity
Approx. 6-7 litres of concrete Kg

Machine Weight
Approx. 3 kg Kilograms (kg)

Test Speed
Manual operation

Test Width
Diameter 200 mm (base) Meter (m)

Test Stroke
Not Applicable (used for measuring slump height)

Control Mode
Manual

Cleaning Method
Washable, easy to disassemble

Base Plate Material
Metal / Mild Steel

Corrosion Resistance
Yes

Accessories Included
Tamping rod (16 mm diameter x 600 mm length), base plate, mould

Finish
Painted / Powder Coated

Mould Shape
Frustum of a cone

Material of Construction
Mild Steel

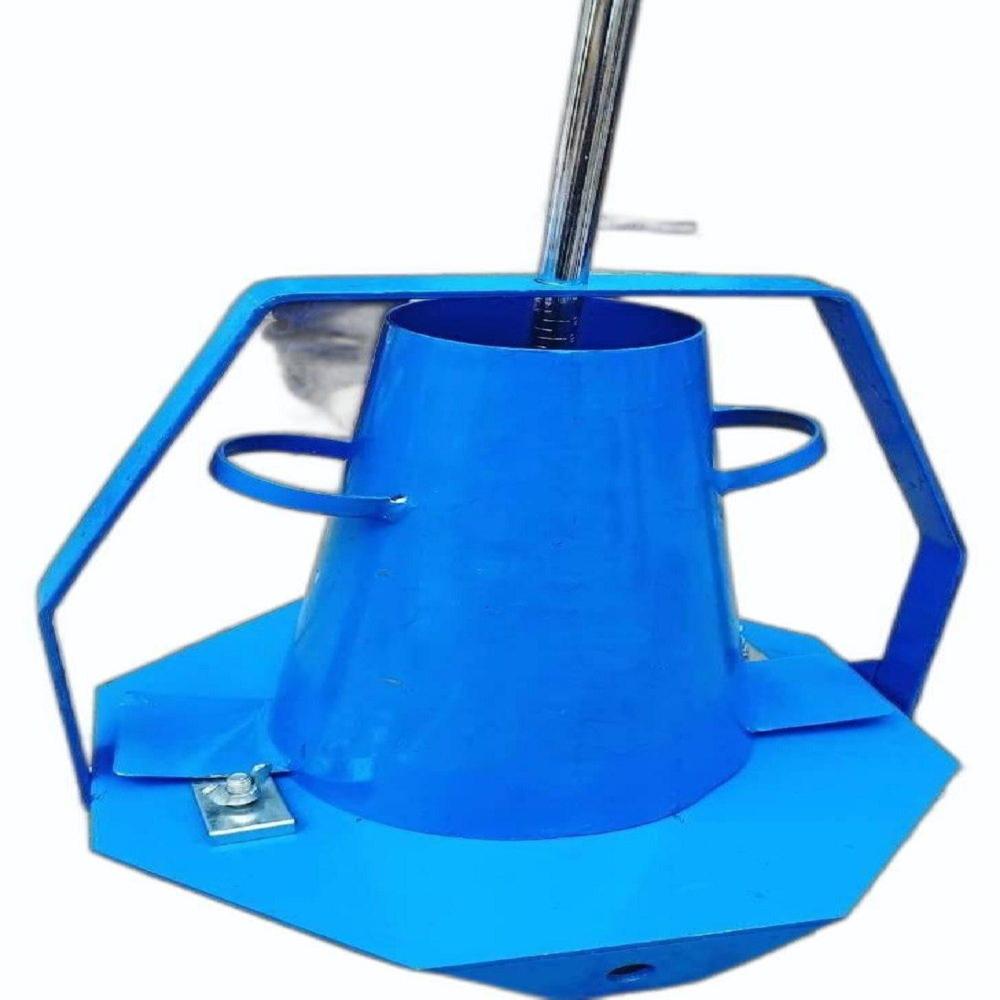

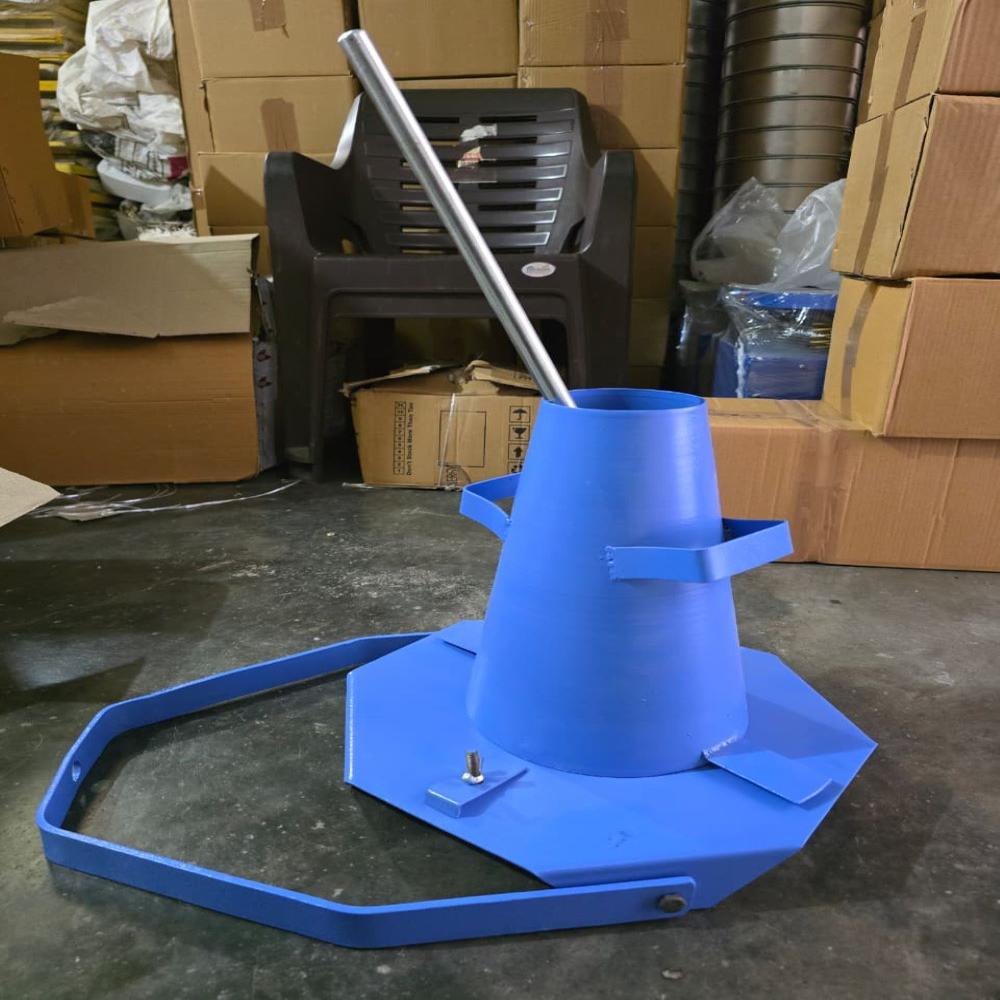

Concrete Slump Test Apparatus About

The offered slump test apparatus is manufactured using high-quality mild steel to ensure durability, corrosion resistance, and long service life. The apparatus consists of a slump cone (Abrams cone), tamping rod, and a rigid base plate, making it a complete set for on-site and laboratory testing.

The cone is fabricated in the form of a frustum with smooth internal surfaces for accurate results. It is equipped with handles and foot pieces to provide stability during testing and ease of lifting. The tamping rod is made of steel with a rounded end to ensure proper compaction of concrete layers.

This apparatus is widely used in civil engineering laboratories, construction projects, ready-mix plants, and quality control departments to measure the consistency and workability of fresh concrete mixes.

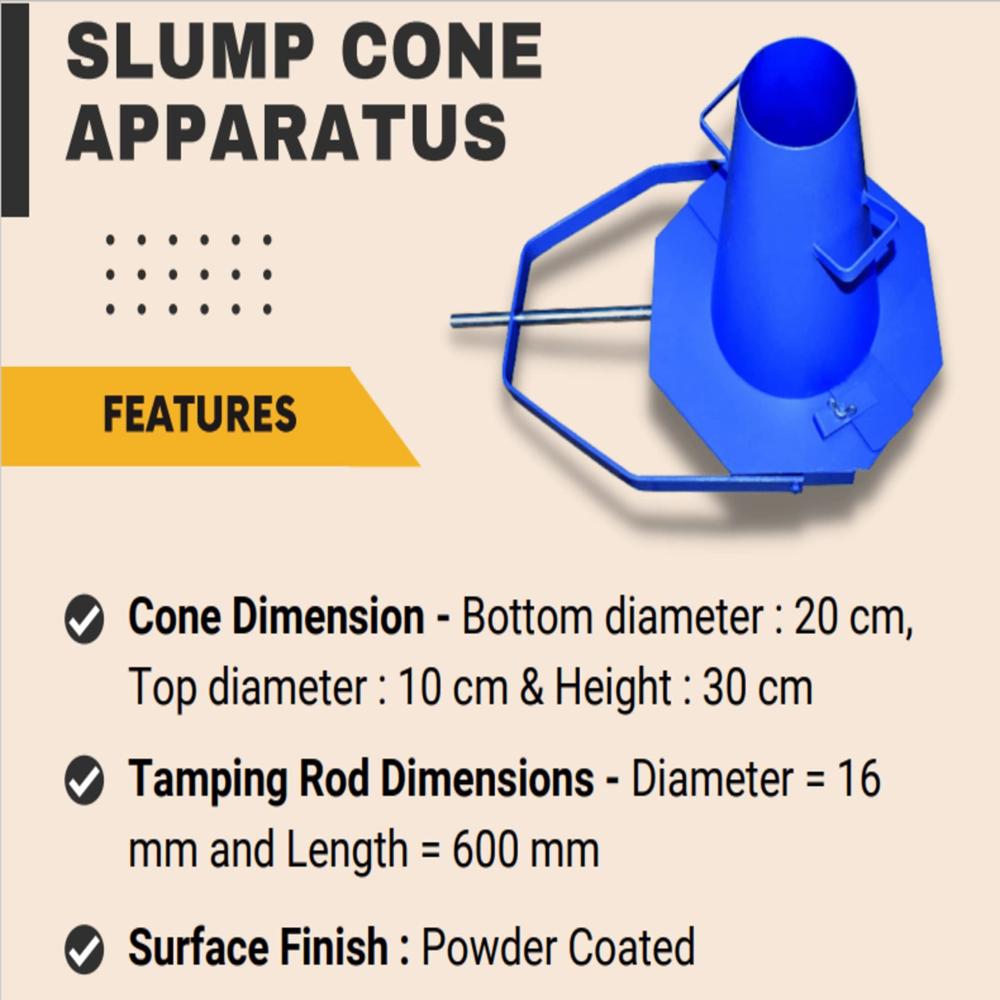

Technical Specifications

Material: Mild Steel
Height: 300 mm
Top Diameter: 100 mm
Bottom Diameter: 200 mm
Tamping Rod: 16 mm dia 600 mm length (rounded end)
Base Plate: Rigid mild steel / cast iron with handles
Finish: Powder coated / painted for corrosion resistance
Standard Compliance: IS 1199 & IS 7320

Key Features

Rugged mild steel construction for long durability
Accurate dimensions ensure reliable test results
Smooth inner surface for easy cleaning and testing
Equipped with handles and foot pieces for stability
Portable and easy to operate
Suitable for field and laboratory use

Applications

Concrete workability testing
Construction sites & infrastructure projects
Civil engineering laboratories
Quality control in batching plants

Built for Durability and Accuracy

This slump test apparatus utilizes heavy-duty mild steel construction and incorporates a rust-resistant finish, making it highly durable in challenging environments. Its practical design delivers 1 mm resolution and accuracy for dependable concrete workability readings, helping maintain project standards.

Complete, Easy-to-Use Testing Solution

Packaged with a tamping rod, base plate, and mould, this apparatus is ready for immediate use in the lab or on-site. The tool can be easily assembled and disassembled for cleaning, ensuring quick transitions between tests and maintaining measurement integrity.

Versatile Application in Construction

The apparatus suits fresh concrete workability assessments in construction material labs or directly at work sites. Its compact, portable nature allows for effortless maneuvering, supporting quality control processes for a variety of concrete mixes within the 0-300 mm slump range.

FAQ's of Mild Steel 300 mm Slump Test Apparatus:

Q: How is the Mild Steel 300 mm Slump Test Apparatus used to measure concrete workability?

A: To measure concrete workability, fill the frustum-shaped mould in three layers, each compacted with the included tamping rod. After removing the mould, the reduction in concrete height (slump) is measured manually from top to base plate, providing an instant indication of workability.

Q: What materials and features enhance the durability of this apparatus?

A: Constructed from high-quality mild steel with a painted or powder-coated finish, the apparatus resists rust and corrosion. Its heavy-duty body, combined with easy-to-clean, washable surfaces, ensures a long lifespan even in rigorous construction environments.

Q: When and where should I use this slump test apparatus?

A: Use this apparatus during fresh concrete placement phases in construction projects or material testing laboratories. It is designed for both field and lab use and helps ensure compliance with workability specifications before further application or casting.

Q: What is included in the set, and how portable is it?

A: The set includes a base plate, frustum of cone mould, and tamping rod, all crafted from mild steel. Weighing around 3 kg, the apparatus is portable and suitable for both stationary and on-site testing, thanks to its free-standing design.

Q: How do I clean and maintain the slump test apparatus?

A: Disassemble the apparatus after testing and wash all components with water. The painted or powder-coated finish protects against corrosion, ensuring continued ease of cleaning and reliable performance over time.

Q: What are the benefits of using this slump test apparatus in quality control?

A: This apparatus enables rapid, visual assessment of concrete consistency, ensuring uniform workability across batches. Accurate and portable, it helps construction professionals uphold quality standards and reduce the risk of subpar concrete placement.
