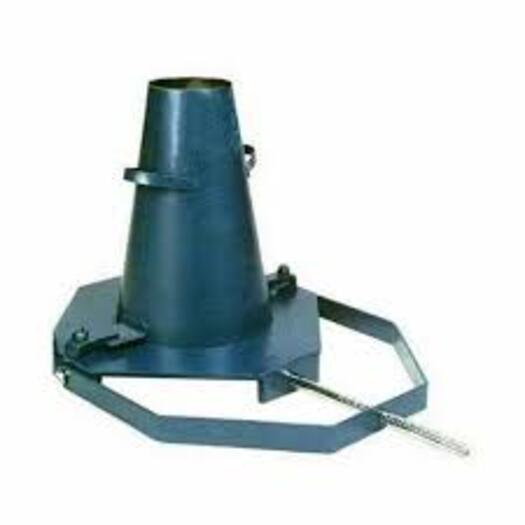

GI Sheet Slump Test Apparatus

Name: GI Sheet Slump Test Apparatus
Brand: Sami Lab Tek
Price: 1700.0 INR
Availability: InStock

Price 1700.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

GI Sheet Slump Test Apparatus Specification

Display Type
Manual scale/mechanical reading

Equipment Type
GI Sheet Slump Test Apparatus

Max Height
200 mm (slump cone)

Response Time
Immediate/manual

Accuracy
1 mm

Test Range
Standard slump value measurement range for fresh concrete

Hardness
Cone and base manufactured with hardened GI sheet

Specimen Size
100 mm (base diameter) x 200 mm (height) x 200 mm (top diameter)

Automation Grade
Manual

Number of Specimens
1 per test

Resolution
1 mm

Mounting Type
Table Top/Bench Mount

Application
Determining the workability (slump) of fresh concrete

Power Supply
Not required for core test

Features
Corrosion resistant GI sheet, base plate, cone, tamping rod, easy to clean

Humidity
Ambient

Measuring Range
0-250 mm (slump height difference)

Temperature
Ambient

Usage
For laboratory and field testing of concrete slump

Capacity
Single test capacity

Machine Weight
Approx. 5 kg

Test Speed
Manual operation

Control Mode
Manual

Base Plate Size
300 mm x 300 mm (approx.)

Tamping Rod Dimensions
16 mm diameter, 600 mm length, rounded at one end

Finish
Smooth, anti-rust finish

Packing Type
Corrugated box or wooden case

Product Code
GIST-01

Cone Material
Galvanized Iron Sheet

About GI Sheet Slump Test Apparatus

GI Sheet Slump Test Apparatus is a laboratory and site testing instrument used to determine the workability and consistency of fresh concrete. It is made using high-quality galvanized iron (GI) sheet, which provides excellent durability, corrosion resistance, and long service life even under rough construction site conditions.

The apparatus is widely used in civil engineering projects, construction sites, and material testing laboratories to ensure proper concrete mix quality before placement.

Features:

Made from high-quality galvanized iron (GI) sheet
Rust and corrosion resistant construction
Lightweight and easy to handle
Smooth internal surface for accurate testing
Durable and reusable design
Suitable for site and laboratory use
Easy to clean and maintain

Applications:

Civil engineering construction sites
Concrete quality testing
Ready-mix concrete plants
Material testing laboratories
Road, bridge, and building construction projects

Specifications:

Material: Galvanized Iron (GI) Sheet
Type: Slump Cone Apparatus
Usage: Workability testing of fresh concrete
Standards: As per IS / ASTM specifications (if applicable)
Finish: Anti-corrosive galvanized coating

Custom sizes and specifications are available as per client requirements.

Efficient Solution for Concrete Workability Testing

This apparatus is engineered for straightforward determination of fresh concrete slump, a critical indicator of workability. The device's durable GI sheet construction ensures longevity and reliability under frequent use either at job sites or in laboratories. Its manually operated system requires no external power, making it suitable for varied environments.

Precision and Durability Combined

By utilizing a hardened GI sheet for both the cone and base, and a carefully crafted tamping rod, the apparatus guarantees high measurement accuracy and resistance to corrosion. The apparatus's design considers easy maintenance and portability, and its clear mechanical scale enables direct, immediate readings for prompt decision-making during concrete tests.

FAQ's of GI Sheet Slump Test Apparatus:

Q: How is the GI Sheet Slump Test Apparatus used for concrete testing?

A: To use the GI Sheet Slump Test Apparatus, fill the cone in three layers with freshly mixed concrete, compact each layer using the tamping rod, remove the cone vertically, and measure the decrease in height (slump) using the manual scale provided. This process determines the workability of the concrete.

Q: What are the main components of the GI Sheet Slump Test Apparatus?

A: The apparatus includes a corrosion-resistant GI sheet slump cone, a base plate (300 mm x 300 mm approx.), and a tamping rod (16 mm diameter, 600 mm long, rounded at one end), all provided with a smooth, anti-rust finish for durability and accuracy.

Q: When should I perform a slump test on concrete?

A: A slump test should be performed immediately after mixing and before the concrete is placed or cast, to assess its workability and ensure it meets the construction requirements.

Q: Where can the GI Sheet Slump Test Apparatus be used?

A: This apparatus can be used in both laboratories and field locations due to its compact design, portability, and need for no external power. It is suitable for use on a table top or any sturdy bench.

Q: What is the accuracy and measurement range of the apparatus?

A: The apparatus provides a resolution and accuracy of 1 mm, with a measuring range for slump between 0 and 250 mm, ensuring reliable and precise readings every time.

Q: What are the benefits of using a galvanized iron sheet apparatus for the slump test?

A: The GI sheet offers excellent corrosion resistance, ensuring long life and low maintenance. Its smooth finish makes cleaning easy, and the apparatus is light enough for convenient handling and transport.
