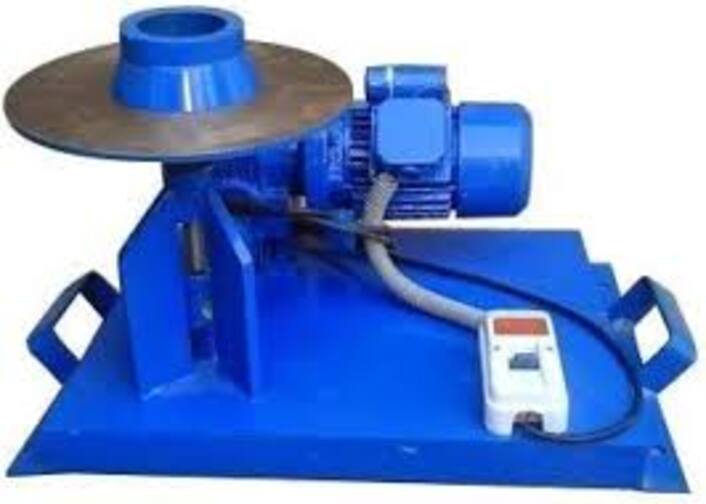

Flow Table Motorized

Name: Flow Table Motorized
Brand: Sami Lab Tek
Price: 25000.0 INR
Availability: InStock

Price 25000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Flow Table Motorized Specification

Display Type
Analog/Manual reading scale

Measuring Range
0-40 mm flow value

Frequency
50 Hz

Specimen Size
Flow mould 100 mm (dia) x 50 mm (height)

Resolution
1 mm

Response Time
Immediate/manual

Interface Type
Manual push-button

Application
To determine the workability/flow property of cement mortar by flow table method

Temperature
Ambient

Features
Mild steel table, solid construction, heavy-duty motor, non-slip base, easy to operate, corrosion-resistant finish

Port Size
Standard funnel port for mortar

Mounting Type
Table-top

Test Range
Consistency and flow of cement mortar

Humidity
Ambient

Power Supply
230 V AC, Single Phase, 50 Hz

Automation Grade
Semi-Automatic

Operating Voltage
230 V AC

Hardness
Mild steel, table surface hardened

Max Height
Approx. 350 mm

Equipment Type
Motorized Flow Table

Number of Specimens
1 at a time

Accuracy
1 mm

Usage
Laboratory & educational

Capacity
Suitable for standard cement mortar testing

Machine Weight
Approx. 40-50 kg

Test Speed
30 1 rpm

Test Width
300 mm

Test Stroke
10 mm

Control Mode
Motorized, push-button operation

Number of Drops per Test
15 drops in 15 seconds

Timer
Integrated digital/analog counter

Power Consumption
Less than 0.2 kW

Compliance Standards
IS: 5512, ASTM C230/C230M

Motor Type
Geared single phase electric motor

Noise Level
Less than 75 dB

Included Accessories
Flow mould and tamper

Table Lifting Drop Height
12.5 0.25 mm

Table Diameter
250 mm (as per IS: 5512)

Finish
Powder coated

About Flow Table Motorized

The Motorized Flow Table is a precision testing equipment used for determining the workability and flow characteristics of cement mortar, lime, and other fine building materials. It is widely used in construction material testing laboratories to ensure consistent quality and performance of cement-based mixtures.

This equipment operates through a motorized mechanism that provides uniform and controlled drops of the flow table, eliminating manual effort and improving test accuracy. The table is mounted on a rigid base and is designed to deliver smooth, repetitive lifting and dropping motion as per standard testing procedures.

Constructed with a heavy-duty frame and high-quality components, the Motorized Flow Table ensures long service life, minimal maintenance, and reliable test results. It is suitable for both industrial laboratories and research institutions.

Key Features:

Motorized operation for consistent and accurate testing
Heavy-duty construction for durability and stability
Smooth and uniform table dropping mechanism
Easy-to-operate control system
Ensures accurate measurement of mortar flow properties
Low maintenance and long operational life

Applications:

Cement and mortar testing laboratories
Construction material quality control
Civil engineering R&D labs
Educational institutions for practical training
Building and infrastructure projects

Working Principle:

The apparatus measures the flow of cement mortar by subjecting it to controlled vertical drops. The resulting spread diameter is used to evaluate the workability and consistency of the mix.

Precision and Compliance

This motorized flow table is meticulously designed to conform to IS: 5512 and ASTM C230/C230M, ensuring reliable and repeatable results for each test cycle. Its powder-coated, hardened mild steel surface guarantees durability, while the integrated timer and digital or manual counter streamline testing sequences for maximum consistency.

User-Friendly Functionality

Equipped with a push-button operation, semi-automatic workflow, and manual/analog display, the Flow Table simplifies the testing process. The included flow mould and tamper help users achieve accurate sample preparation, improving laboratory efficiency and safety during daily cement mortar evaluations.

Versatile Laboratory Solution

Ideal for both educational institutions and professional labs, this motorized flow table supports standard cement mortar testing with high precision and minimal power consumption. Its robust construction, stable non-slip base, and corrosion-resistant finish make it suitable for long-term, frequent use while maintaining low operational noise.

FAQ's of Flow Table Motorized:

Q: How do I operate the Motorized Flow Table for a standard cement mortar test?

A: To operate the Flow Table, assemble the flow mould and tamper on the table top. Place the cement mortar specimen in the flow mould (100 mm diameter x 50 mm height). Secure the set, then use the manual push-button to initiate the 15-drop cycle as per IS: 5512. The integrated counter and timer will assist you in keeping track of the test duration and drops.

Q: What procedures does the Flow Table follow to ensure standardized cement mortar testing?

A: Testing follows the IS: 5512 and ASTM C230/C230M standards. The number of drops, drop height (12.5 0.25 mm), stroke length, and test speed (30 1 rpm) are all precisely controlled. After 15 drops in 15 seconds, the spread of the mortar is measured for its flow value, ensuring consistent and comparable results.

Q: Where is this motorized flow table most effectively used?

A: This equipment is primarily designed for laboratory and educational settings where consistency, reliability, and safety are priorities. Its semi-automatic control and table-top mounting make it conveniently usable in standard testing labs, teaching laboratories, and quality control environments in the construction industry.

Q: What benefits does the Flow Table offer in cement mortar testing?

A: The Flow Table ensures quick, consistent, and accurate evaluation of mortar workability or flow. Features such as rapid-response manual controls, accuracy of 1 mm, and a durable non-slip base provide reliable performance. Additionally, its low noise, energy efficiency, and corrosion-resistant finish contribute to a comfortable and long-lasting testing operation.

Q: When should I use the Motorized Flow Table for testing?

A: Whenever there is a need to determine the workability or flow property of cement mortar, the Motorized Flow Table is the preferred choice. Use it for routine quality control, research, educational demonstrations, or whenever compliance with IS: 5512 or ASTM C230/C230M is required.

Q: How many specimens can be tested at one time on this flow table?

A: Only one specimen can be evaluated at a time using the supplied standard flow mould. This promotes accuracy and adherence to standardized testing protocols while preventing cross-contamination between samples.
