Concrete Flow Table Test Set

Concrete Flow Table Test Set About

A Concrete Flow Table Test Set is a laboratory testing equipment used to determine the flowability and workability of fresh concrete. It helps measure the consistency and ease of flow of concrete under controlled vibration and lifting conditions. This test is essential for assessing the quality and uniformity of concrete mixes, especially in construction and civil engineering applications.

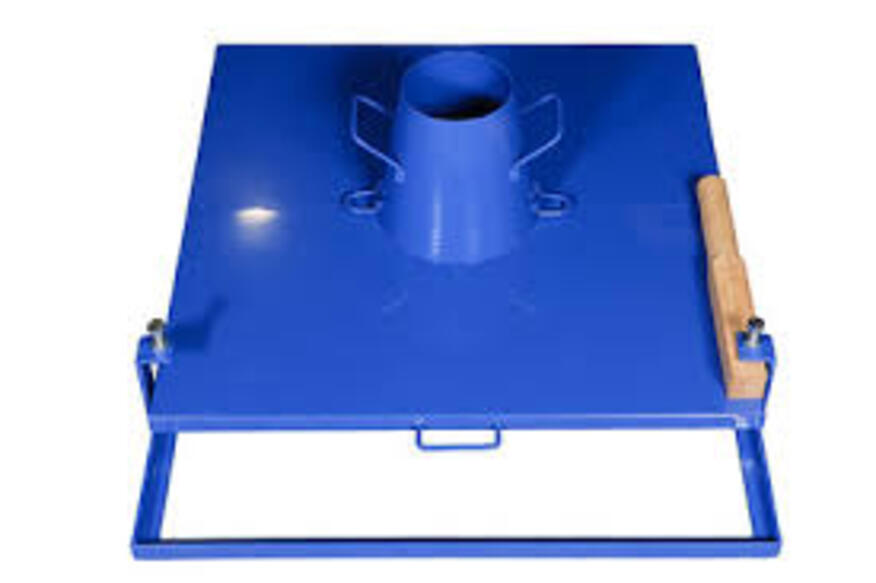

The apparatus consists of a rigid flow table with a hinged top, mould, and tamping rod, designed to provide accurate and repeatable results as per standard testing methods.

---

Key Features

• Accurate measurement of concrete flow characteristics
• Heavy-duty steel construction for stability
• Smooth table surface for uniform flow results
• Easy manual operation
• Corrosion-resistant and durable design
• Designed as per standard testing specifications

---

Technical Specifications (Typical)

• Table Size: Standard (600 mm x 600 mm approx.)
• Material: Mild Steel / Cast Iron
• Mould: Conical flow mould included
• Operation: Manual lifting and dropping mechanism
• Finish: Powder-coated / Painted
• Accessories: Tamping rod, mould, and scale (as required)

---

Applications

• Testing workability of fresh concrete
• Construction material testing laboratories
• Civil engineering research institutions
• Quality control in construction projects
• Educational engineering labs

---

Advantages

• Provides reliable assessment of concrete consistency
• Simple and quick testing method
• Helps optimize concrete mix design
• Ensures uniformity in construction quality
• Durable and long-lasting equipment

---

Additional Information

The Concrete Flow Table Test Set is widely used in construction laboratories to evaluate the behavior of fresh concrete. It plays a crucial role in ensuring proper mix design and achieving high-quality, durable concrete structures.

Superior Durability and Corrosion Resistance

This flow table test set features a robust, epoxy powder-coated finish, ensuring exceptional resistance to rust and wear even under demanding lab and site conditions. The high-strength, heavy-duty base and table provide lasting performance and minimal maintenance, making it ideal for continuous concrete testing applications.


Precision Calibration and Smooth Operation

With its machined flat table surface and guided vertical drop mechanism, the set offers precise, repeatable results as per IS:1199, ASTM C230, and BS 1881:105. The smooth-sliding table and manual visual scale allow accurate measurement of concrete flow diameter, supporting reliable assessments of workability or fluidity.


User-Friendly Assembly and Operation

Supplied partly assembled with clear instructions, this test set requires minimal setup. The manual operation and detachable conical mold function without a power supply, and all accessories, including tamping rod and steel trowel, are included for immediate use in labs or field locations.
