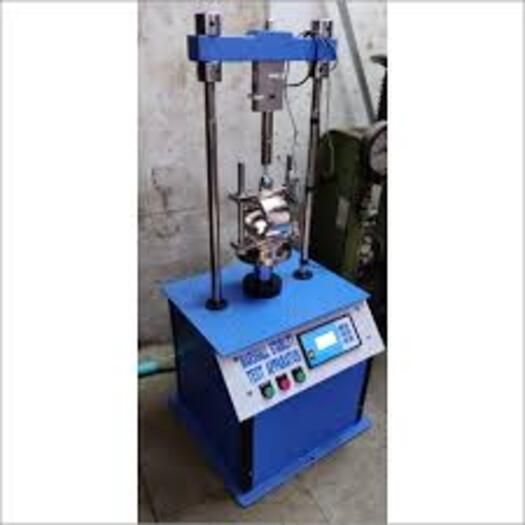

Digital Marshall Stability Test Apparatus

Name: Digital Marshall Stability Test Apparatus
Brand: Sami Lab Tek
Price: 110000.0 INR
Availability: InStock

Price 110000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Digital Marshall Stability Test Apparatus Specification

Frame Construction
Heavy-duty steel construction with rigid support

Compliance
Meets ASTM D6927, IS 1207, IS 1208 standards

Data Output
USB and RS232 interface for data transfer and printing

Finishing
Powder coated and corrosion resistant

Safety
Overload and over-travel protection

Control System
Microprocessor based digital control unit

Operating Temperature Range
5C to 40C

Measurement Units
kN and kg selectable

About Digital Marshall Stability Test Apparatus

Key Features

Digital display for stability (kN) and flow (mm)
High-precision load cell and displacement sensors
Constant loading rate of 50.8 mm/min
Peak load hold and automatic data recording
PC interface (in advanced models)
Heavy-duty loading frame construction

Technical Specifications

Capacity: Up to 50 kN
Flow Measurement: 025 mm via LVDT
Resolution: Up to 0.01 mm displacement
Test Speed: 50.8 mm/min
Power Supply: 230V, 50Hz
Standards: ASTM D1559, AASHTO T245

Applications

Bitumen and asphalt testing laboratories
Highway and road construction projects
Civil engineering colleges and research centers
Quality control of paving materials

Working Principle

A cylindrical bitumen specimen is placed in a breaking head and subjected to a gradually increasing load. The apparatus records the maximum load (stability) and the deformation (flow) at that point, which are critical for designing durable asphalt pavements.

Superior Frame Construction

Built with heavy-duty steel, this apparatus is designed to withstand rigorous laboratory or industrial use. Its robust frame offers stable testing conditions and extends equipment lifespan, thanks to powder-coating and corrosion-resistant finishing.

Advanced Digital Control System

Featuring a microprocessor-based digital control unit, users can manage tests efficiently and toggle between kN and kg measurement units. This ensures greater accuracy and flexibility in compliance with major international standards.

Efficient Data Management

Collect and manage data seamlessly via USB and RS232 interfaces, supporting straightforward data transfer and printing for analysis or records. This enhances productivity and ensures traceability of test results.

FAQ's of Digital Marshall Stability Test Apparatus:

Q: How does the microprocessor-based control system enhance test accuracy in this apparatus?

A: The microprocessor-based digital control unit ensures precise measurement and consistent control over test parameters, leading to greater reliability and repeatability in stability and flow value results.

Q: What measurement units can be selected, and how are they displayed?

A: Operators can select between kN and kg as per testing requirements. The selected measurement unit is clearly displayed on the digital interface for easy monitoring during tests.

Q: When should I utilize the USB or RS232 data interfaces?

A: The USB and RS232 data output interfaces are ideal for transferring test data to computers or printers immediately after testing, facilitating seamless record-keeping and further analysis.

Q: Where can this apparatus be used, considering environmental conditions?

A: Designed to operate efficiently within temperatures ranging from 5C to 40C, the apparatus is suitable for use in various laboratory environments across India.

Q: What process does the apparatus follow to ensure user safety during operation?

A: The apparatus incorporates overload and over-travel protection mechanisms, which automatically halt operations to prevent equipment damage or operator injury during abnormal conditions.

Q: Why is compliance with ASTM D6927, IS 1207, and IS 1208 standards important?

A: Compliance guarantees that test results meet both national and international quality, ensuring acceptability and reliability in civil engineering and construction projects.
