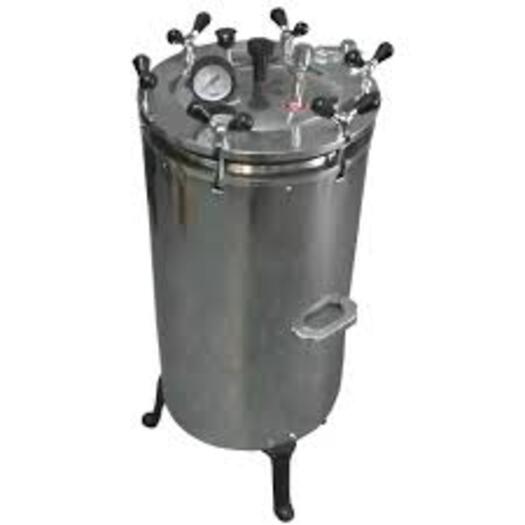

Vertical Autoclave Sterilizer

Name: Vertical Autoclave Sterilizer
Brand: Sami Lab Tek
Price: 10000.0 INR
Availability: InStock

Price 10000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Vertical Autoclave Sterilizer Specification

Resolution
1C

Hardness
Corrosion-resistant, rust-proof

Power Supply
220 V AC, 50 Hz

Accuracy
2C

Features
Double safety valve, pressure gauge, temperature controller, stainless steel construction, energy efficient

Response Time
Approx. 10 minutes to reach max temperature

Application
Sterilization of laboratory and medical instruments

Mounting Type
Floor Standing

Equipment Type
Vertical Autoclave Sterilizer

Frequency
50 Hz

Operating Voltage
220 V

Automation Grade
Semi-Automatic / Fully Automatic Available

Max Height
900 mm

Humidity
Up to 85% RH

Display Type
Analog / Digital (optional)

Temperature
Up to 134C

Port Size
1/2 inch

Usage
Laboratory, Hospital, Research Institutes

Capacity
35 liters

Machine Weight
85 kg

Control Mode
Manual / Automatic

Outer Body Material
Mild Steel with Powder Coating

Safety Features
Low Water Cut-Off, Automatic Pressure Release

Power Consumption
2 kW

Heater
Immersion Type, 2 kW

Castor Wheels
Heavy-duty for mobility

Compliance Standard
ISI, CE Marked

Drain Valve
Fitted for easy draining

Insulation
Glass Wool

Sterilization Cycle Time
30-60 minutes

Shape
Cylindrical

Lid Type
Radial Locking System with Neoprene Rubber Gasket

Chamber Material
Stainless Steel 304/316

Pressure Range
15-20 psi (1.02-1.36 kg/cm2)

Water Level Indicator
Provided

Vertical Autoclave Sterilizer Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
100 Units Per Month

Delivery Time
7 Days

About Vertical Autoclave Sterilizer

The Vertical Autoclave Sterilizer is a highly efficient steam-based sterilization unit designed for safe and effective sterilization of laboratory instruments, culture media, glassware, and medical equipment. Using high-pressure saturated steam, it ensures complete elimination of bacteria, viruses, fungi, and spores.

Designed with a vertical chamber for space-saving installation, this autoclave is widely used in laboratories, hospitals, research centers, and pharmaceutical industries. Its robust construction and user-friendly operation make it a reliable solution for routine sterilization needs.

Key Features:

High-pressure steam sterilization system
Vertical, space-saving design
Durable stainless steel chamber
Precise temperature and pressure control
Safety features including pressure release valve and gasket locking
Available in manual, semi-automatic, and fully automatic models

Applications:

Microbiology and research laboratories
Hospitals and clinics
Pharmaceutical and biotech industries
Educational institutions
Food and beverage testing labs

Technical Specifications (Typical):

Capacity: 22 L to 100 L (customizable)
Working Temperature: Up to 121C 134C
Working Pressure: 1530 psi
Material: Stainless Steel (SS 304/SS 316)
Heating Type: Electric heating
Power Supply: 220240V AC, 50 Hz

Packaging Details:
Packed securely with protective materials to ensure safe transportation.

Usage Instructions:

Load items to be sterilized into the chamber.
Add required water level.
Close lid securely and switch on the unit.
Set desired temperature and time.
Allow cycle completion and pressure release before opening.

Safety & Maintenance:

Do not open the lid under pressure
Regularly check gasket and valves
Clean chamber to avoid scaling and residue buildup

Robust Construction and Enhanced Safety

Crafted from high-quality stainless steel 304/316 and protected by a powder-coated mild steel outer shell, this vertical autoclave is built to resist rust and corrosion. The radial locking system, double safety valves, and low water cut-off features enhance safety and longevity. Glass wool insulation ensures energy efficiency and minimal heat loss, making it suitable for heavy laboratory or clinical use.

User-Friendly Operation and Flexible Control

This autoclave offers both manual and automatic modes to accommodate diverse operational needs. The analog or digital display options, water level indicator, and temperature controller provide precise control over each sterilization cycle. Its easy-drain valve and castor wheels add convenience, facilitating quick cleaning and mobility between workspaces in busy labs or hospitals.

FAQ's of Vertical Autoclave Sterilizer:

Q: How does the Vertical Autoclave Sterilizer maintain precise sterilization cycles?

A: The sterilizer uses an advanced temperature controller with 2C accuracy and 1C resolution, an optional digital or analog display, and immersion-type heaters. This allows for consistent sterilization cycles within 30-60 minutes at temperatures up to 134C and pressure ranges of 15-20 psi, ensuring reliable performance every time.

Q: What are the main benefits of the radial locking system with neoprene gasket lid?

A: The radial locking system provides a secure and uniform seal, preventing steam leakage and enhancing safety during operation. The neoprene rubber gasket ensures an airtight fit, ensuring optimal sterilization conditions and extended gasket life.

Q: When should the drain valve be used during the sterilization process?

A: After each sterilization cycle and once the chamber has cooled and depressurized, the fitted drain valve should be used to easily remove residual water. This helps maintain hygiene, prevents buildup, and prepares the chamber for the next cycle.

Q: Where can this Vertical Autoclave Sterilizer be effectively utilized?

A: This equipment is ideal for use in laboratories, hospitals, research institutes, and clinical facilities across India. Its mobility, durable design, and compliance with ISI and CE standards make it suitable for varied professional environments needing reliable sterilization.

Q: What safety features are included to protect users and equipment?

A: Safety is prioritized with features such as double safety valves, a low water cut-off system to prevent dry heating, and automatic pressure release. Additionally, the stainless steel construction offers durability and rust-resistance.

Q: How does the autoclave support both semi-automatic and fully automatic use?

A: The control mode can be configured for either manual or automatic operation. This flexibility allows users to choose between hands-on cycle management or automated, preset programs, catering to the workflow of laboratories or hospitals and enhancing user convenience.
