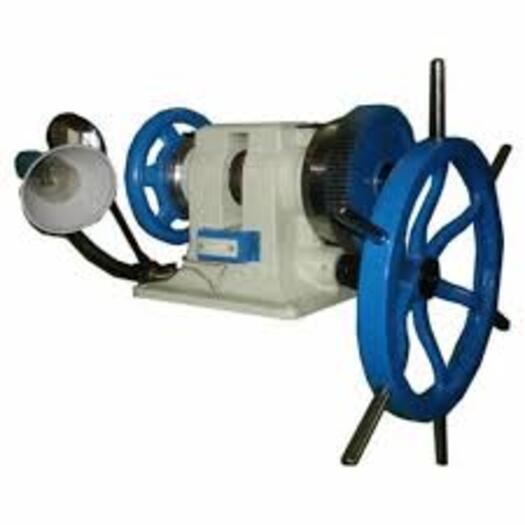

Erichsen Cupping Testing Machine

Name: Erichsen Cupping Testing Machine
Brand: Sami Lab Tek
Price: 80000.0 INR
Availability: InStock

Price 80000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Erichsen Cupping Testing Machine Specification

Frame Construction
Cast Iron

Cupping Diameter
27 mm

Maximum Cupping Depth
13 mm approx.

Specimen Thickness Range
Up to 2 mm

Clamping Mechanism
Screw / Lever Lock Type

Paint Coating
Powder Coated

Test Standard
IS 101, DIN 53150, ISO 1520

Type
Erichsen Cupping Testing Machine

Gauge Display
Analog Scale

Operation
Manual Hand Operated

Erichsen Cupping Testing Machine Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
10 Units Per Month

Delivery Time
7 Days

About Erichsen Cupping Testing Machine

A Erichsen Cupping Testing Machine is a precision sheet metal testing instrument used to evaluate the ductility, formability, and deep drawing characteristics of metal sheets and strips. It determines the ability of a material to withstand deformation without cracking during pressing or forming operations.

This machine is widely used in sheet metal industries, automotive manufacturing, metallurgical laboratories, paint coating industries, and quality control departments for assessing material suitability for stamping and deep drawing processes.

Key Features

High-precision hydraulic or mechanical indentation system
Rigid and vibration-free heavy-duty frame construction
Smooth and controlled cup-forming operation
Digital / analog depth measurement system
Clamping system for secure sheet holding
Easy operation with quick test results
Accurate and repeatable performance
Conforms to ASTM / ISO / BIS standards

Working Principle

The machine works by forcing a hardened steel ball into a tightly clamped metal sheet at a controlled rate. The sheet is gradually deformed until a crack appears. The depth at which cracking occurs is measured and recorded as the Erichsen Index, indicating the materials formability and ductility.

Applications

Sheet metal formability testing
Automotive body panel material testing
Steel, aluminum, and alloy sheet evaluation
Paint and coating adhesion testing (indirect use)
Metal fabrication and stamping industries
Research and quality control laboratories
Educational engineering institutions

Advantages

Accurately determines sheet metal ductility
Essential for deep drawing process validation
Simple and reliable testing method
Helps prevent cracking during forming operations
Suitable for industrial and laboratory use

Technical Specifications (Typical)

Indenter: Hardened steel ball
Clamping system: Hydraulic / mechanical
Measuring range: Digital depth gauge / dial indicator
Sheet thickness: As per model capacity
Operation: Manual / motorized loading
Standards: ISO 8490 / ASTM E643 compliant

Precision Testing for Sheet Metal Quality

The Erichsen Cupping Testing Machine offers accurate assessment of sheet metal ductility and formability. With compliance to major international test standards, it is a preferred tool in ensuring materials meet rigorous industrial requirements. Its easy-to-use manual operation and reliable analog scale make it suitable for lab and workshop settings alike.

Robust and Reliable Construction

Engineered from cast iron and finished with a durable powder coat, this testing machine guarantees long-term stability and resistance to wear. The screw or lever lock clamping mechanism ensures firm specimen placement, allowing users to obtain reproducible and consistent results with every test.

FAQ's of Erichsen Cupping Testing Machine:

Q: How does the Erichsen Cupping Testing Machine operate?

A: This machine works manually by clamping a metal specimen and gradually applying pressure until a visible bulge or crack appears, measuring the material's ductility. The analog gauge displays the cupping depth achieved during the process.

Q: What test standards does the Erichsen Cupping Testing Machine follow?

A: It complies with IS 101, DIN 53150, and ISO 1520 standards, ensuring internationally accepted and reliable measurement of metal sheet formability.

Q: When should I use the Erichsen Cupping Testing Machine?

A: Use this testing machine whenever you need to evaluate the drawability or ductility of sheet metal samples up to 2 mm thick, especially important in quality control, materials research, and metal fabrication industries.

Q: Where is the Erichsen Cupping Testing Machine most commonly used?

A: It is widely utilized in metal processing plants, research institutes, quality testing laboratories, and educational institutions across India.

Q: What benefits does the Erichsen Cupping Testing Machine offer?

A: The machine provides precise, standardized evaluation of sheet metals, leading to improved product quality, process optimization, and compliance with international standards.

Q: What is the maximum specimen thickness and cupping depth the machine can handle?

A: This model accommodates specimen thickness up to 2 mm and can measure a maximum cupping depth of approximately 13 mm, making it suitable for most common sheet metal applications.
