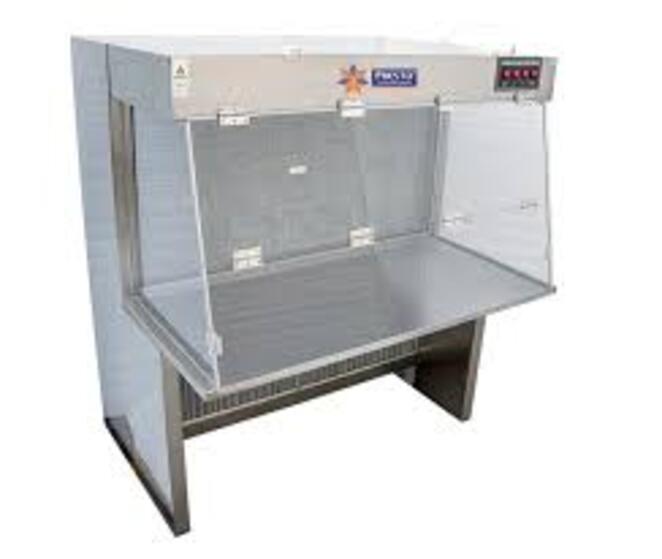

Laminar Air Flow Cabinet

Name: Laminar Air Flow Cabinet
Brand: Sami Lab Tek
Price: 55000.0 INR
Availability: InStock

Price 55000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Laminar Air Flow Cabinet Specification

Port Size
Standard front access port

Features
HEPA filtered, UV lamp, fluorescent light, low noise operation

Interface Type
Analog/Touch Panel

Display Type
Digital

Mounting Type
Table Top or Floor mounted

Humidity
Up to 75% RH (operating)

Equipment Type
Horizontal/Vertical Laminar Air Flow Cabinet

Response Time
Immediate airflow response

Max Height
Up to 6 ft (model dependent)

Operating Voltage
220V, 1 Phase

Frequency
50 Hz

Application
Laboratory, microbiology, clean room, pharmaceutical research

Power Supply
220V AC, 50 Hz

Temperature
10C - 40C (operating)

Automation Grade
Semi-automatic

Usage
Protection from contamination during sensitive work

Capacity
Varies by internal workspace (between 2 ft, 3 ft, and 4 ft models)

Machine Weight
100-250 kg (varies by size/model)

Control Mode
Microprocessor-based controller

Blower Motor
Dynamically balanced, vibration free

HEPA Filter Efficiency
99.97% at 0.3 microns

Front Sash
Acrylic/glass, sliding or hinged

Pre-filter
Washable synthetic fiber filter

Lighting
UV germicidal lamp (15/30W) and fluorescent lighting (15/20W)

Noise Level
Less than 65 dB(A) at workstation

Safety Features
Magnetic door lock, UV interlock, gas tap (optional)

Castors/Feet
Adjustable leveling feet or caster wheels for mobility

Work Table Type
Stainless steel perforated top

Airflow Velocity
0.3 - 0.5 m/s (20%)

Cabinet Material
Stainless Steel (SS 304) interior and exterior with powder-coated finish

Laminar Air Flow Cabinet Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
100 Pieces Per Month

Delivery Time
7 Days

Laminar Air Flow Cabinet About

The Laminar Air Flow Cabinet is a high-efficiency clean air workstation designed to provide a sterile and particle-free environment for sensitive laboratory operations. It works by passing air through high-efficiency particulate air (HEPA) filters, ensuring a continuous flow of clean air across the work surface to prevent contamination.

This cabinet is ideal for applications requiring aseptic conditions and is widely used in microbiology, pharmaceutical, medical, and research laboratories. Its ergonomic design, low noise operation, and high filtration efficiency make it a reliable choice for precision work.

Key Features:

HEPA filtration with up to 99.97% efficiency (0.3 microns)
Unidirectional laminar airflow (horizontal or vertical options)
UV germicidal light for sterilization
Low noise and vibration operation
Stainless steel working surface
Clear acrylic or glass front for visibility
Energy-efficient and easy to operate

Applications:

Microbiology and tissue culture work
Pharmaceutical and biotech labs
Hospitals and diagnostic centers
Food and beverage testing labs
Research and educational institutions

Technical Specifications (Typical):

Air Flow Type: Horizontal / Vertical
Filter Type: HEPA Filter
Filtration Efficiency: 99.97% at 0.3 microns
Material: Mild Steel (powder-coated) / Stainless Steel
Lighting: Fluorescent / LED with UV lamp
Power Supply: 220240V AC, 50 Hz
Noise Level: Low (<65 dB approx.)

Packaging Details:
Securely packed with protective materials to ensure safe delivery.

Usage Instructions:

Switch on the blower and allow airflow to stabilize.
Turn on UV light (before use) for sterilization.
Place materials inside the cabinet.
Perform operations within the clean airflow zone.

Safety & Maintenance:

Do not use UV light while working inside
Regularly clean work surface and filters
Replace HEPA filters as per usage
Ensure proper grounding and electrical safety

Advanced Contamination Control

This Laminar Air Flow Cabinet utilizes ULPA/HEPA filters with 99.97% efficiency at 0.3 microns, providing an aseptic environment ideal for sensitive research. The stainless steel construction and perforated worktable further minimize particle retention, while a UV germicidal lamp ensures enhanced sterilization before and after use.

Flexible and User-Friendly Operation

Equipped with a microprocessor-based digital controller, immediate airflow response, and clear digital display, the cabinet is designed for intuitive use. The adjustable feet or caster wheels allow easy mobility, while the choice between sliding or hinged acrylic/glass front sashes supports ergonomic and safe access to the workspace.

Robust Safety and Reliability

Magnetic door locks, UV interlock safety, and an optional gas tap provide critical protection for users during operation. The dynamically balanced, vibration-free blower motor, and less than 65 dB(A) noise level guarantee a quiet and stable work environment, even during continuous use.

FAQ's of Laminar Air Flow Cabinet:

Q: How does the Laminar Air Flow Cabinet provide contamination protection during laboratory work?

A: The cabinet uses a high-efficiency particulate air (HEPA) filter that removes 99.97% of airborne particles as small as 0.3 microns. In combination with a continuous laminar airflow and UV germicidal lamp, it creates a clean, particle-free environment ideal for sensitive procedures in laboratories, microbiology, and pharmaceutical research.

Q: What safety features are included in this Laminar Air Flow Cabinet?

A: Safety features include a magnetic door lock for secure operation, UV interlock to prevent accidental exposure, and an optional gas tap for additional utility. The cabinet design ensures operator and sample safety during use, adhering to best practices in contamination control.

Q: When should the pre-filter and HEPA filter be maintained or replaced?

A: The washable synthetic fiber pre-filter should be cleaned at regular intervals, typically every few weeks, depending on use and environment. The HEPA filter generally requires replacement every 1-2 years or when airflow performance drops, as indicated by the cabinet's digital control interface.

Q: Where can this Laminar Air Flow Cabinet be installed?

A: This equipment is suitable for laboratories, clean rooms, and pharmaceutical research facilities. It can be mounted on a tabletop or floor, providing flexibility according to available space and specific application needs.

Q: What is the process for operating this cabinet safely?

A: Start by powering on the cabinet and activating the airflow via the microprocessor controller. Use the UV germicidal lamp for initial sterilization, then switch to fluorescent lighting during work. Always close or lock the sash when not in use, and regularly monitor the digital display for airflow status and maintenance alerts.

Q: How does immediate airflow response benefit laboratory tasks?

A: Immediate airflow response ensures that the controlled environment is quickly restored after any disturbance, such as sash movement or sample transfers. This minimizes contamination risk and enables efficient workflow during critical laboratory procedures.
