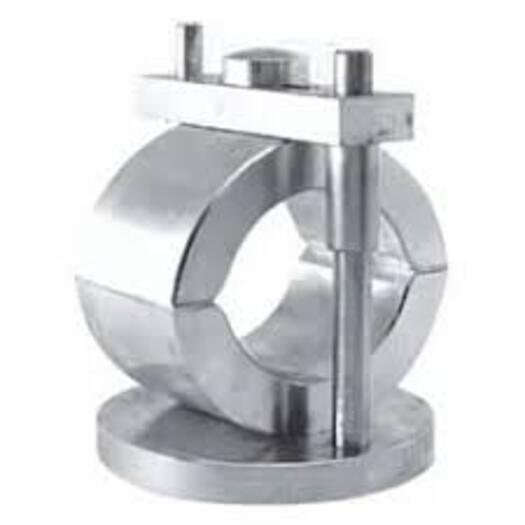

Marshal Breaking Head

Price 6000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

About Marshal Breaking Head

Marshall Breaking Head is a precision-engineered testing accessory used in the Marshall Stability Test for determining the load-bearing capacity and flow value of bituminous (asphalt) mixtures. It is designed to hold cylindrical specimens and apply compressive load through a testing machine to evaluate stability characteristics.

The apparatus consists of upper and lower cylindrical segments (test heads) with accurately machined inner curvature to accommodate standard specimens (4 inch and 6 inch diameter). The lower segment is mounted on a rigid base fitted with two vertical guide rods, while the upper segment moves smoothly along these rods using guide sleeves, ensuring proper alignment and frictionless operation.

Marshall Breaking Head is widely used in civil engineering laboratories, road construction projects, and quality control labs for testing hot mix asphalt as per international standards.

Key Features

Made from high-quality steel for durability and long service life
Precision-machined upper and lower segments
Smooth sliding mechanism with guide rods and sleeves
Available for 4" (100 mm) and 6" (150 mm) specimens
Compatible with most Marshall Stability Testing Machines
Ensures accurate load distribution during testing

Technical Specifications

Specimen Size: 4 inch (101.6 mm) / 6 inch (152.4 mm)
Material: Hardened steel / stainless steel
Standards: ASTM D6927, ASTM D5581, AASHTO T245
Type: Load frame accessory
Application: Bituminous mix testing

Applications

Marshall Stability Test of asphalt mixtures
Road construction quality control
Bitumen mix design laboratories
Research and educational institutes

Working Principle

The specimen is placed between the upper and lower segments of the breaking head and mounted on a Marshall testing machine. A compressive load is applied at a constant rate until failure, and the maximum load (stability) and deformation (flow value) are recorded.
