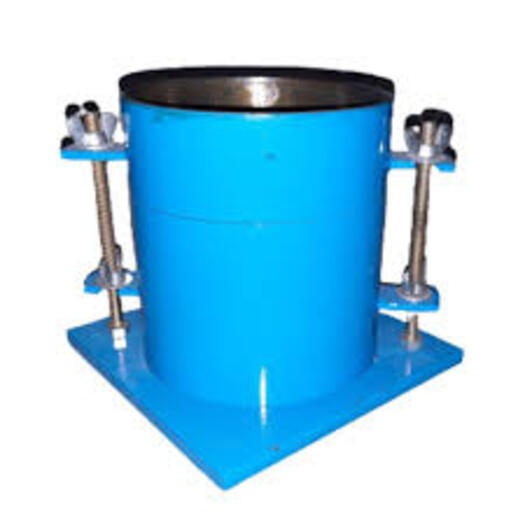

Mild Steel Marshal Compaction Mould

About Mild Steel Marshal Compaction Mould

Mild Steel Marshall Compaction Mould is a high-quality laboratory testing apparatus used for preparing bituminous (asphalt) specimens in the Marshall Stability Test. It is manufactured from premium-grade mild steel and designed to provide accurate and repeatable specimen formation for evaluating the strength and stability of asphalt mixtures.

The mould assembly typically consists of a cylindrical mould body, detachable base plate, and extension collar, ensuring proper compaction and uniform specimen size. It is suitable for use with both manual and automatic Marshall compactors.

The mould is widely used in civil engineering laboratories, road construction projects, and quality control testing facilities.

Key Features

• Made from high-grade mild steel for long service life
• Precision-machined inner surface for uniform compaction
• Corrosion-resistant finish (powder-coated / plated)
• Supplied with base plate and extension collar
• Compatible with manual & automatic Marshall compactors
• Ensures accurate and repeatable test results

Technical Specifications

• Diameter: 4 inch (101.6 mm) / 6 inch (152.4 mm)
• Material: Mild Steel / Hardened Steel
• Components: Mould body, base plate, collar
• Finish: Powder coated / plated against corrosion
• Standards: ASTM D6926, ASTM D1559, AASHTO T245, EN 12697-10
• Weight: Approx. 35 kg depending on size

Applications

• Preparation of Marshall specimens for asphalt testing
• Road construction and pavement design testing
• Bitumen mix design laboratories
• Quality control in infrastructure projects

Working Principle

The hot mix asphalt is placed inside the mould and compacted using a Marshall compactor with a specified number of blows. The mould ensures uniform shape and density, enabling accurate determination of stability and flow values.
