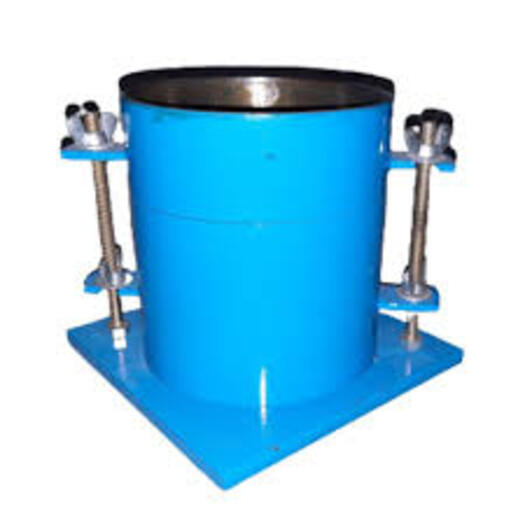

Mild Steel Marshal Compaction Mould

Name: Mild Steel Marshal Compaction Mould
Brand: Sami Lab Tek
Price: 1500.0 INR
Availability: InStock

Price 1500.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Mild Steel Marshal Compaction Mould Specification

Usage
Laboratory Testing of Asphalt Mixes

Material
Mild Steel

Rust Resistance
Yes

Height
127 mm (5 inch)

Type
Marshal Compaction Mould

Inner Diameter
101.6 mm (4 inch)

Shape
Cylindrical

Parts Included
Mould Body, Collar, Base Plate

Weight
Approx. 7-9 kg

Application
Bituminous Mix Compaction

Surface Finish
Machined

About Mild Steel Marshal Compaction Mould

Mild Steel Marshall Compaction Mould is a high-quality laboratory testing apparatus used for preparing bituminous (asphalt) specimens in the Marshall Stability Test. It is manufactured from premium-grade mild steel and designed to provide accurate and repeatable specimen formation for evaluating the strength and stability of asphalt mixtures.

The mould assembly typically consists of a cylindrical mould body, detachable base plate, and extension collar, ensuring proper compaction and uniform specimen size. It is suitable for use with both manual and automatic Marshall compactors.

The mould is widely used in civil engineering laboratories, road construction projects, and quality control testing facilities.

Key Features

Made from high-grade mild steel for long service life
Precision-machined inner surface for uniform compaction
Corrosion-resistant finish (powder-coated / plated)
Supplied with base plate and extension collar
Compatible with manual & automatic Marshall compactors
Ensures accurate and repeatable test results

Technical Specifications

Diameter: 4 inch (101.6 mm) / 6 inch (152.4 mm)
Material: Mild Steel / Hardened Steel
Components: Mould body, base plate, collar
Finish: Powder coated / plated against corrosion
Standards: ASTM D6926, ASTM D1559, AASHTO T245, EN 12697-10
Weight: Approx. 35 kg depending on size

Applications

Preparation of Marshall specimens for asphalt testing
Road construction and pavement design testing
Bitumen mix design laboratories
Quality control in infrastructure projects

Working Principle

The hot mix asphalt is placed inside the mould and compacted using a Marshall compactor with a specified number of blows. The mould ensures uniform shape and density, enabling accurate determination of stability and flow values.

Exceptional Material and Design Quality

Constructed from mild steel and finished with a machined surface, this Marshal Compaction Mould offers both durability and precision. Its cylindrical shape ensures uniform compaction, while rust resistance extends its operational lifespan, making it ideal for repeated laboratory use.

Precise and Standardized Testing

With an inner diameter of 101.6 mm and a height of 127 mm, the mould meets standard testing requirements for bituminous mixes. The well-designed collar, base plate, and mould body collectively guarantee accurate and repeatable compacted specimens essential for asphalt research.

Comprehensive Application in Asphalt Testing

This mould is specifically crafted for laboratory compaction of bituminous mixes, helping laboratories, service providers, and manufacturers ensure asphalt quality. Its reliable performance supports quality control processes and helps meet construction standards in road work and infrastructure projects.

FAQ's of Mild Steel Marshal Compaction Mould:

Q: How is the Marshal Compaction Mould used in laboratory testing?

A: The Marshal Compaction Mould is employed to compact bituminous asphalt mixes into cylindrical specimens under controlled conditions. It ensures uniformity and allows for accurate testing of various properties like stability and flow, commonly needed for evaluating asphalt performance.

Q: What parts are included with the Mild Steel Marshal Compaction Mould?

A: This compaction mould comes complete with the main mould body, a detachable collar, and a base plate. These components collectively facilitate easy assembly, specimen removal, and cleaning after each test.

Q: When should I use this mould during asphalt mix testing processes?

A: You should use the Marshal Compaction Mould during the sample preparation phase of laboratory asphalt testing, specifically when you need to create standardized compacted specimens for compliance and quality control assessments.

Q: Where is this type of compaction mould commonly utilized?

A: It is commonly used in civil engineering laboratories, asphalt manufacturing quality control labs, and research institutions focused on road construction materials and methodologies.

Q: What benefits does a machined surface finish provide?

A: A machined surface finish offers enhanced precision and dimensional accuracy for the mould, resulting in consistent specimen sizes and ensuring reliable and repeatable test outcomes.

Q: Is the mould resistant to rust, and why is this important?

A: Yes, the mould is rust-resistant, which is essential to prolong its service life and maintain its dimensional stability, even with frequent cleaning and usage in environments exposed to moisture.

Q: How does the weight of the mould contribute to its performance?

A: With a weight range of 7-9 kg, the mould offers stability during the compaction process, helping minimize displacement or movement that could affect the accuracy of the test results.
